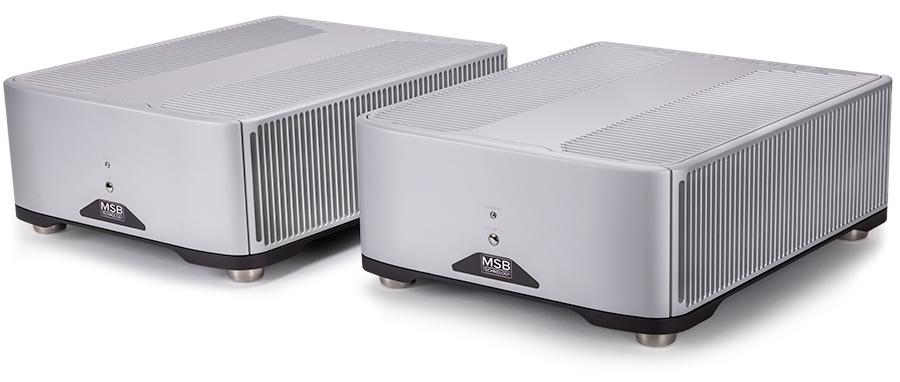

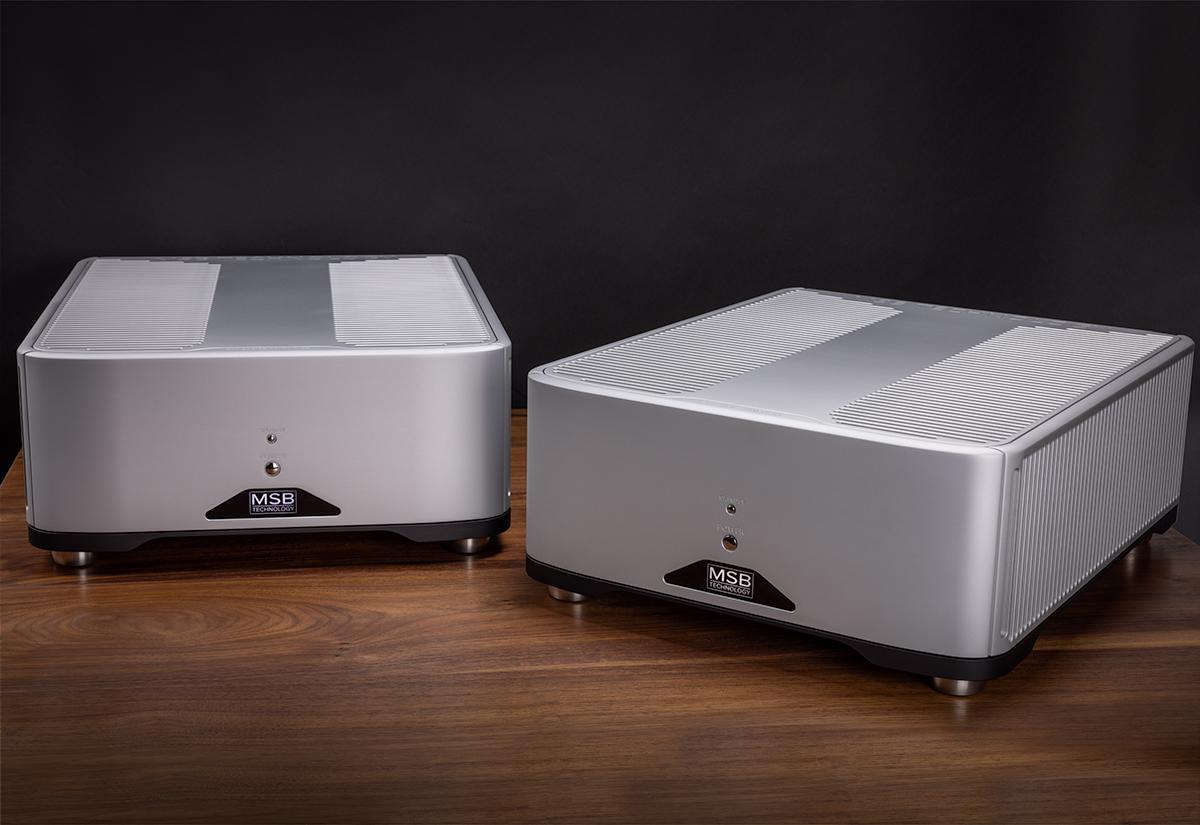

MSB The M205

Hinta

75 000,00

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

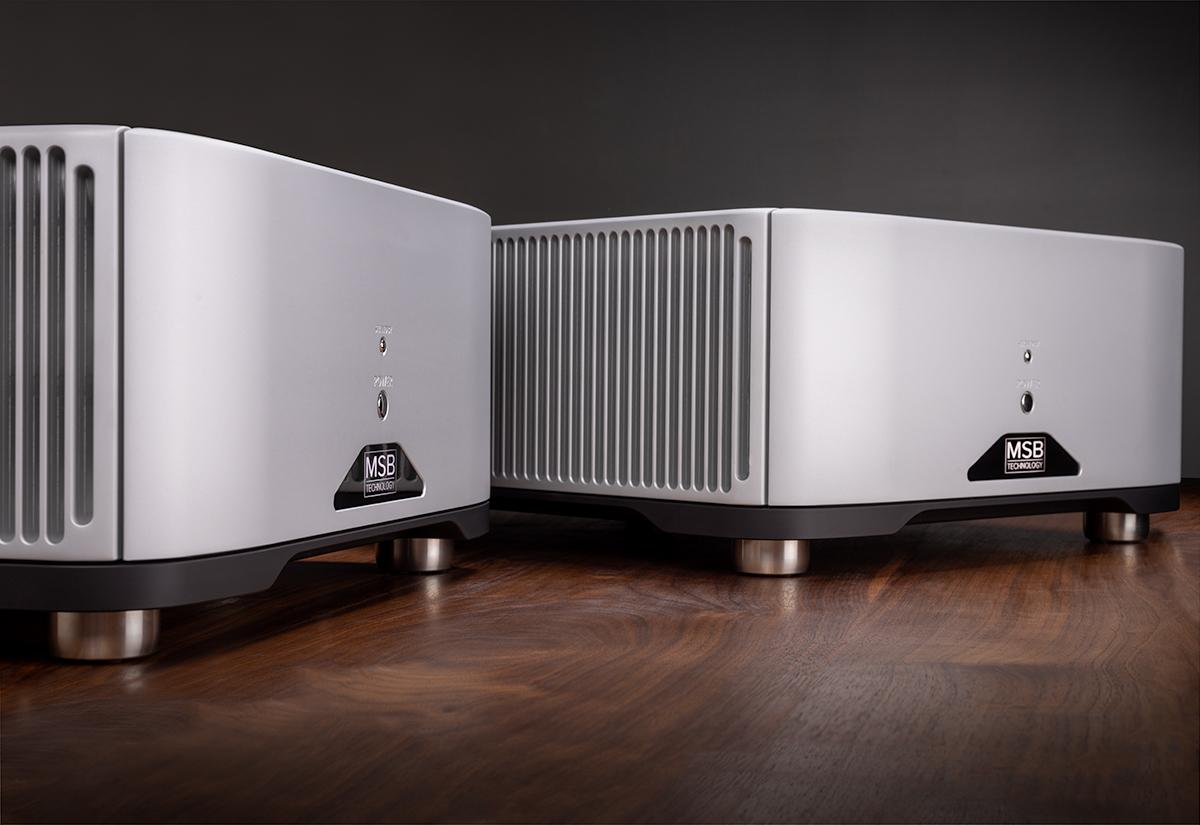

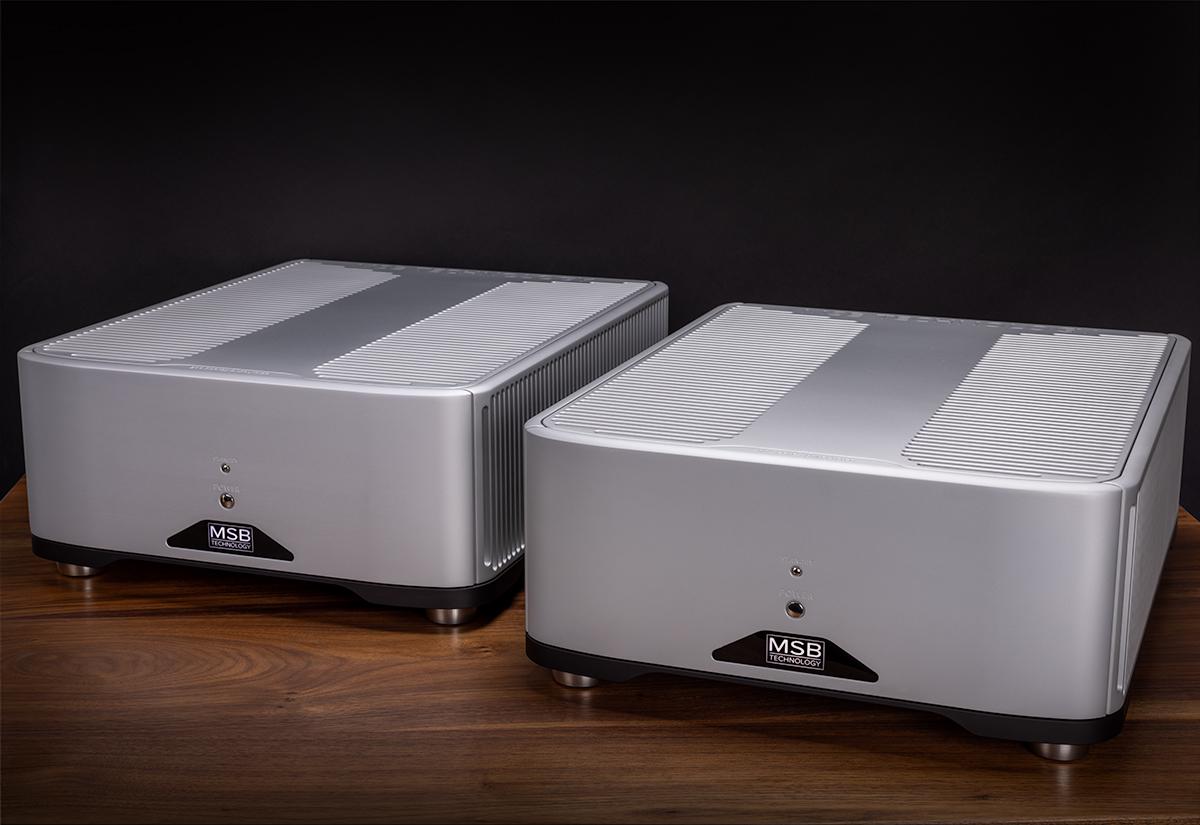

M205 on MSB:n uuden sukupolven monopäätevahvistin, joka on enemmän kuin sukua yksille maailman parhaista  vahvistimista – The S500- ja The M500-isovelimalleista.

Tinkimätön toteutus. Jatkuva teho 1 x 220W 8ohm ja 1 x 400W 4ohm. Hetkellistä musiikkitehoa reippaasti enemmän. Modulaarinen rakenne. Kaikki komponenttivalinnat tehty kahden asian ehdoilla – äänenlaatu ja kestävyys. Class A-luokan ottoaste. Ultratason suorituskyky. Ei negatiivista takaisinkytkentää. Pidäkkeetön dynamiikka. Uskomaton herkkyys musiikin nyansseille. Läpivalaiseva, hologrammimainen äänikuva.

Balansoidut XLR-tuloliitännät. Mahdollisuus optimoida sisääntuloimpedanssi – 75ohm / 300ohm / 1200ohm.

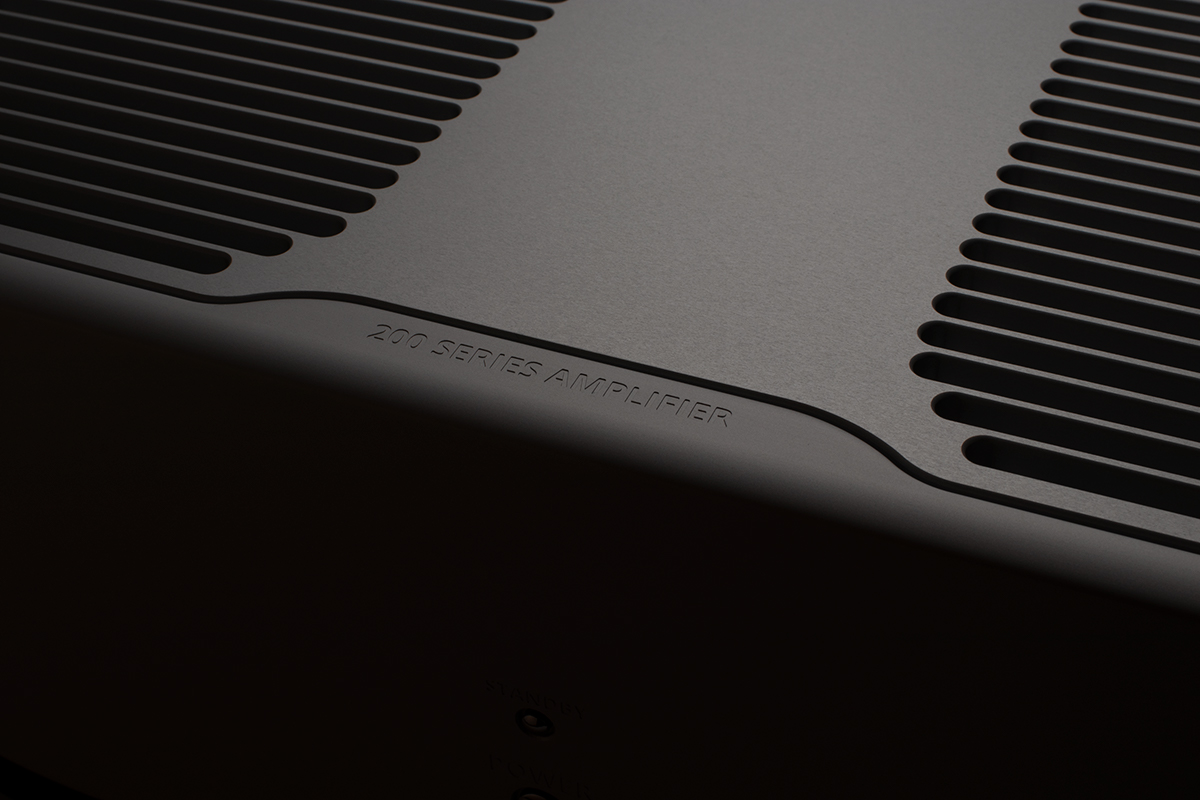

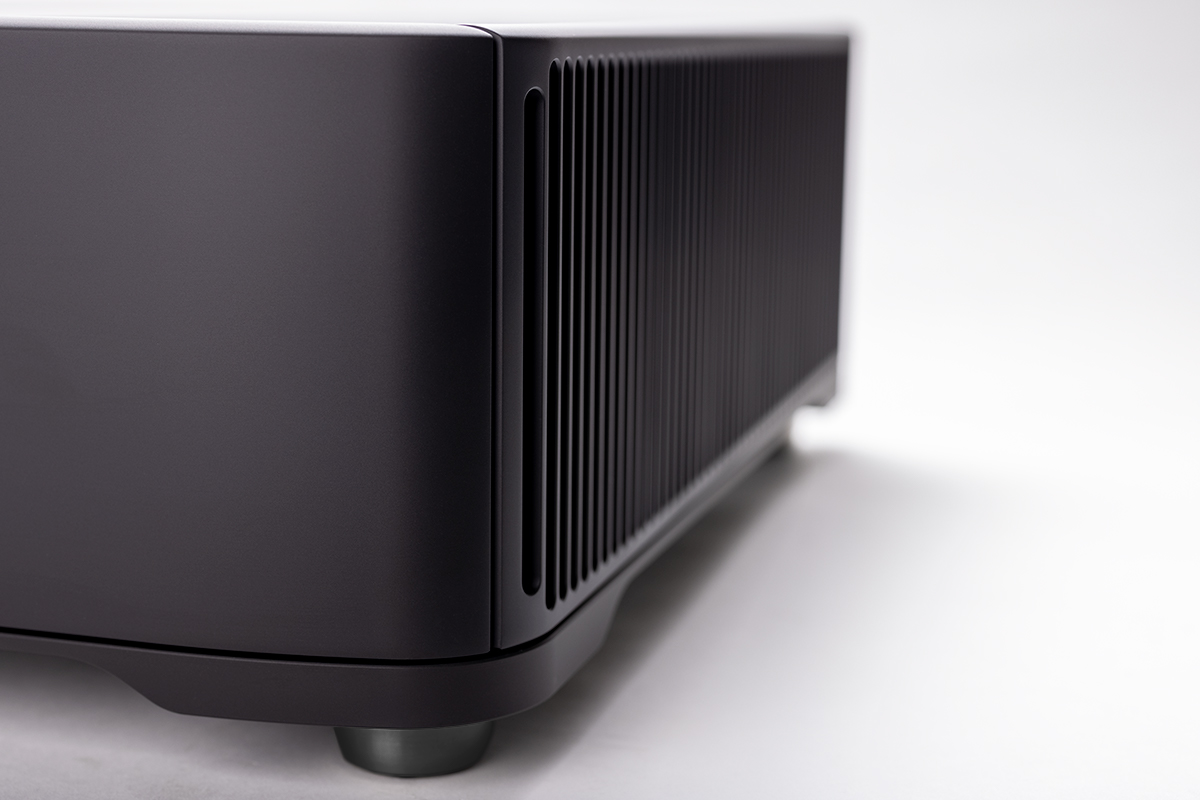

Viimeistelyt hopea ja musta.

Hinta/pari. Saatavissa myös kappaleittain 37500€/kpl



Innovation. Redoubled.

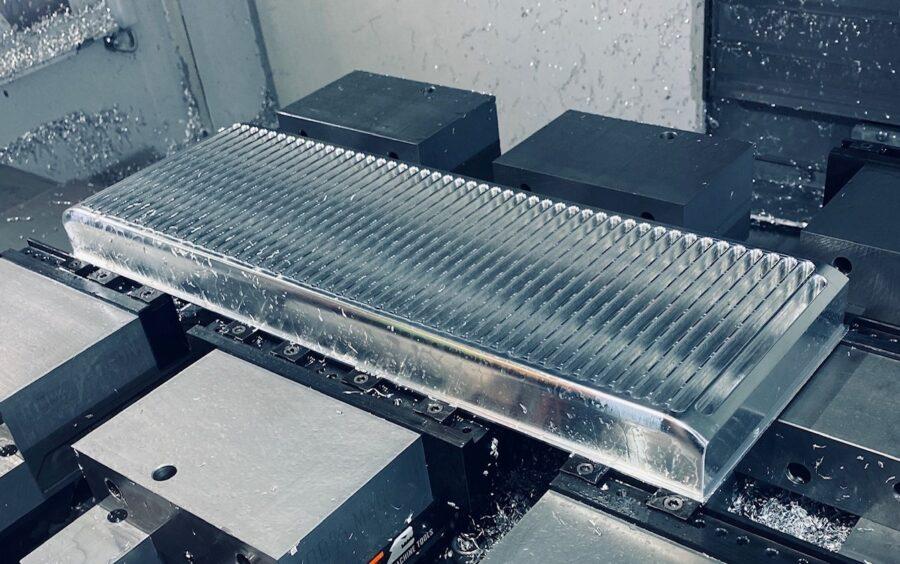

After the resounding success of the S202 Stereo Amplifier, there were many requests for an improved mono amplifier in the same compact chassis. The M205 refines the S202’s already incredible performance with an upgraded input stage and a doubling of the power supply transformers and capacitors. The result is a spectacular increase in sound quality with increased sound-stage definition, vocal realism, and instrument solidity available from the very first notes. The M205 perfectly complements our DAC’s ultra high dynamic range with optimized architecture in the critical areas of audio performance, power supplies, and ultra low-noise design. The fully modular cores, matched impedance input stages and billet CNC chassis’ result in the highest value mono amplifiers we’ve ever created.

Power without limits.

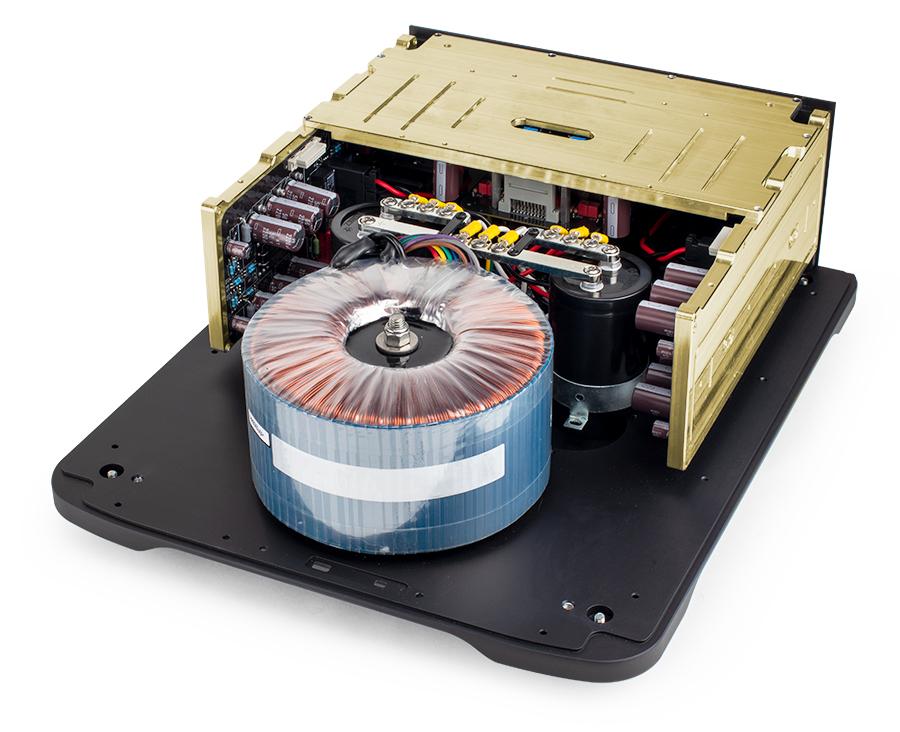

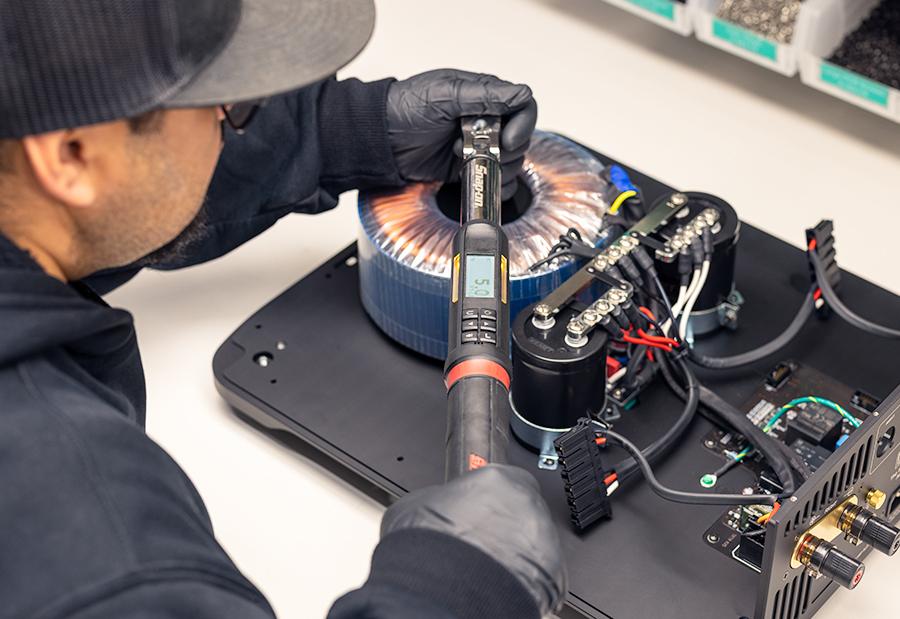

Thanks to two massive custom low-noise high-current toroidal transformers and rugged high-current output buffers, the M205’s provide a transparent, holographic listening experience that’s completely fatigue free. This ensures that the amplifiers present consistent performance even with difficult speakers.

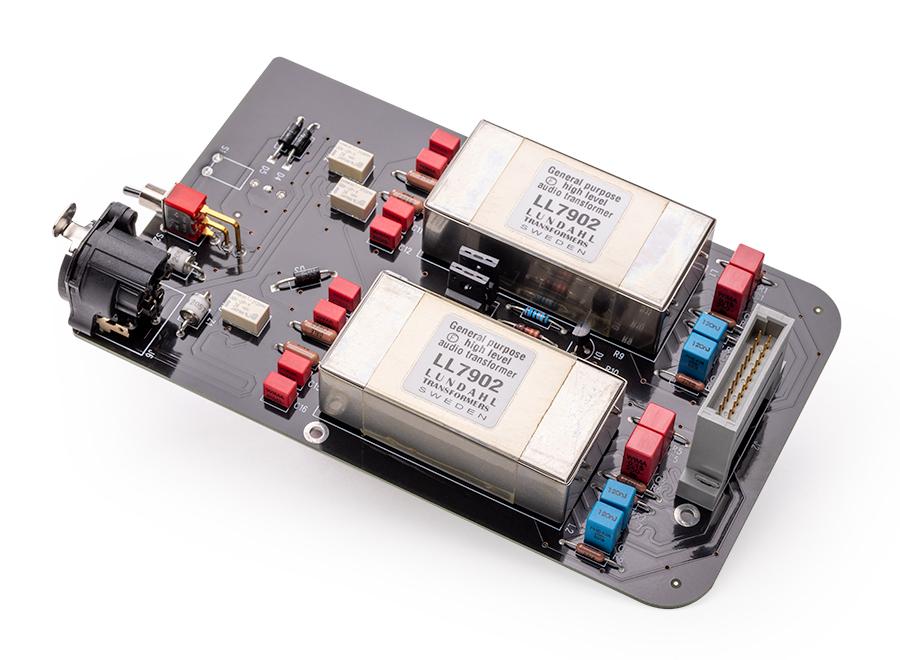

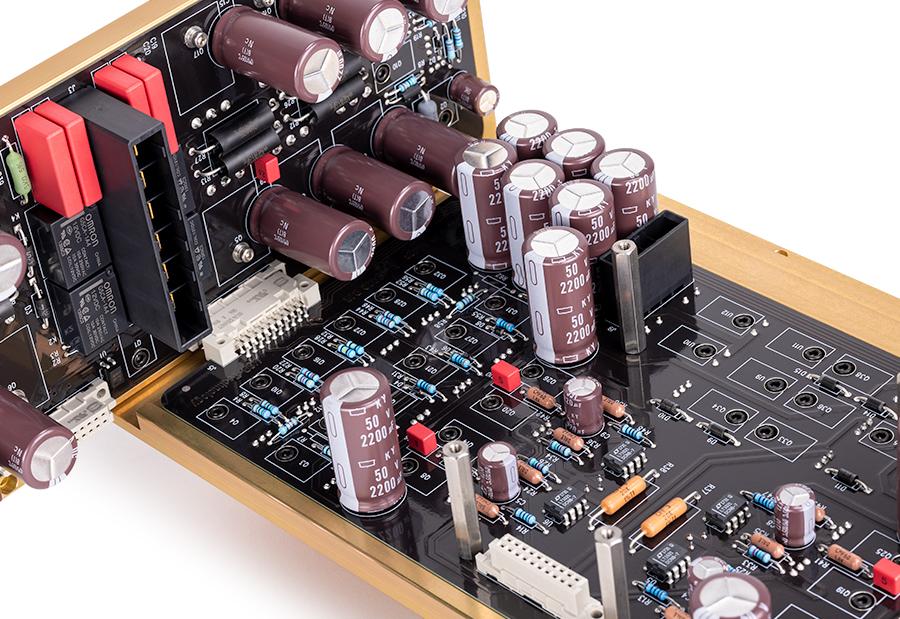

Input Architecture.

The M205 features a discrete design with a Class-A matched impedance input stage. The result is a product with minimized signal reflections, input noise, and distortion, while also maximizing power transfer and dynamic range in a zero negative feedback design. All components were meticulously chosen for their sonic performance and longevity, ensuring your amplifier is built to last.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

The M205 Mono Amplifier
(per mono amplifier)

Static Power Consumption 90 Watts On
Standby power less than 2 watts
Operating Voltage Range 120/240V (Auto switching)
100V (Fixed)
Fuse 1/4″x1-1/4″ 10A 250V Slow Blow

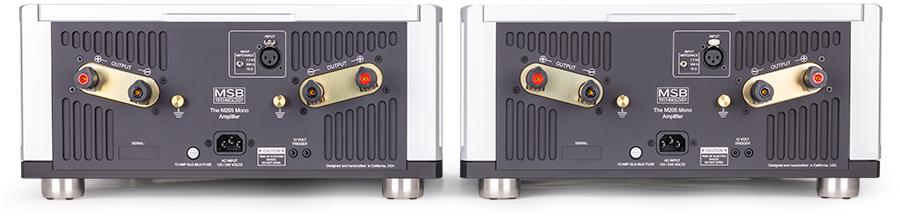

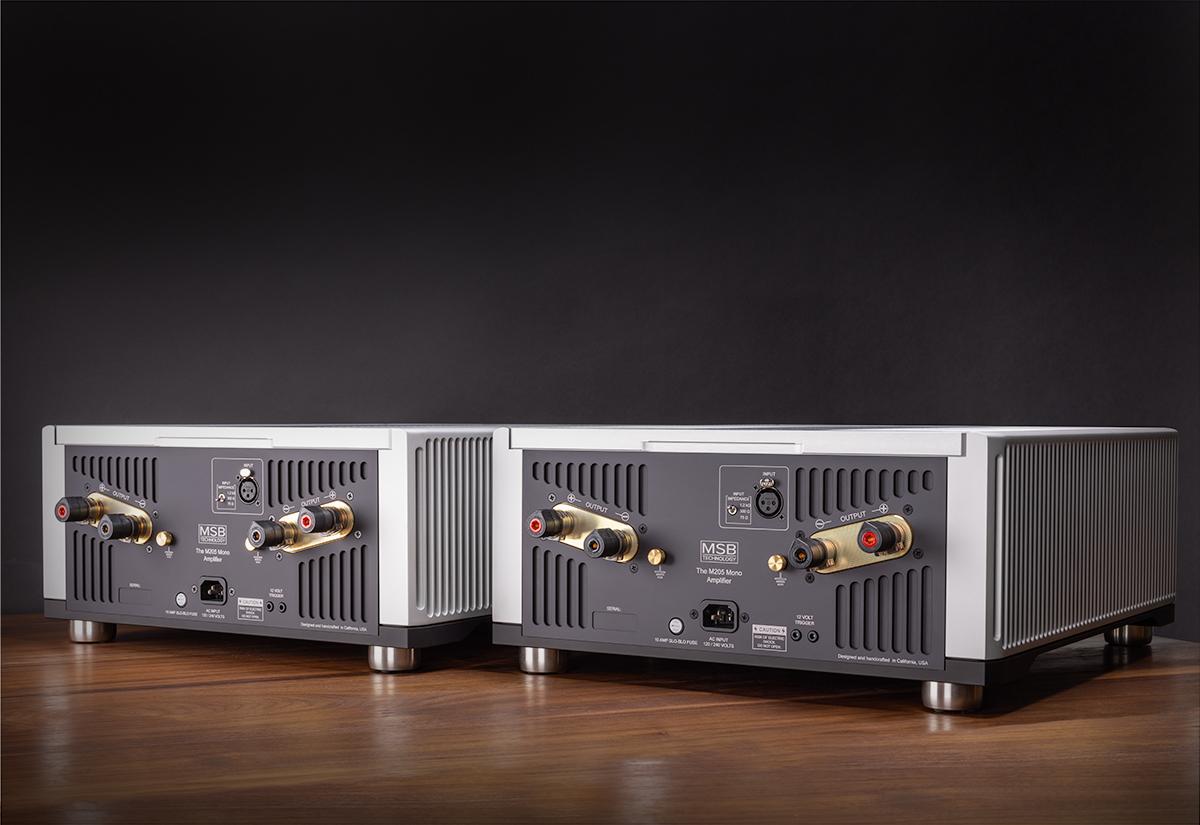

Input 1x XLR Input
Output 2x Binding post set per channel

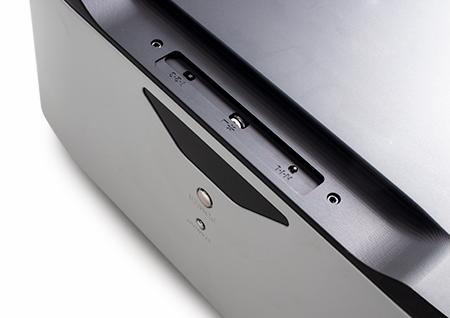

Controls Input Impedance Switch

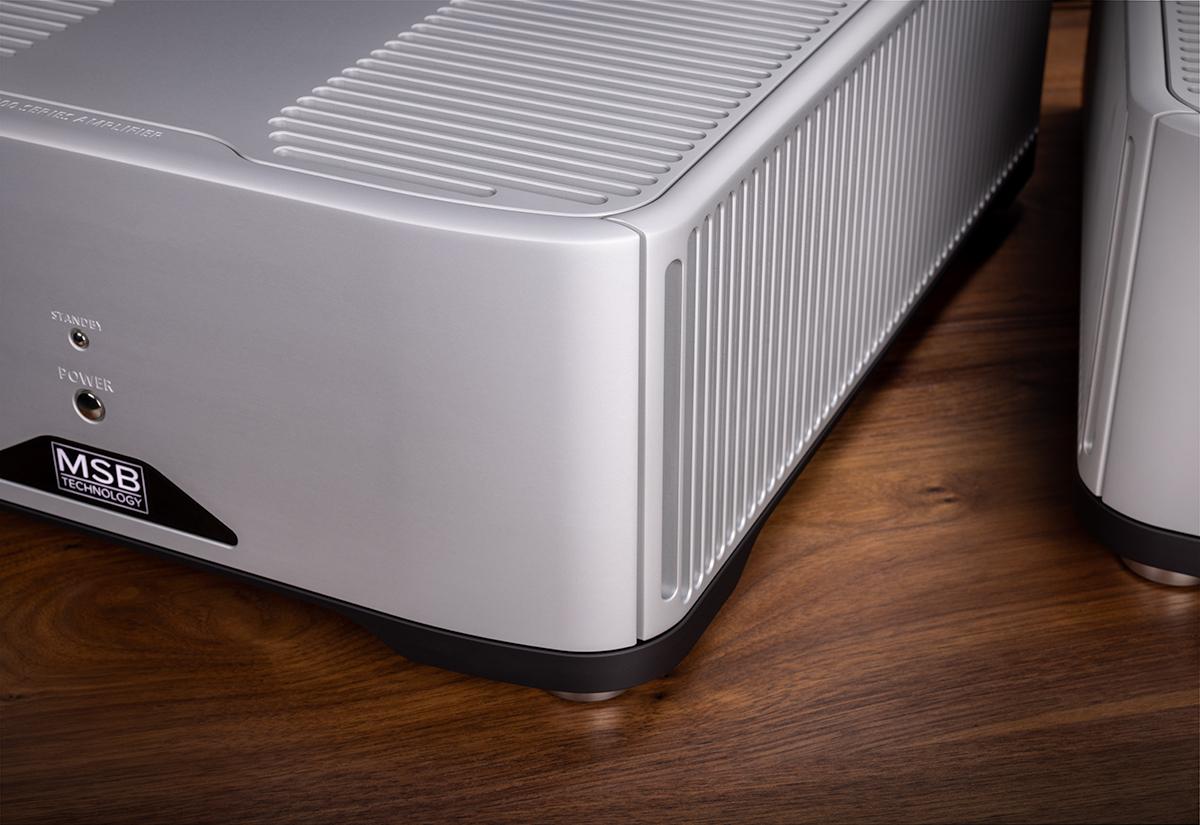

On/Off Button

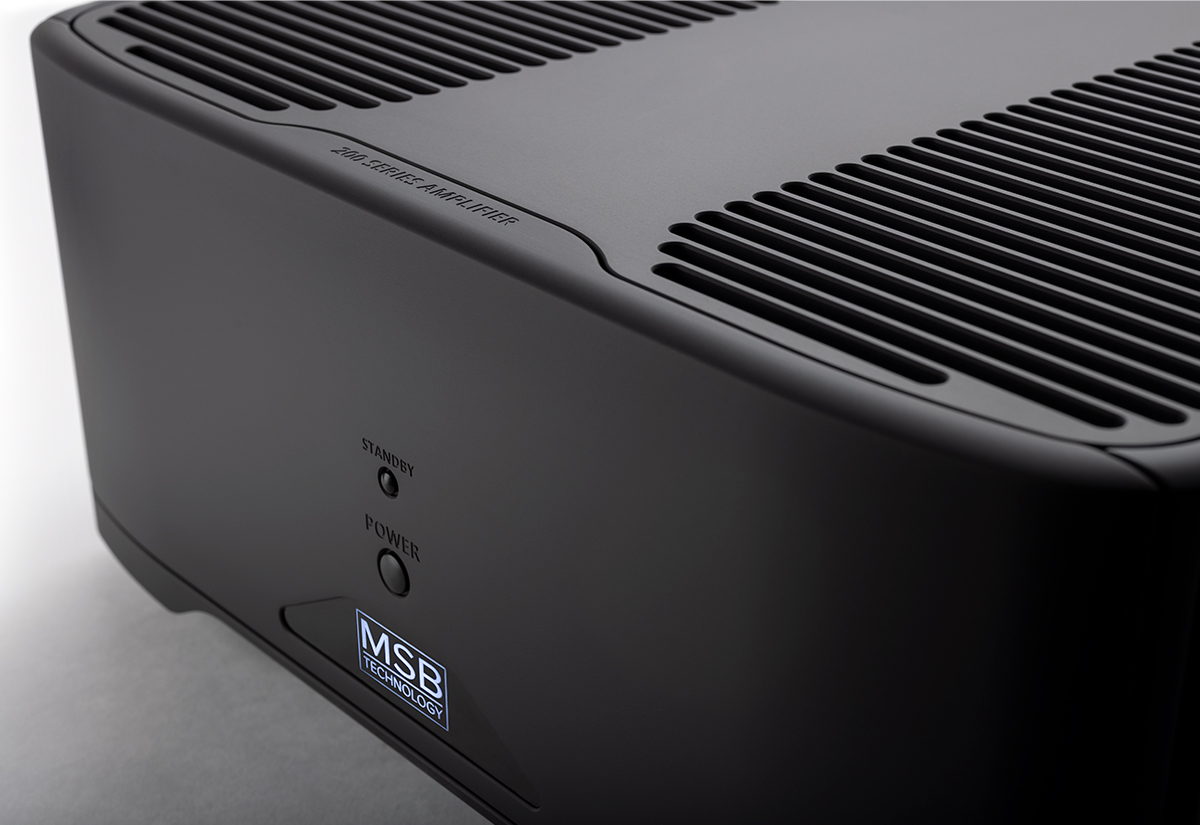

Standby Button
Display Dimmer
12V Mode Switch
2x MSB 12V trigger port
Continuous Power Output (8Ω) < 1% distortion 220 W
Continuous Power Output (4Ω) < 1% distortion 400 W
Dual Bi-Amp Continuous Power Output (8Ω) < 1% distortion 200W
Dual Bi-Amp Continuous Power Output (4Ω) < 1% distortion 380W
Frequency Response (20 to 20kHz) ±0.03dB
Signal to Noise (20 to 22kHz) >130dB (>133dBA)
Equivalent Input Noise (22kHz BW) 0.65μV
Gain (150Ω source impedance) 23.8dB
Input Impedance (User Selectable) 75Ω / 300Ω / 1.2kΩ
Output Impedance (20 to 20kHz) 0.01Ω
Topology
Input/Gain Stage – Class-A
– Double balanced
– Impedance matched
– Fully discrete
– Independent power
Output Stage – Class-AB
– Balanced
– Medium bias
– Current gain only
Chassis Dimensions (Per Mono Block)
Width: 16 in (404 mm)
Depth: 19 in (483 mm)
Height: 6.5 in (165 mm) Without Feet
7 in (178 mm) With Feet
Weight: 90 lbs (41 kg)

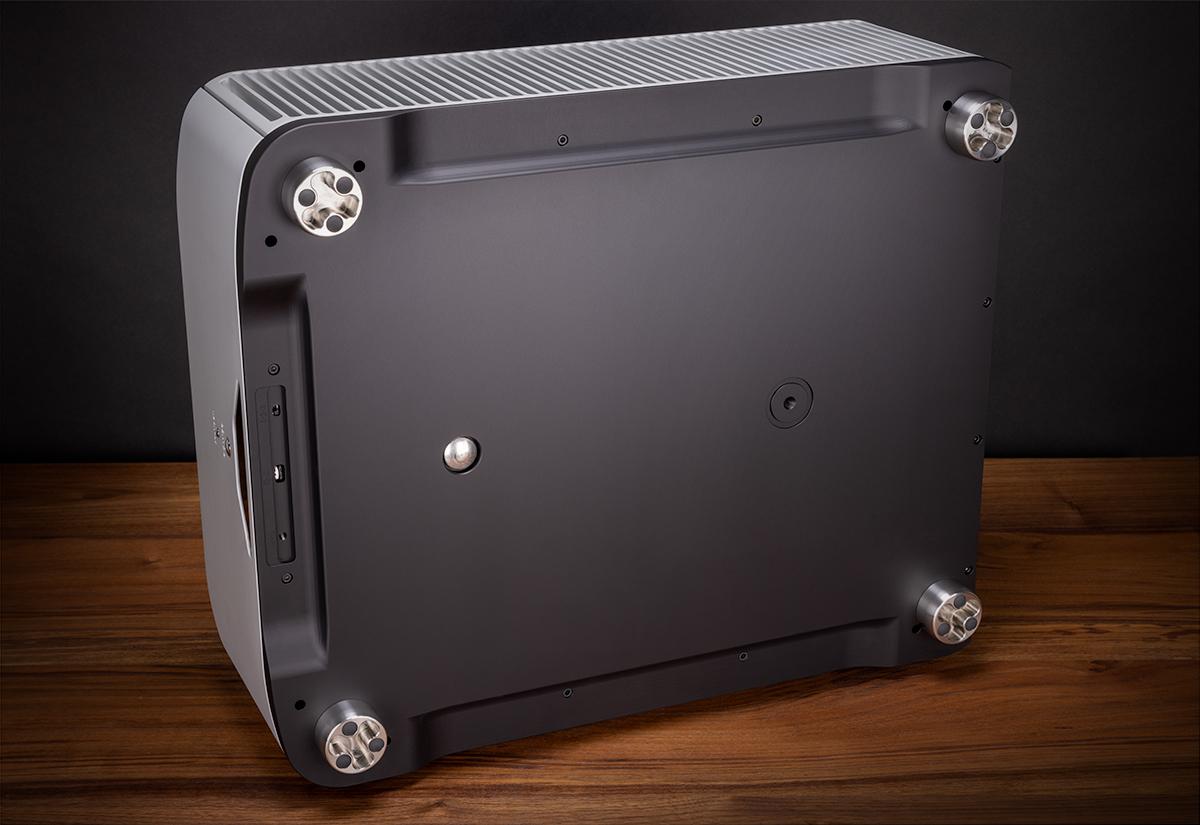

Product Feet: M6X1 Thread
3 or 4 Foot Configuration
Shipping Dimensions (Per Mono Block)
Width: 24 in (610 mm)
Depth: 28.25 in (718 mm)
Height: 16.5 in (419 mm)
Weight: 137 lbs (62 kg)
Included Accessories
User Manual
IEC Power Cord
