McIntosh C22 MkV

Hinta

7 690,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

McIntosh C22 MkV on uusin versio legendaarisesta putkietuvahvistimesta.

Laadukkaasti toteutettu putkiaste koostuu yhdestä 12AT7- ja viidestä 12AX7A-putkesta. Tinkimätön äänenvoimakkuussäädin takaa tarkan kanavaerotuksen ja äänenlaadun vuodesta toiseen. Balansoidut ja RCA-tulo-ja lähtöliitännät.

Laadukas MM/MC-levysoitinaste säädettävin kapasitanssi- ja impedanssiaskelin. Laadukas, isotehoinen kuulokevahvistin valittavalla HXD-piirillä.

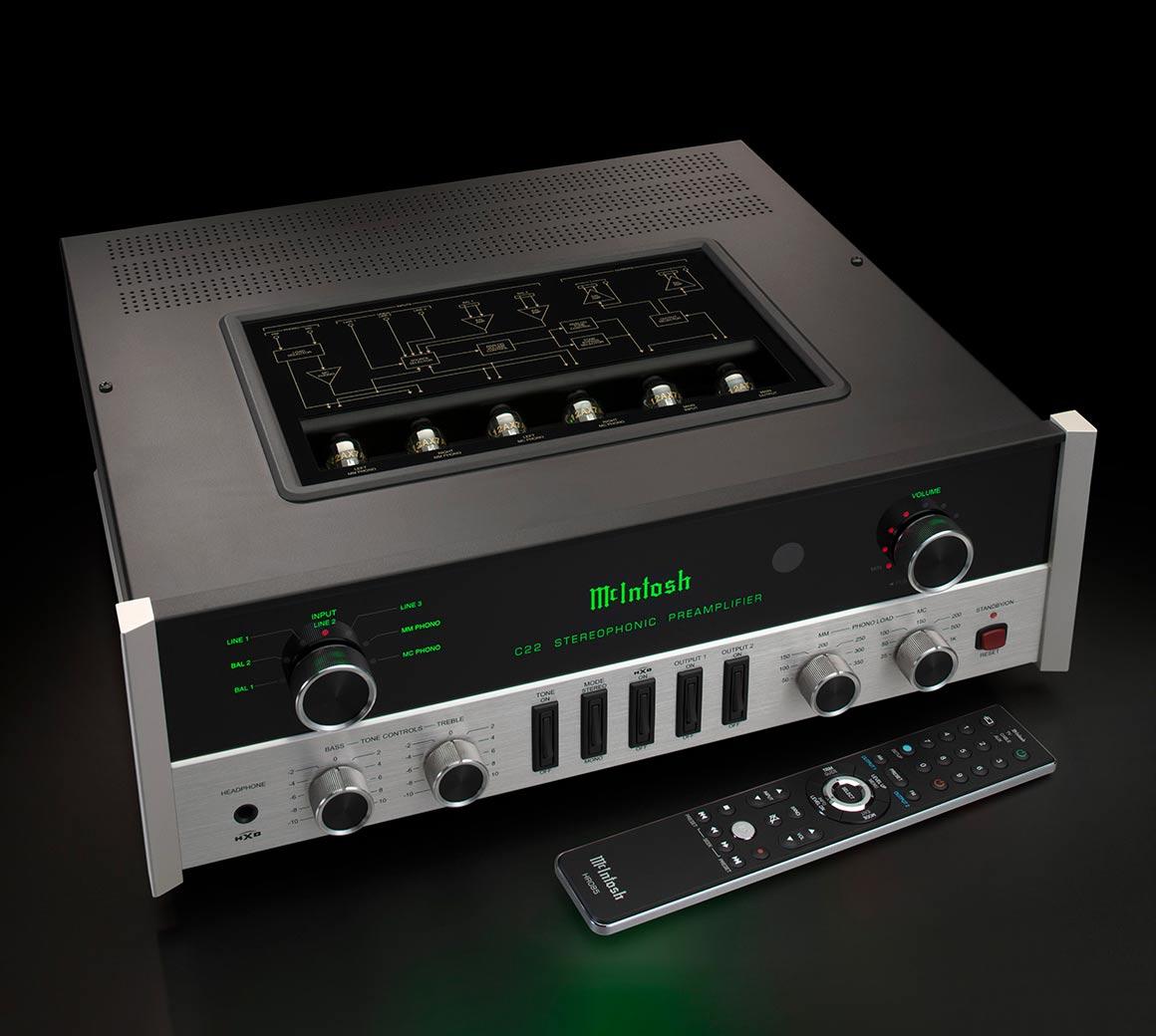

Kauko-ohjain. Paino 11,3kg.

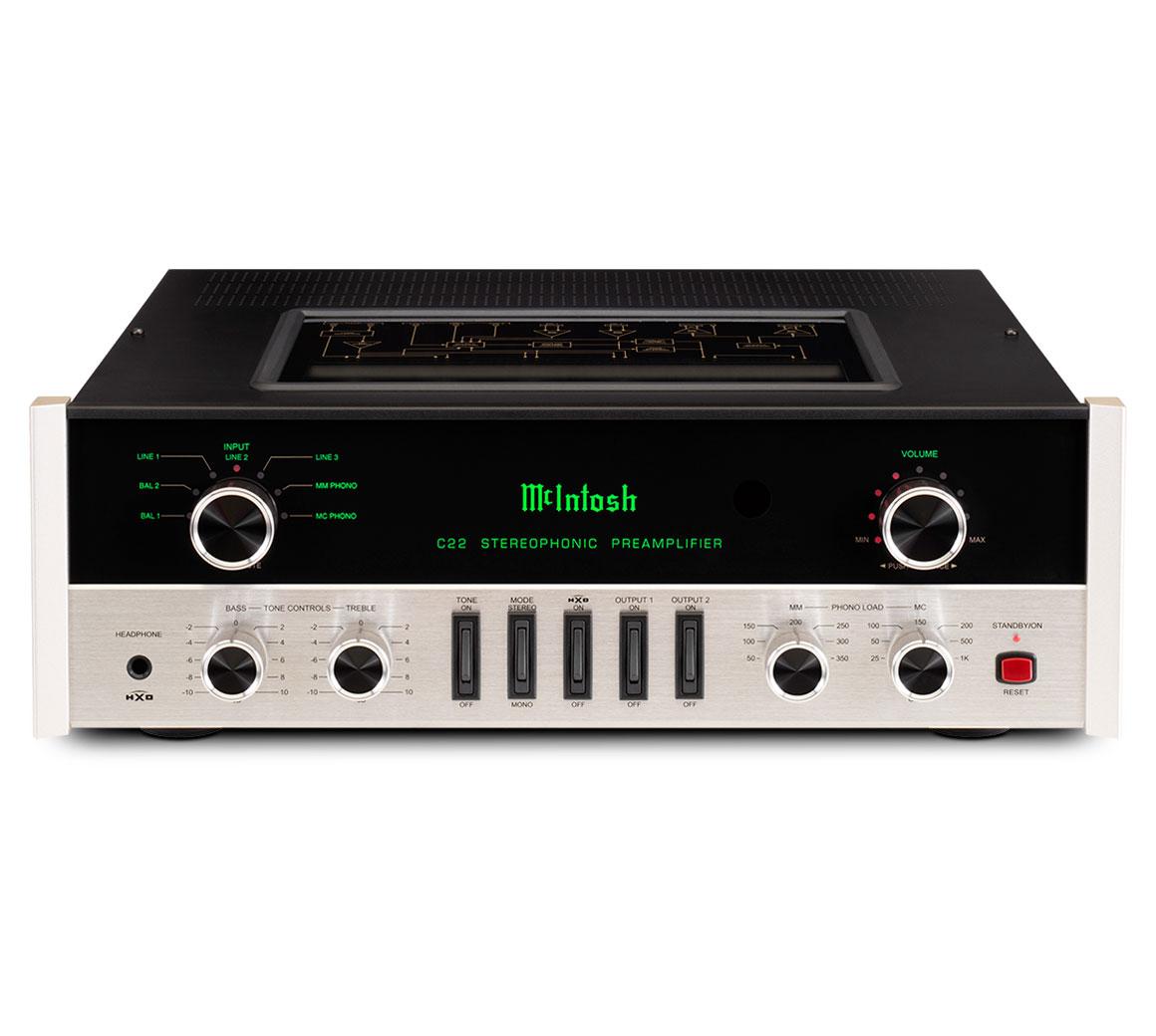

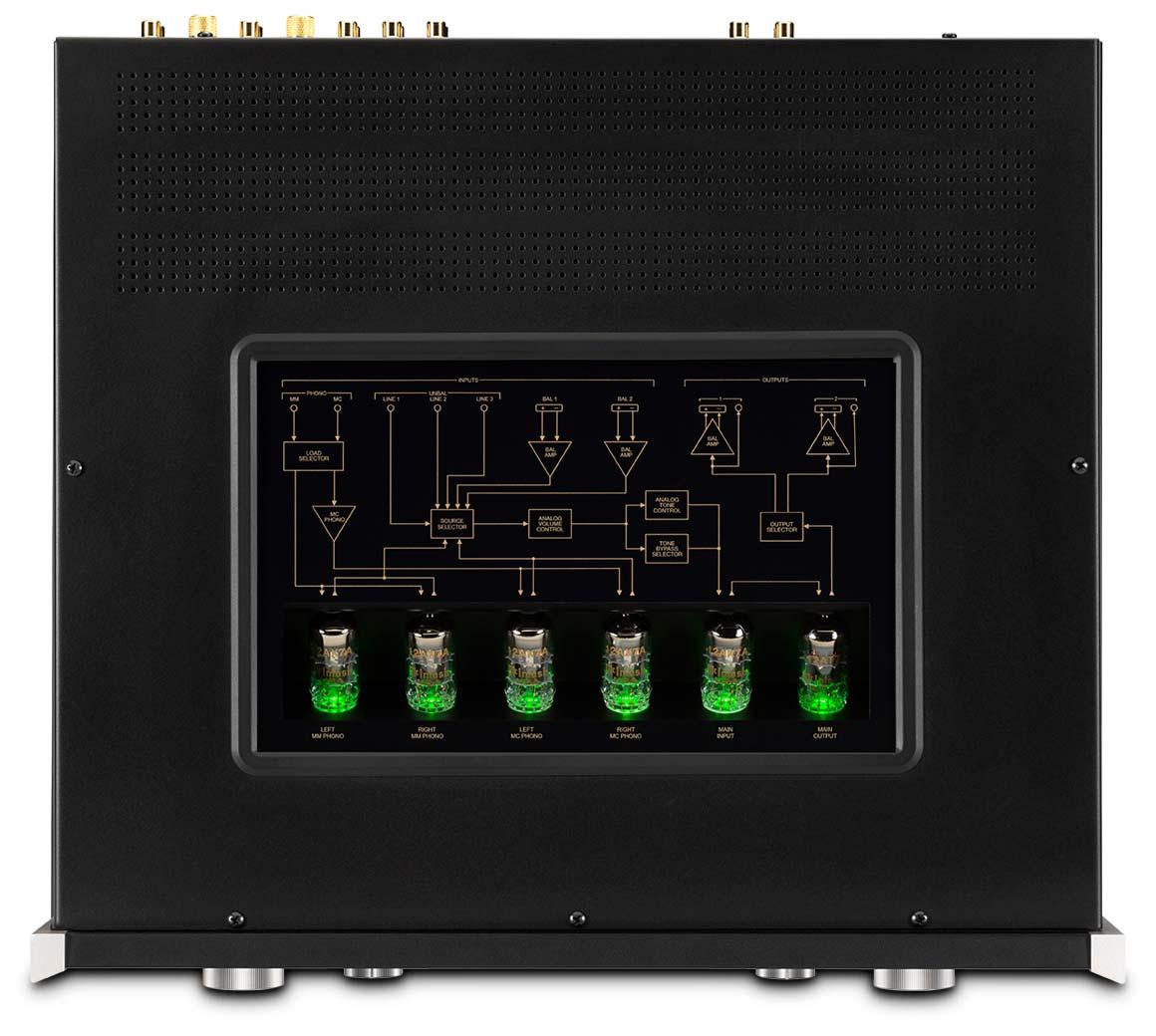

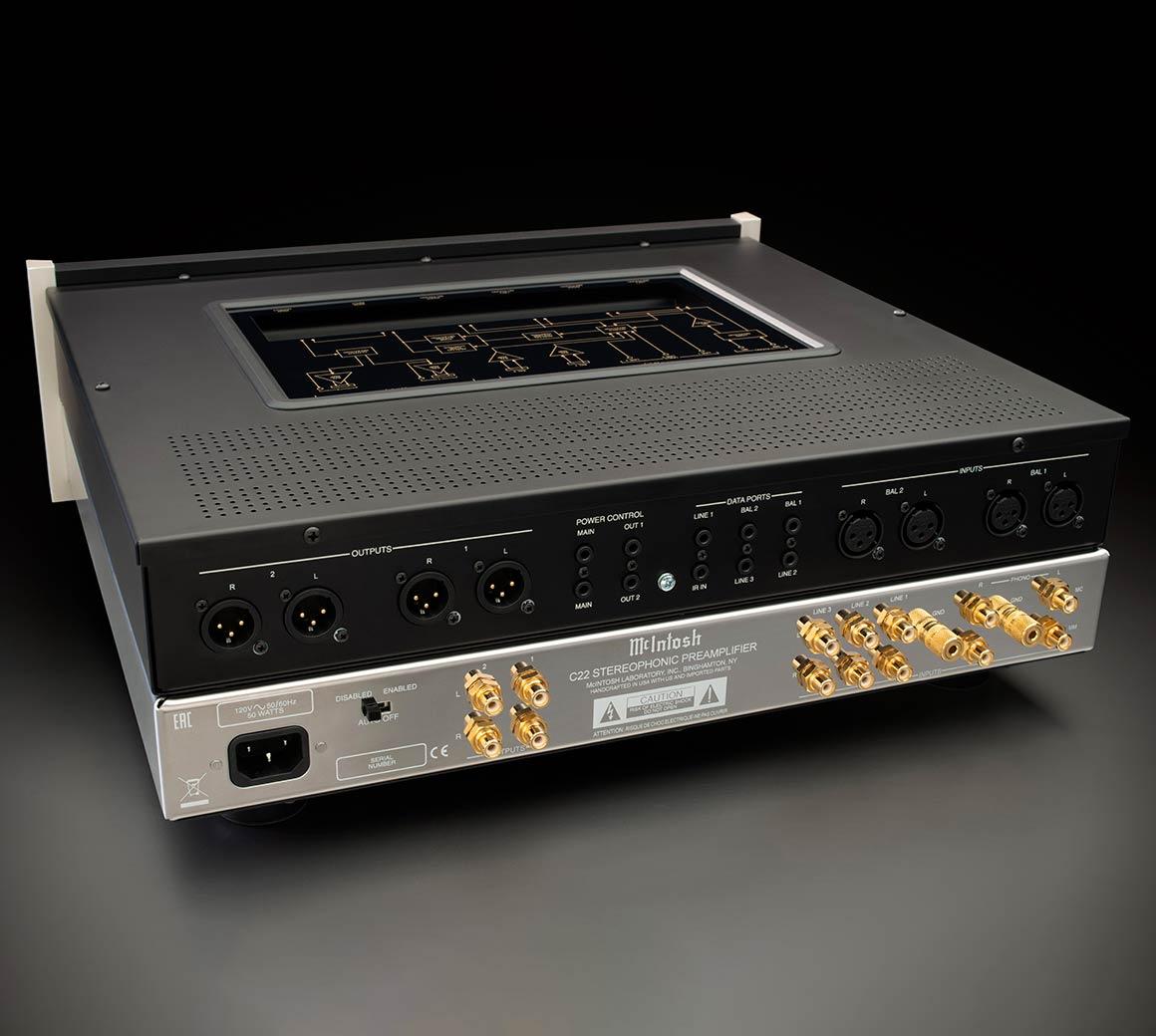

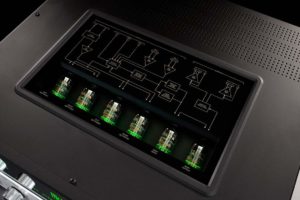

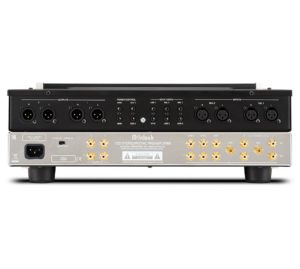

The C22 Mk V uses one 12AT7 and five 12AX7A vacuum tubes which can be seen through a glass panel located on the top of the preamp. Knobs and rocker switches operate all control functions while modern LED lights indicate input selection and volume level. The C22 Mk V has two balanced inputs, three unbalanced inputs, one Moving Coil and one Moving Magnet phono inputs, for a total of seven inputs. There are two pairs each of balanced and unbalanced output connections; the two outputs allow sending signals to two separate power amplifiers.

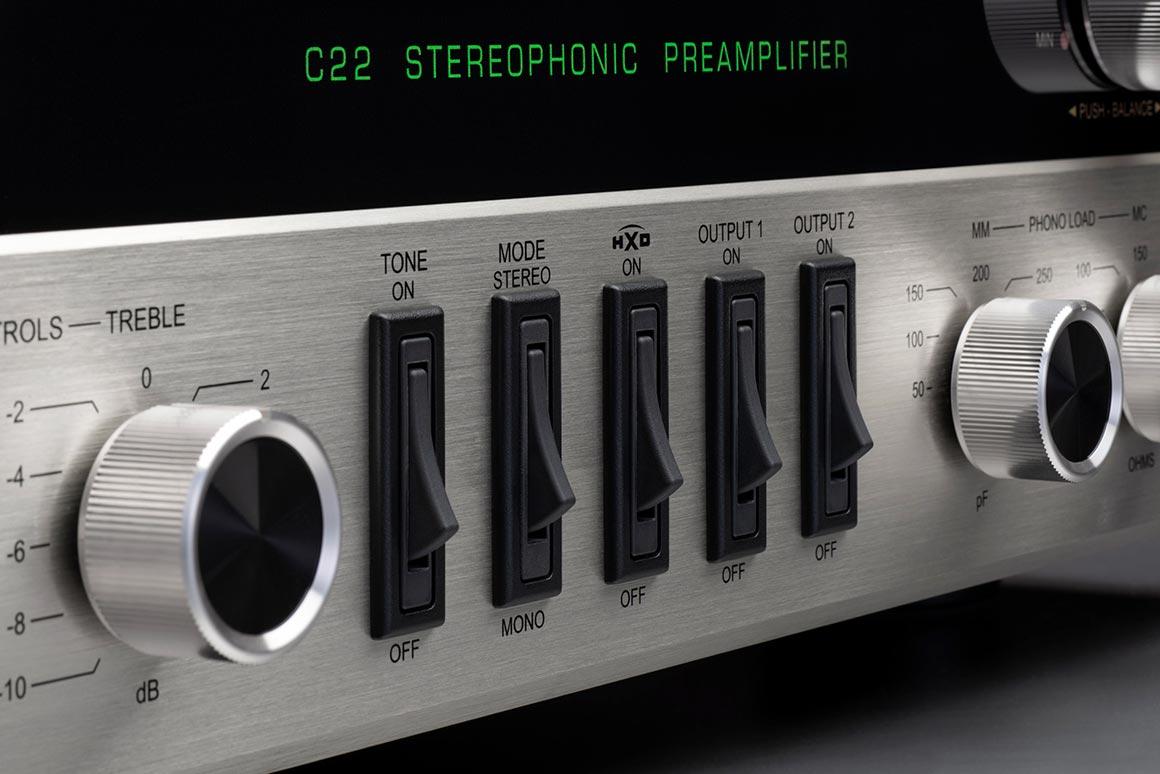

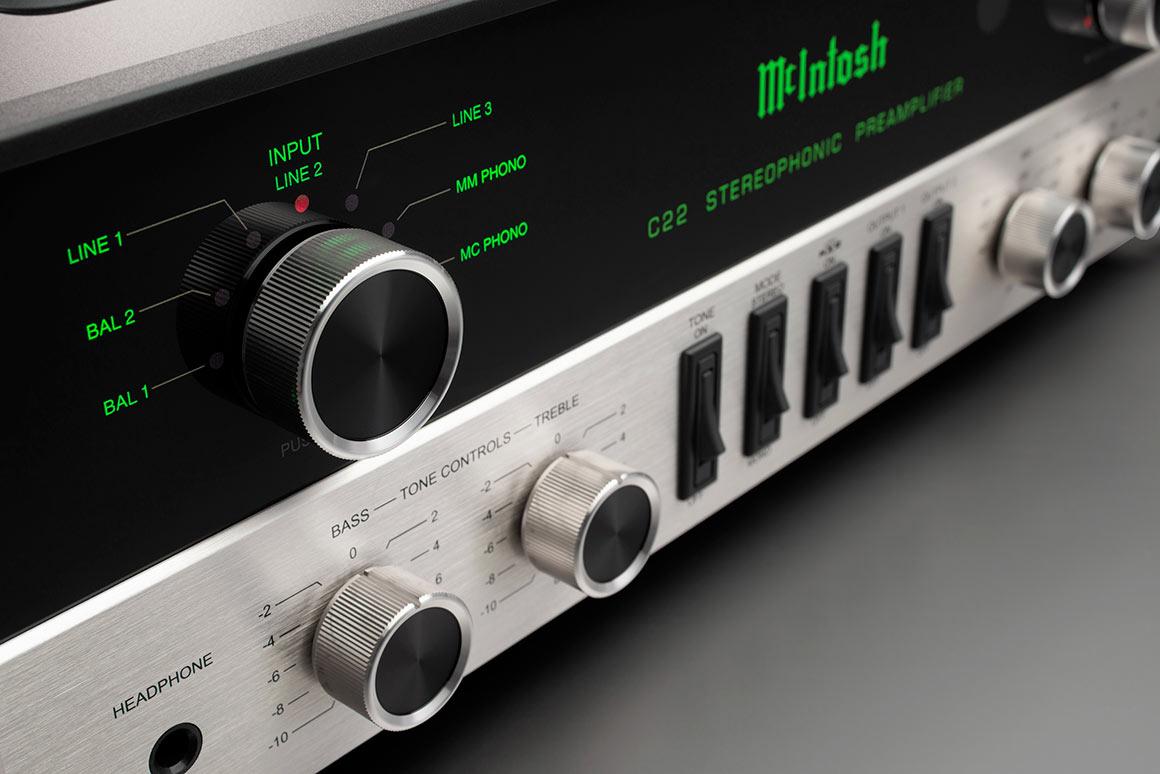

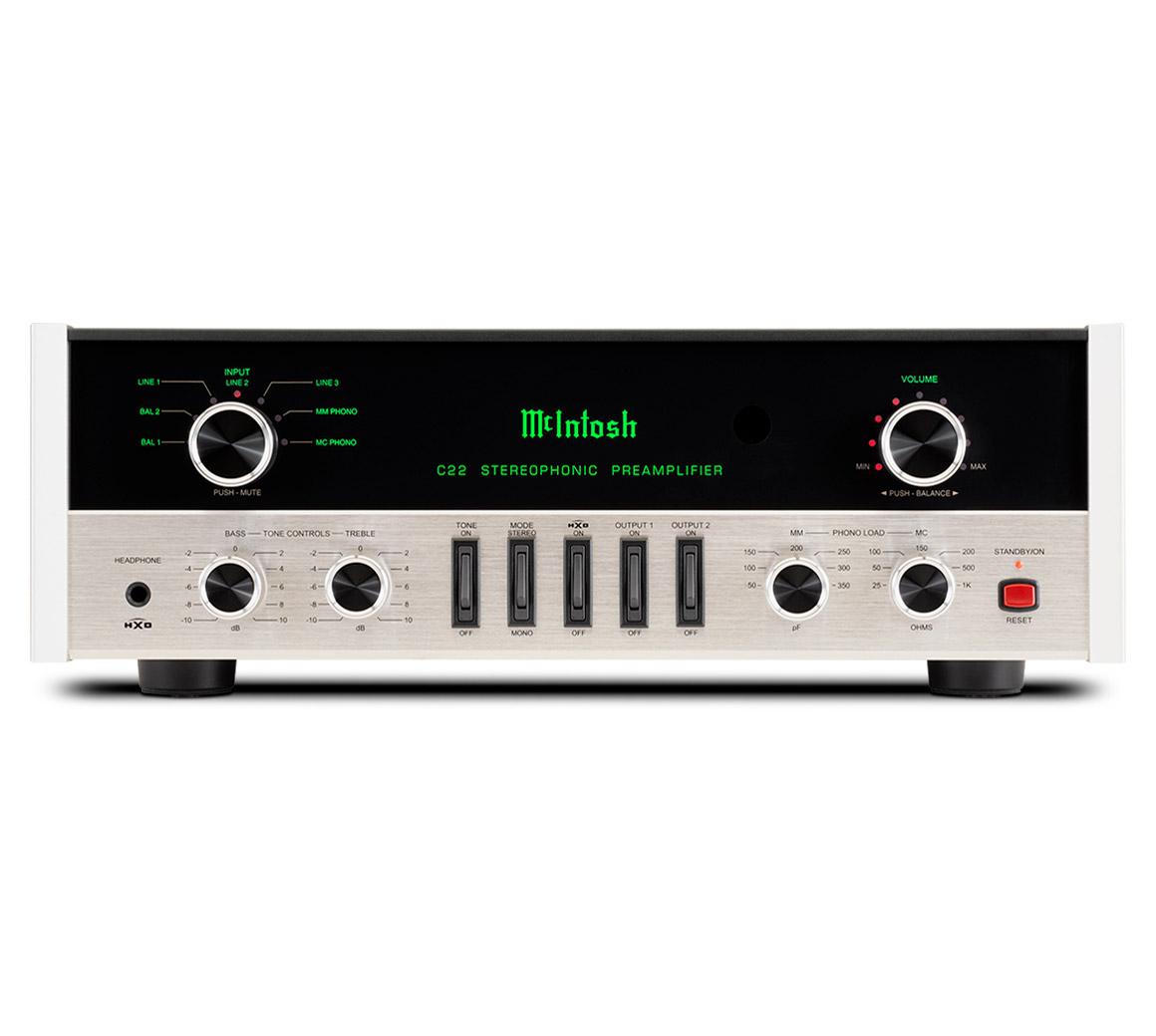

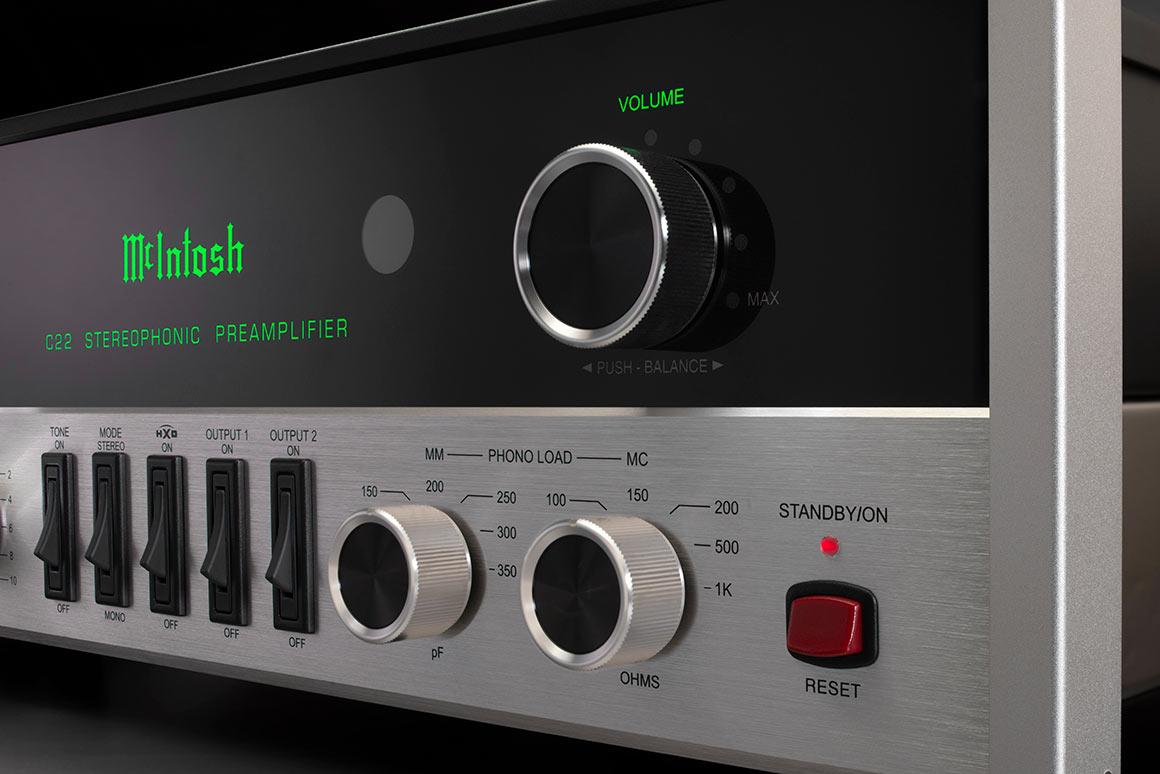

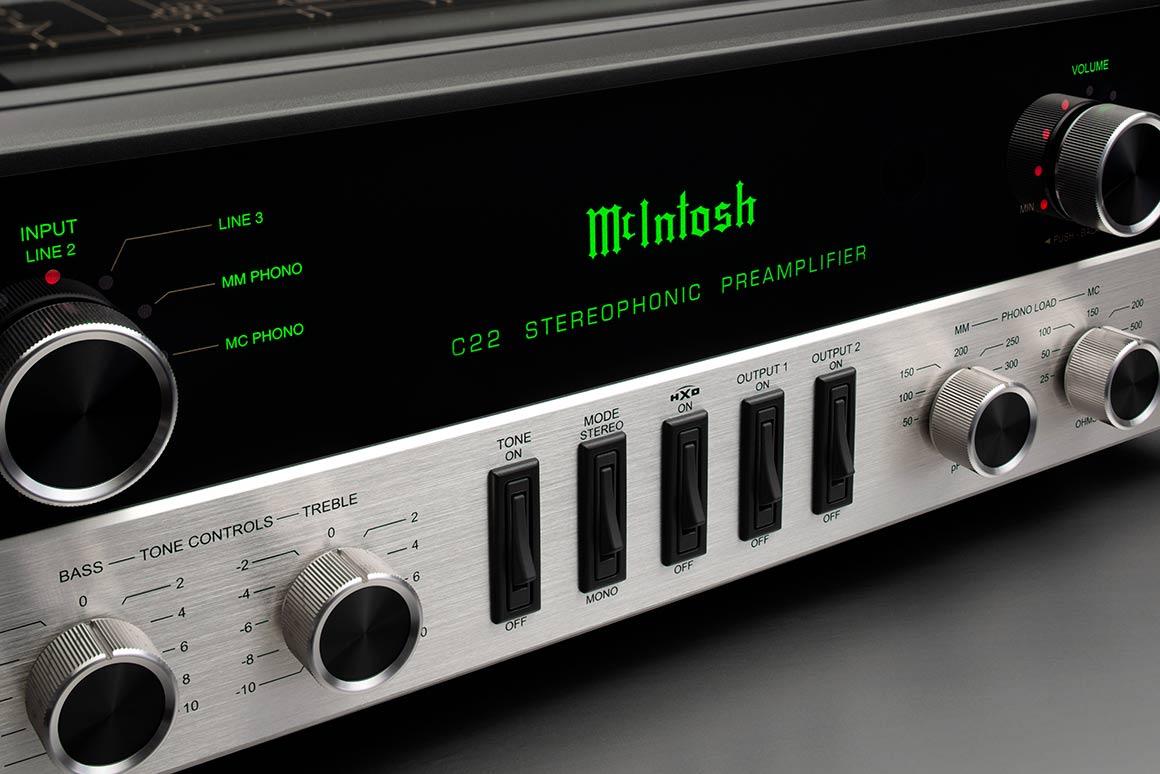

Bypassable bass and treble tone controls are located on the front panel and can be adjusted in 2dB increments via rotary knobs. Impedance and capacitance for the phono inputs can also be adjusted via separate rotary knobs. In addition to setting the listening level, the volume knob can also be used to adjust the relative volume balance between the left and right audio channels. The ¼” headphone jack is powered by our High Drive headphone amplifier and features our Headphone Crossfeed Director (HXD®) technology. HXD improves the sound localization for headphone listening by restoring the directionality component of the sound stage that’s normally only heard from loudspeakers.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Electronic Specifications

  • Number of Channels
    2
  • Total Harmonic Distortion
    0.08%
  • Frequency Response
    +0, -0.5dB from 20Hz to 20kHz
    +0, -3dB from 15Hz to 100kHz
  • Maximum Volts Out (Balanced / Unbalanced)
    16V RMS / 8V RMS
  • Sensitivity High Level (Balanced / Unbalanced)
    900mV / 450mV
  • Sensitivity Phono (Moving Coil)
    0.45mV
  • Sensitivity Phono (Moving Magnet)
    4.5mV
  • Signal To Noise Ratio (High Level)
    100dB
  • Signal To Noise Ratio (Moving Coil)
    75dB
  • Signal To Noise Ratio (Moving Magnet)
    75dB
  • Voltage Gain (High Level)
    15dB
  • Voltage Gain (Moving Coil)
    60dB
  • Voltage Gain (Moving Magnet)
    40dB
  • Input Impedance (Balanced / Unbalanced)
    44K ohm, 22K ohm

Connectivity

  • Balanced Input
    2
  • Unbalanced Input
    3
  • Phono Input Moving Coil
    1 (adjustable)
  • Phono Input Moving Magnet
    1 (adjustable)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital MCT (DIN) Input
    0
  • Digital USB Input
    0
  • HDMI (ARC) Input
    0
  • Digital AES/EBU Input
    0
  • Balanced Fixed Output
    0
  • Balanced Variable Output
    2
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    2
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Input Level Match
    No
  • Home Theater PassThru
    No
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass
  • Service Port
    0

Control

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Tone Bypass: Yes
    Input Assign: No
  • RS232 Control Input
    No
  • Power Control Output
    2 Main, 2 Switched
  • Rear Panel Data Port
    5
  • Rear Panel IR Sensor Input
    Yes

General Specifications

  • Multi-Chassis or Single
    Single, two layer
  • Output Meters
    No
  • Vacuum Tube or Solid State
    Vacuum Tube: (5) 12AX7A and (1) 12AT7
  • Power Consumption (On)
    50 Watts

Weights & Dimensions

  • Dimensions (W x H x D)
    17.5″ (44.45cm) x 6″ (15.24cm) x 18″ (45.72cm)
  • Weight
    25 lbs (11.3kg)
  • Shipping Weight
    41.4 lbs (18.8kg)
