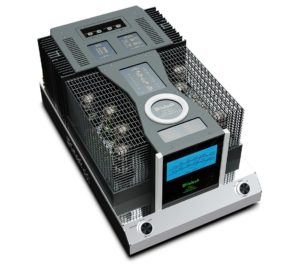

McIntosh MC901

Hinta

45 980,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

Ihanteellinen, ultimate-tason päätevahvistin kaiuttimen bi-amp-ohjaukseen.

Monopäätepari, jossa 2x300W putkivahvistin KT88-pääteputkilla keski- ja korkeille äänille sekä 2x600W transistorivahvistin bassopuolelle. Säädettävät jakosuotimet, jotka myös tarvittaessa ohitettavissa.

McIntoshin patentoimat Quad Balanced- ja Sentry Monitor-kytkennät. Tuplatehomittarit. Järeät, ainutlaatuiset kaiutinliitännät. Balansoidut ja RCA-tulot. Paino 81,6kg.



Hinta/pari. Myydään myös yksittäin 22990€/kpl.

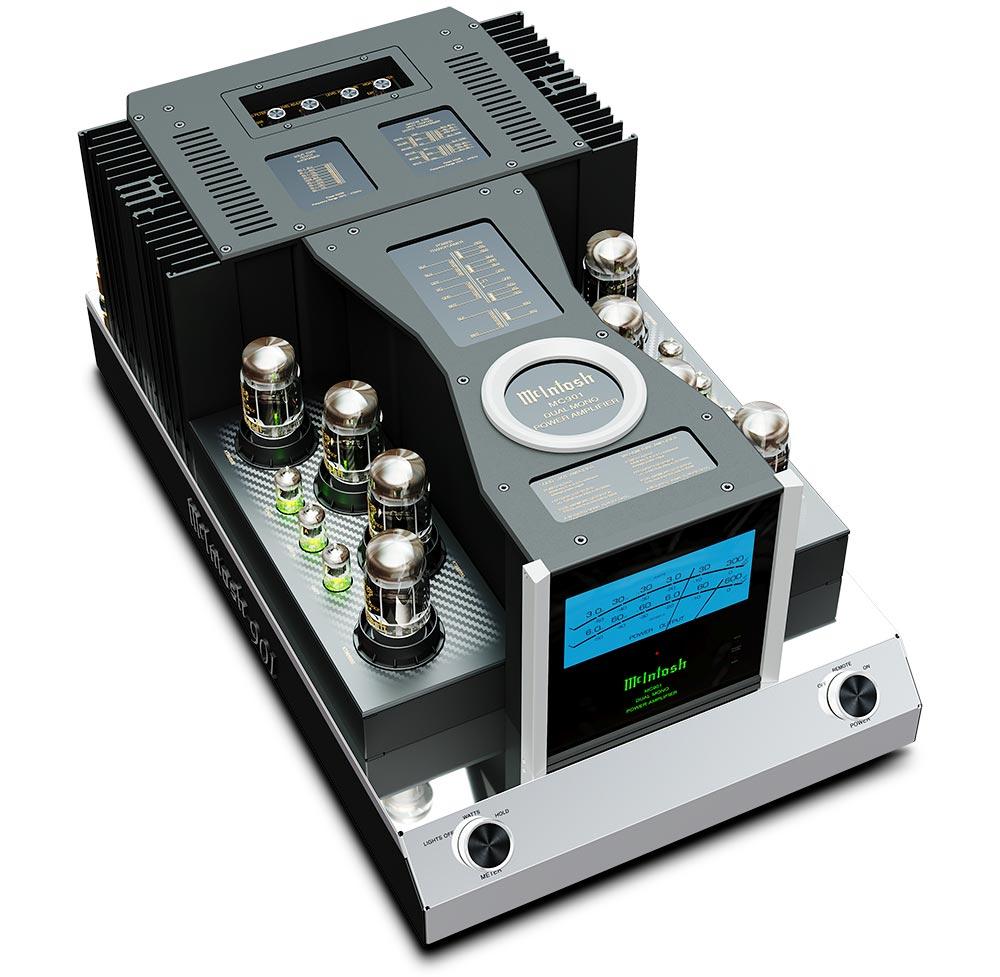

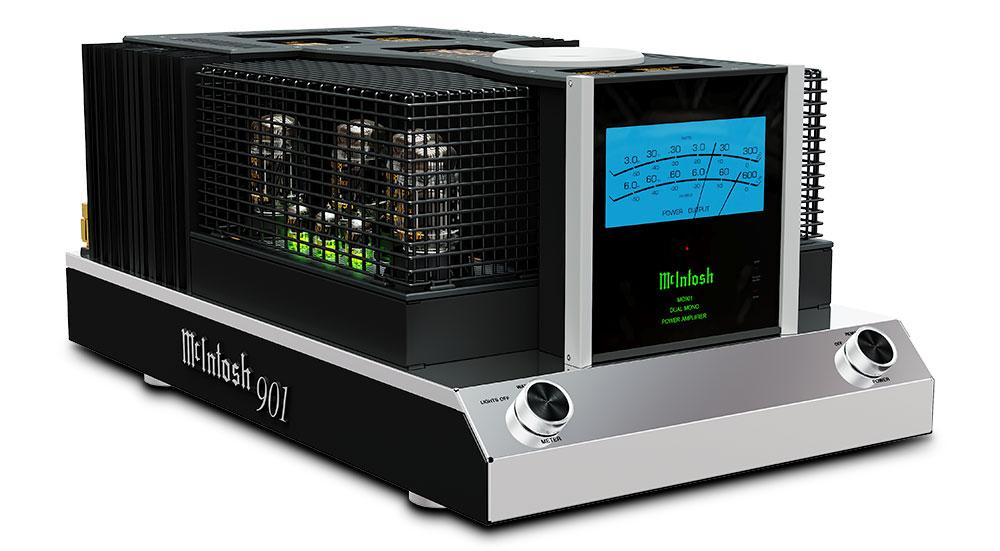

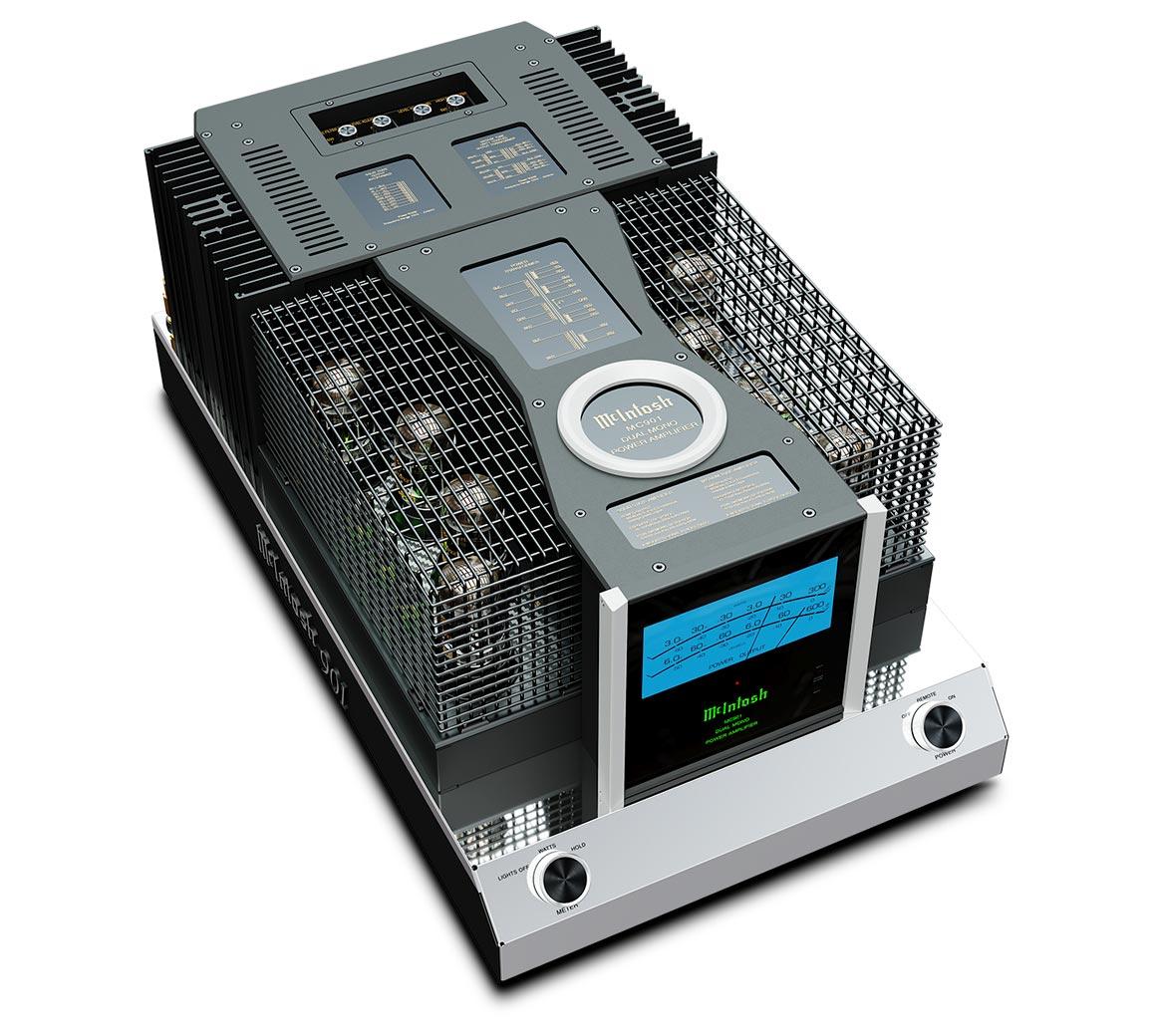

The MC901 is a monoblock amplifier that drives a single speaker. But it is unlike any other monoblock amplifier. What makes the MC901 so unique is that it’s two amplifiers combined into one. Adding to the uniqueness is that each amplifier is of differing design philosophies: the MC901 consists of a 300 Watt vacuum tube amplifier attached to a 600 Watt solid state amplifier on one unified chassis.

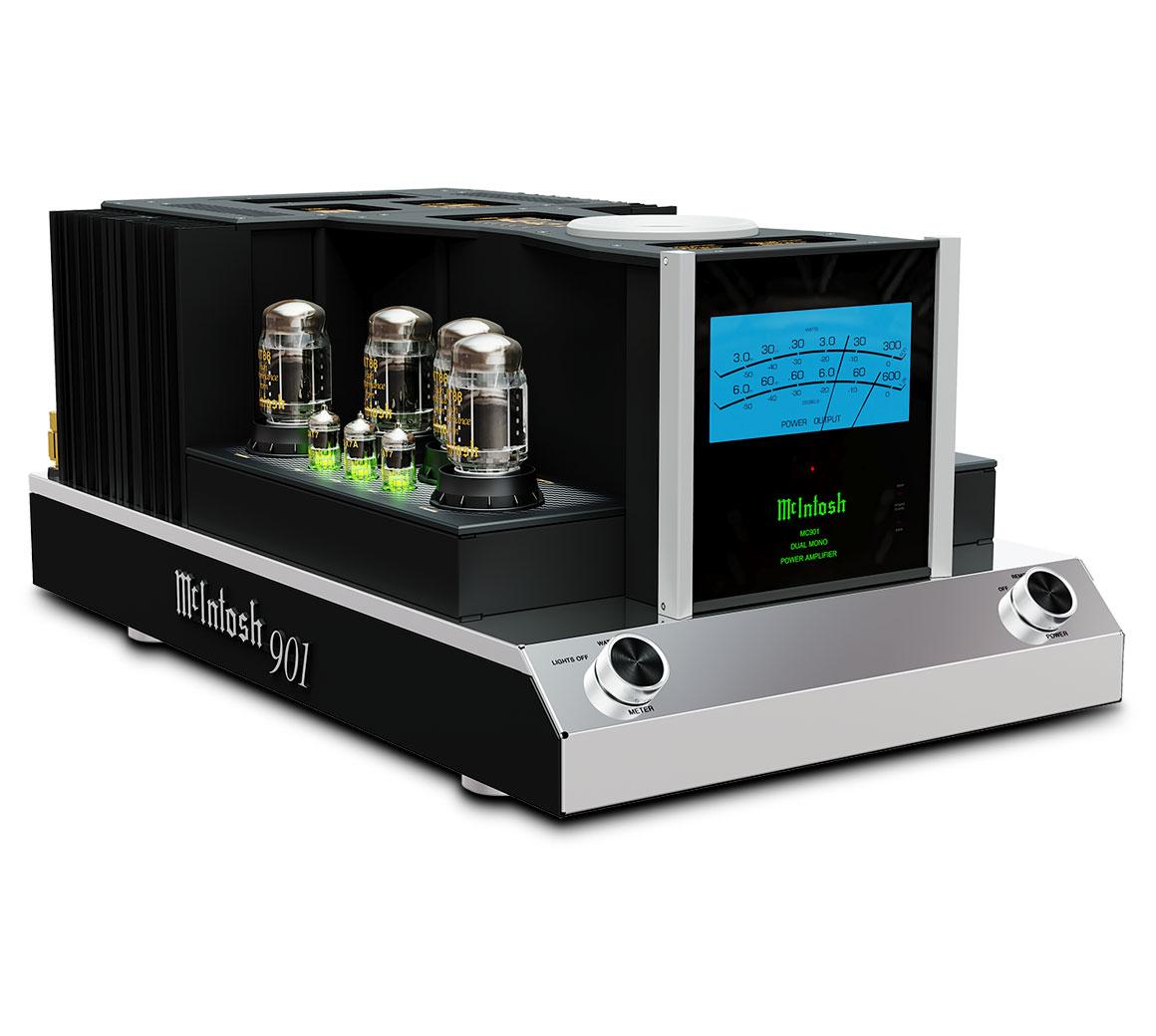

The 300 Watt vacuum tube portion powers the speaker’s mid and upper drivers via eight KT88 output tubes, plus four 12AT7 and two 12AX7A signal tubes; the solid state section delivers 600 Watts of dedicated power to the power hungry woofers. The 300 Watt vacuum tube amp in the MC901 uses our patented Unity Coupled Circuit output transformer – the same technology McIntosh was founded on in 1949 – to deliver its full 300 Watts into almost any speaker regardless if it has 2, 4 or 8 Ohm impedance. Similarly, the 600 Watt solid state amp delivers its full 600 Watts into a 2, 4 or 8 Ohm impedance speaker via our Autoformer™ technology.

Prior to the MC901, bi-amping a speaker required two separate amplifiers. It also required an external crossover, along with a lot of trial and error, to properly configure the two detached amplifiers so they worked together as best as possible. The MC901 solves this issue thanks to its internal, adjustable crossover with the controls easily accessible on the top of the unit. These adjustable crossover filters allow you to optimize the performance of both amplifier sections to your listening preferences. Relative gain levels for each amplifier section can be adjusted from -6dB to + 3dB. A direct feed can also be connected to each amplifier section, thus bypassing the filters.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Electronic Specifications

  • Power Output per Channel
    Solid State section: 600 Watts @ 2, 4 or 8 Ohms
    Vacuum Tube section: 300 Watts @ 2, 4 or 8 Ohms
  • Number of Channels
    1
  • Total Harmonic Distortion
    Solid State section: 0.005% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

    Vacuum Tube section: 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

  • S/N below rated output
    Solid State section: 122dB
    Vacuum Tube section: 112dB
  • Dynamic Headroom
    Solid State section: 2.5dB
    Vacuum Tube section: 1.2dB
  • Damping Factor
    Solid State section: >40
    Vacuum Tube section: >18
  • Rated Power Band
    Solid State section: 20Hz to 20kHz
    Vacuum Tube section: 20Hz to 20kHz
  • Frequency Response
    Solid State section:
    +0, -0.25dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 100,000HzVacuum Tube section:
    +0, -0.5dB from 20Hz to 20,000Hz
    +0, -3dB from 10Hz to 70,000Hz

Control

  • Remote Power Control
    Yes
  • Multi-Channel DB25 Cable
    N/A

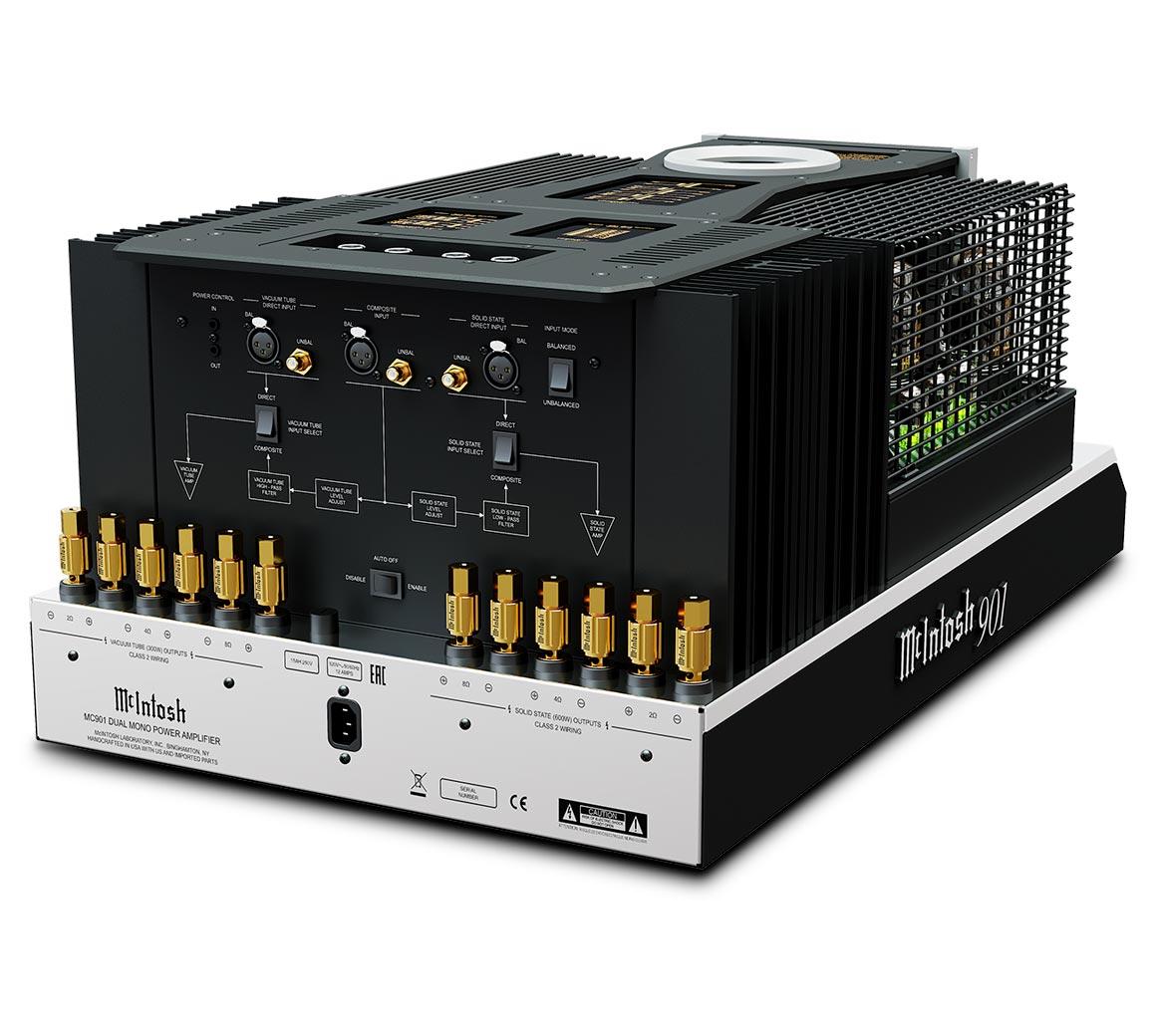

Connectivity

  • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts

General Specifications

  • Circuit Configuration
    Solid State section: Quad Balanced
    Vacuum Tube section: Unity Coupled
  • Circuit Design
    Solid State and Vacuum Tube
  • Mono Bridge
    No
  • Mono Parallel
    No
  • Output Type
    Solid State section: Autoformer™
    Vacuum Tube section: Unity Coupled Output Transformer

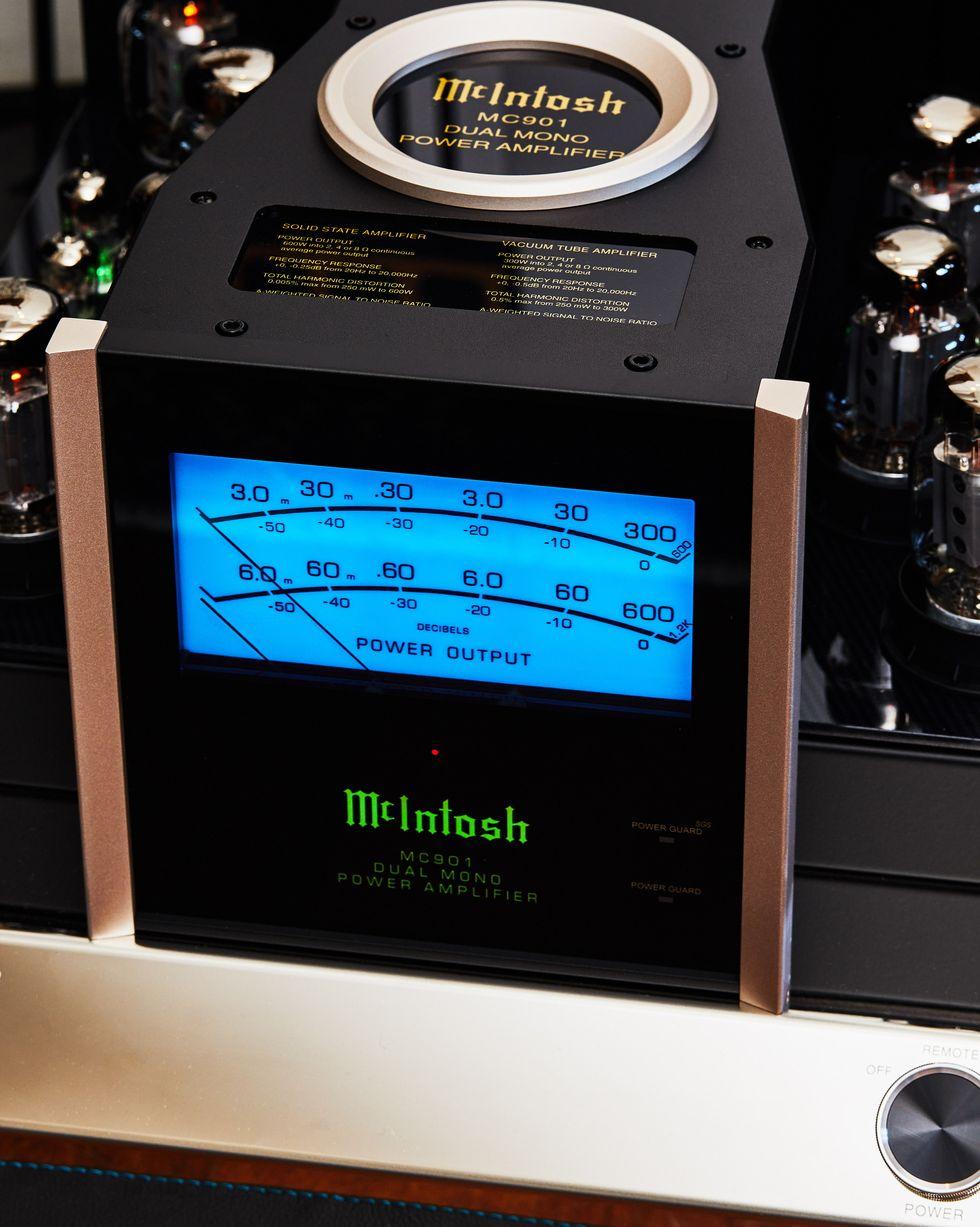

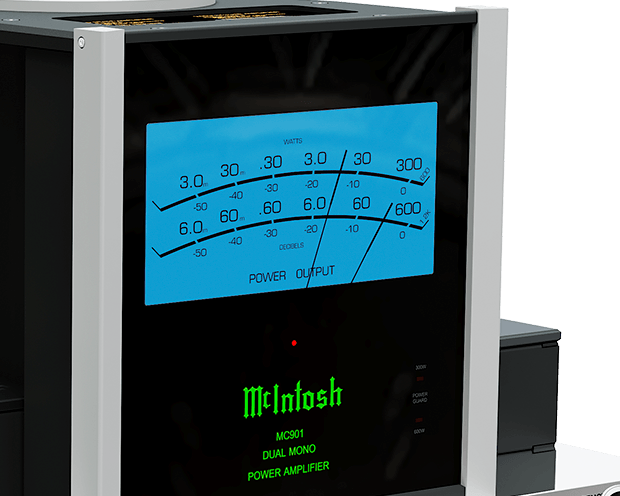

  • Meters
    DualView™ Power Output Meter
  • Meter Light Switch
    Yes
  • Balanced Input
    3 (1 Solid State, 1 Vacuum Tube, 1 Composite)
  • Front Panel
    Glass
  • Illumination
    Direct LED
  • Chassis Style
    Polished stainless steel & black painted steel

Weights & Dimensions

  • Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 13-1/4″ (33.7cm) (including feet) x 29-1/2″ (74.9m)
  • Weight
    180 lbs (81.6 kg)
  • Shipping Weight
    200 lbs (90.7 kg)
