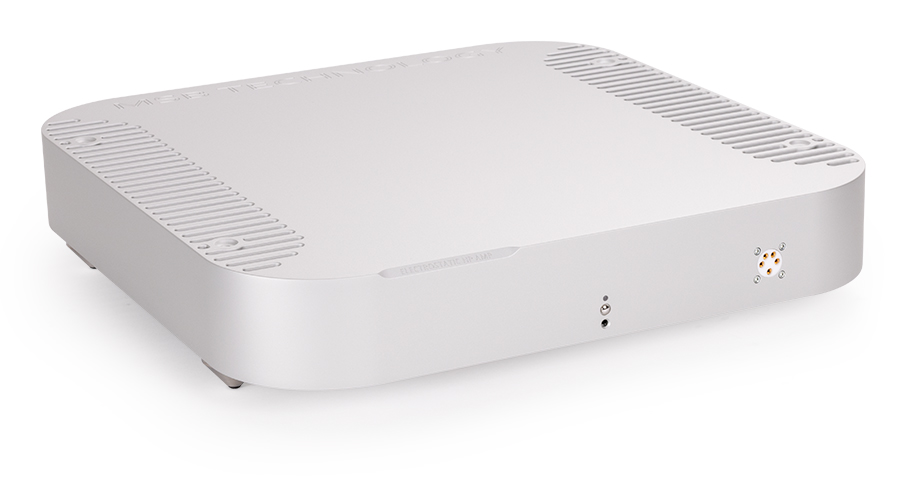

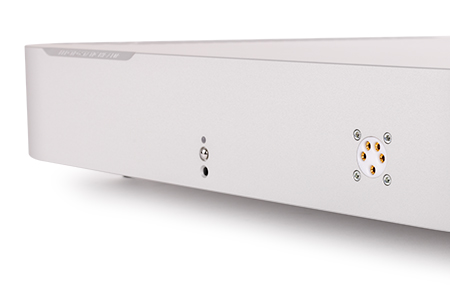

MSB The Electrostatic Headphone Amplifier

Hinta

28 000,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

Elektrostaattisille kuulokkeille tehty MSB The Electrostatic Headphone Amplifier on kuulokevahvistin vaativan kuulokenautiskelijan kotiin. Parasta äänenlaatua, mitä on tarjolla. Suunniteltu toimimaan yhdessä MSB:n DAC:ien kanssa. Optimoitu 75ohm ja 150ohm tuloimpedansseille. Class A-luokassa toimiva vahvistin on tehty toiminnaltaan ilman negatiivista takaisinkytkentää. Ohjaa vaivatta lähes kaikkia dynaamisia kuulokkeita. Huippuluokan dynamiikka 140dB.

Tinkimätön toteutus MSB:n tapaan – rungoltaan, virtalähteiltään, komponenttien laadultaan ja sijoittelultaan.

Musta ja hopea



The world’s highest level of headphone audio playback.

With the great variety of headphone choices, it is only possible to achieve the best performance with a single headset in mind. You can not use the universal headphone amp concept with the Select level of performance. That is why we have built a dedicated Stax headphone amp to be paired the the Select DAC.

The Select Headphone Amplifier has been designed to take advantage of the powerful DAC outputs. This allows it to achieve a level of headphone playback never heard.

If you are sharing the headphones with a two channel system, use an internal bypass in the amp. Simply turn off the unit for the signal to be sent to your other system.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

The Electrostatic Headphone Amplifier

The Select Headphone Amplifier can ONLY be used with MSB DACs.
Dynamic Range >140 dB
Frequency Response 5Hz-20Khz, ±0.8dB

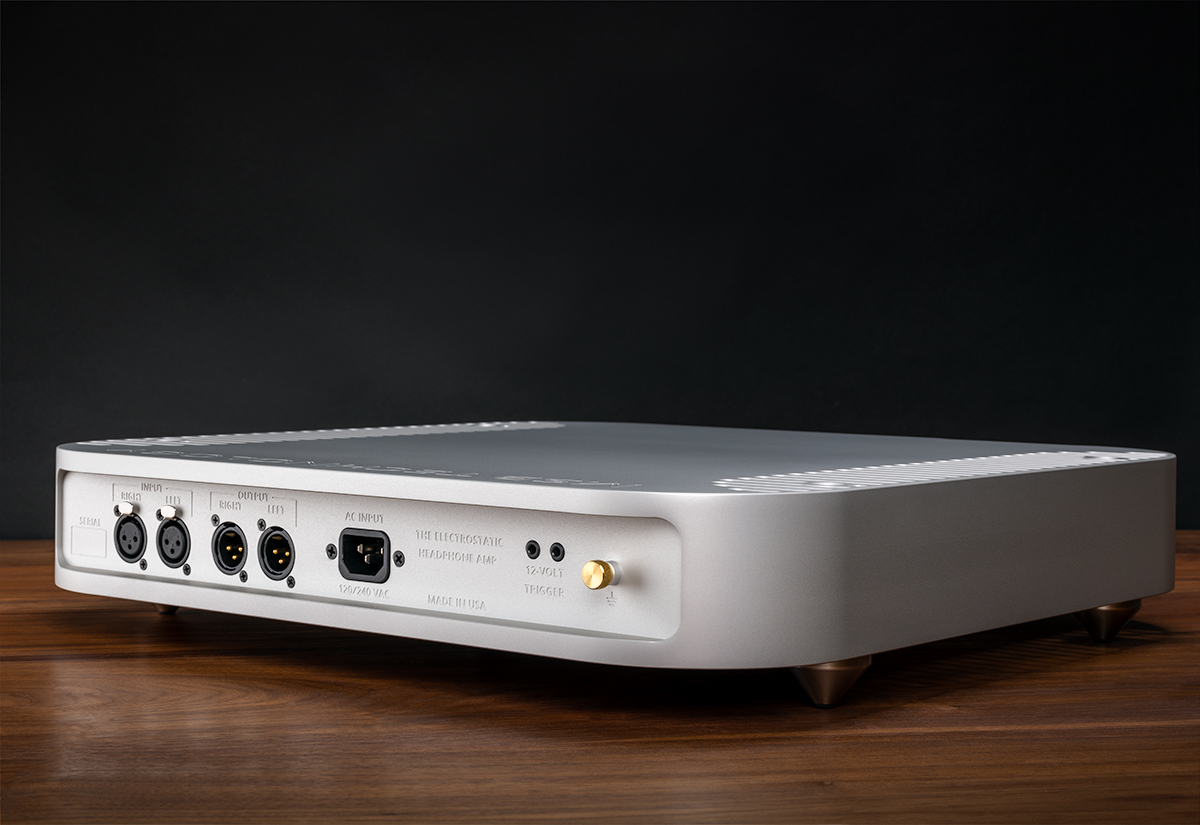

XLR Input 75Ω Balanced
4Vrms Maximum
Common Mode Rejection Ratio > 120dB CMRR @ 60Hz
> 90dB CMRR @ 1kHz
> 70dB CMRR @ 20kHz
Crosstalk <-90dB Crosstalk @ 1kHz
<-65dB Crosstalk @ 20kHz
XLR Output Direct connection to input when enabled or unit powered off.
When listening to headphones, output is muted with 75Ω output impedance

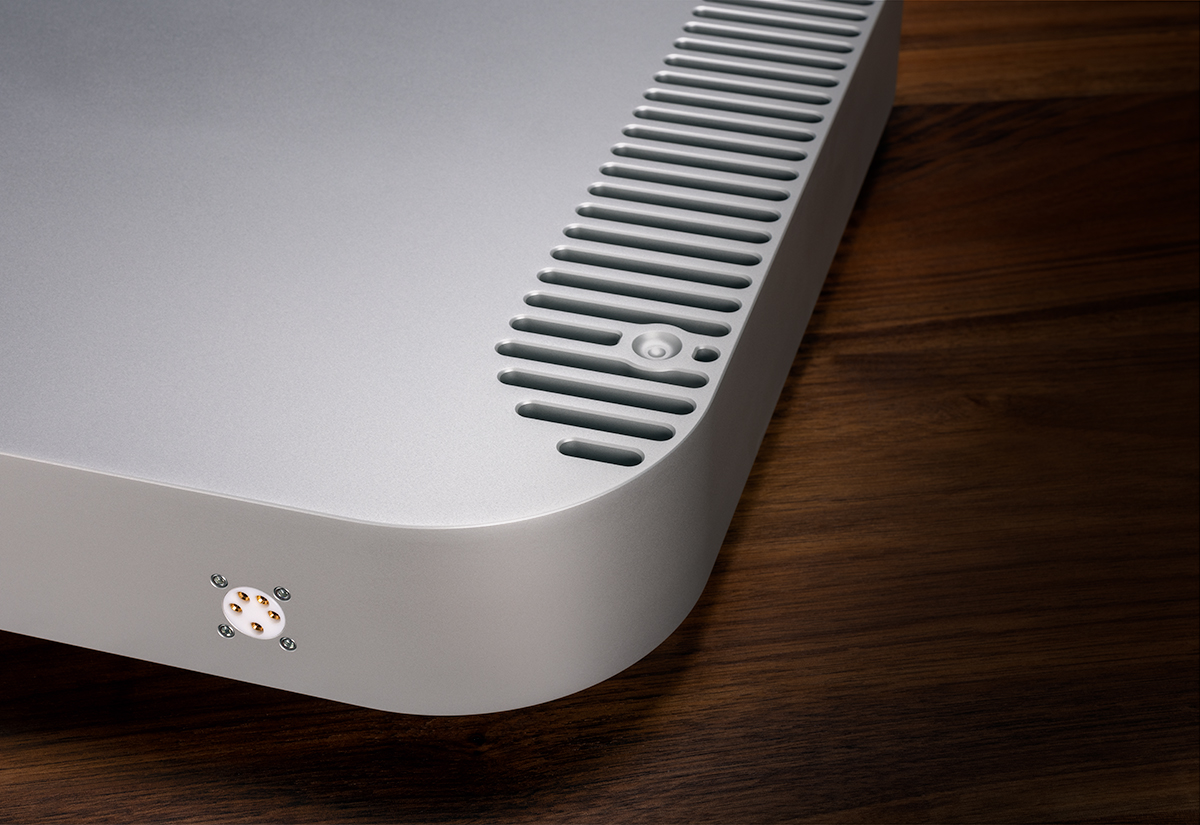

Headphone Output 1x Stax style output
Bias Voltage 580Vdc, 5 MΩ
Controls IR Remote (Configurable)
Power Button (Configurable)
2x MSB 12V Trigger
Power Consumption 80W
Less than 2W standby

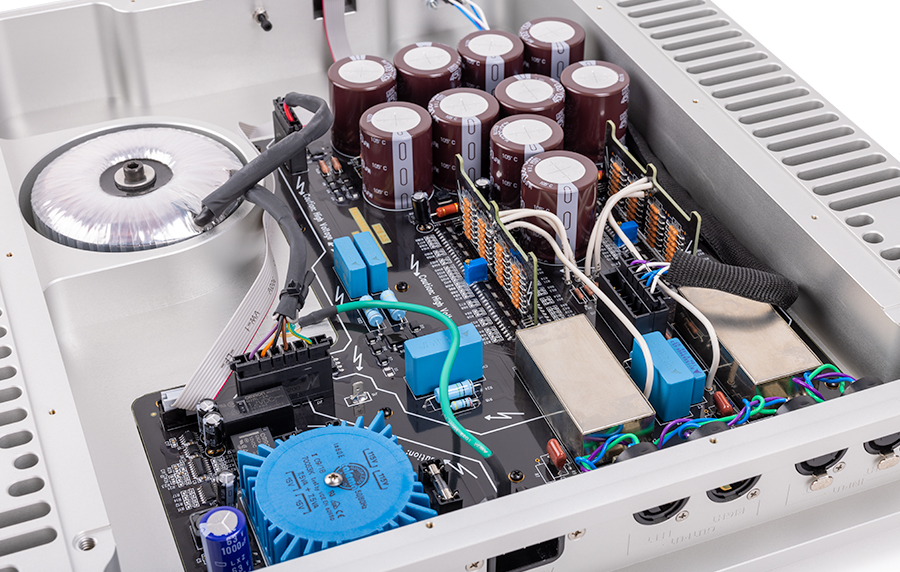

Topology
Input/Gain Stage – Class-A
– Quad balanced
– Impedance matched
– Transformer coupled
– Fully discrete
Output Stage – High Voltage Electrostatic Class-A
– Balanced
Chassis Dimensions
Width: 17.5 in (444 mm)
Depth: 17.5 in (444 mm)
Height: 2.75 in (70 mm)
Weight: 38 lbs (17 kg)

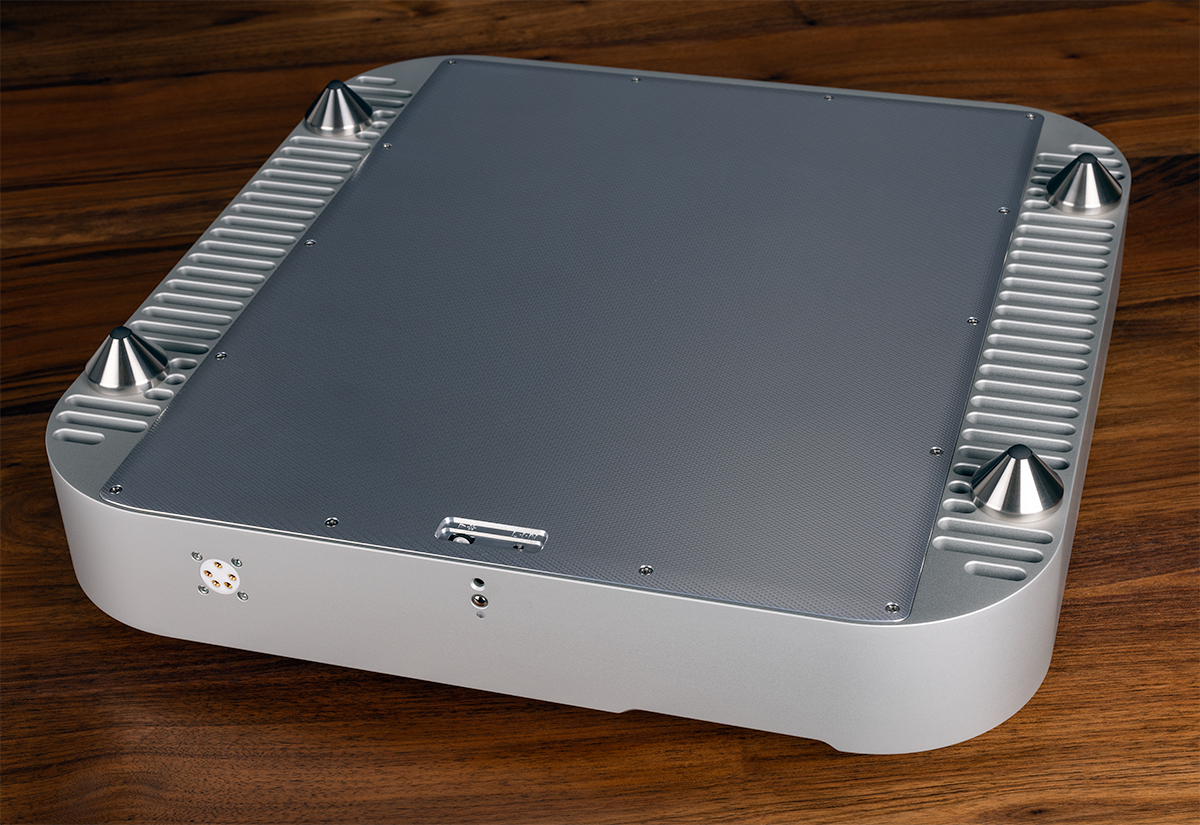

Product Feet: M6X1 Thread
Shipping Dimensions
Width: 23 in (584 mm)
Depth: 23 in (584 mm)
Height: 7 in (178 mm)
Weight: 45 lbs (20 kg)
Included Accessories
User manual
Ground cable
IEC power cord
