Technical SpecificationS

​Firmware Highlights

• Anti-Mode™ 3 correction

• Cross-over for speakers and sub

• Automatic channel balance

• Tone controls

​

Interfaces

• Analog Stereo or 1 coaxial S/PDIF digital input (mutually exclusive)

• 1 optical S/PDIF digital input

  • S/PDIF: 16 to 24 bits PCM, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

• USB Audio input

  • USB Type-C connector

  • USB Audio 1.0 Stereo 24-bit up to 96kHz PCM (no drivers required)

• Analog Stereo RCA output (Anti-Mode X2)

• Toslink optical and coaxial S/PDIF digital stereo output (Anti-Mode X2D)

• Analog subwoofer RCA output

• Microphone input

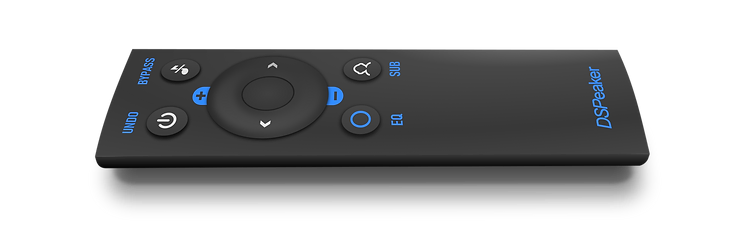

• IR remote control (controller included)

• Service USB port for firmware update (USB memory stick required)

​

Analog / Digital specifications (typical)

• Frequency Range (analog to analog): 5Hz to 22kHz

• Analog Input: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.002 %

• Coaxial and Toslink optical S/PDIF output (X2D): 96 kHz, 24 bits

• Subwoofer output: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.03 %

• Power consumption: active 1.5W, stand-by: 0.1W

​

Mechanical

• Unit Weight: 0.3 kg

• Unit Dimensions: 126mm (width) x 80mm (depth, without cables) x 28mm (height)

• Measurement microphone and remote controller included
