FEATURES

• Connect up to 3+1 digital and analog audio sources
• Supports stereo systems with an optional subwoofer
• Anti-Mode™ 3 algorithm
• USB type C connector for audio input
• Very small size, fits anywhere
• Plug and play: no expertise required to calibrate and use

Specifications

• ​Firmware Highlights:
  • Anti-Mode™ 3 correction
  • Cross-over for speakers and sub
  • Automatic channel balance
  • Tone controls

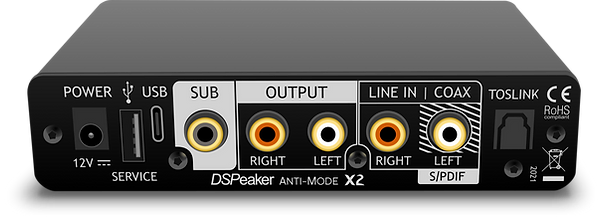

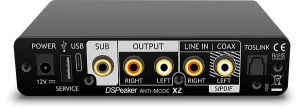

• Interfaces:
  • Analog Stereo or 1 coaxial S/PDIF digital input (mutually exclusive)
  • 1 optical S/PDIF digital input
    • S/PDIF: 16 to 24 bits PCM, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
• USB Audio input
  • USB Type-C connector
  • USB Audio 1.0 Stereo 24-bit 48kHz / 96kHz PCM (no drivers required)
• Analog Stereo RCA output, analog subwoofer RCA output
• Microphone input

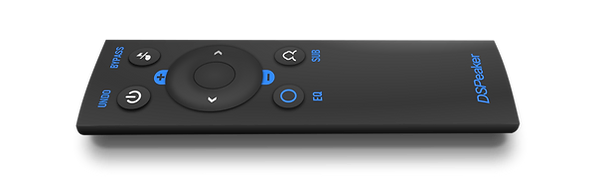

• IR remote control (controller included)
• Service USB port for firmware update (USB memory stick required)

• Analog specifications (typical):
  • Frequency Range (analog to analog): 5Hz to 22kHz
  • Analog Input: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.002 %
  • Line output:   2.2 Vrms (max),  SNR 107 dB, THD (-6 dB level) < 0.0015 %
  • Subwoofer output: 2.3 Vrms (max), SNR 100 dB, THD (-6 dB level) < 0.03 %
  • Power consumption: active 1.5W, stand-by: 0.1W

• Mechanical
  • Unit Weight: 0.3 kg
  • Unit Dimensions: 126mm (width) x 80mm (depth, without cables) x 28mm (height)
  • Measurement microphone and remote controller included
