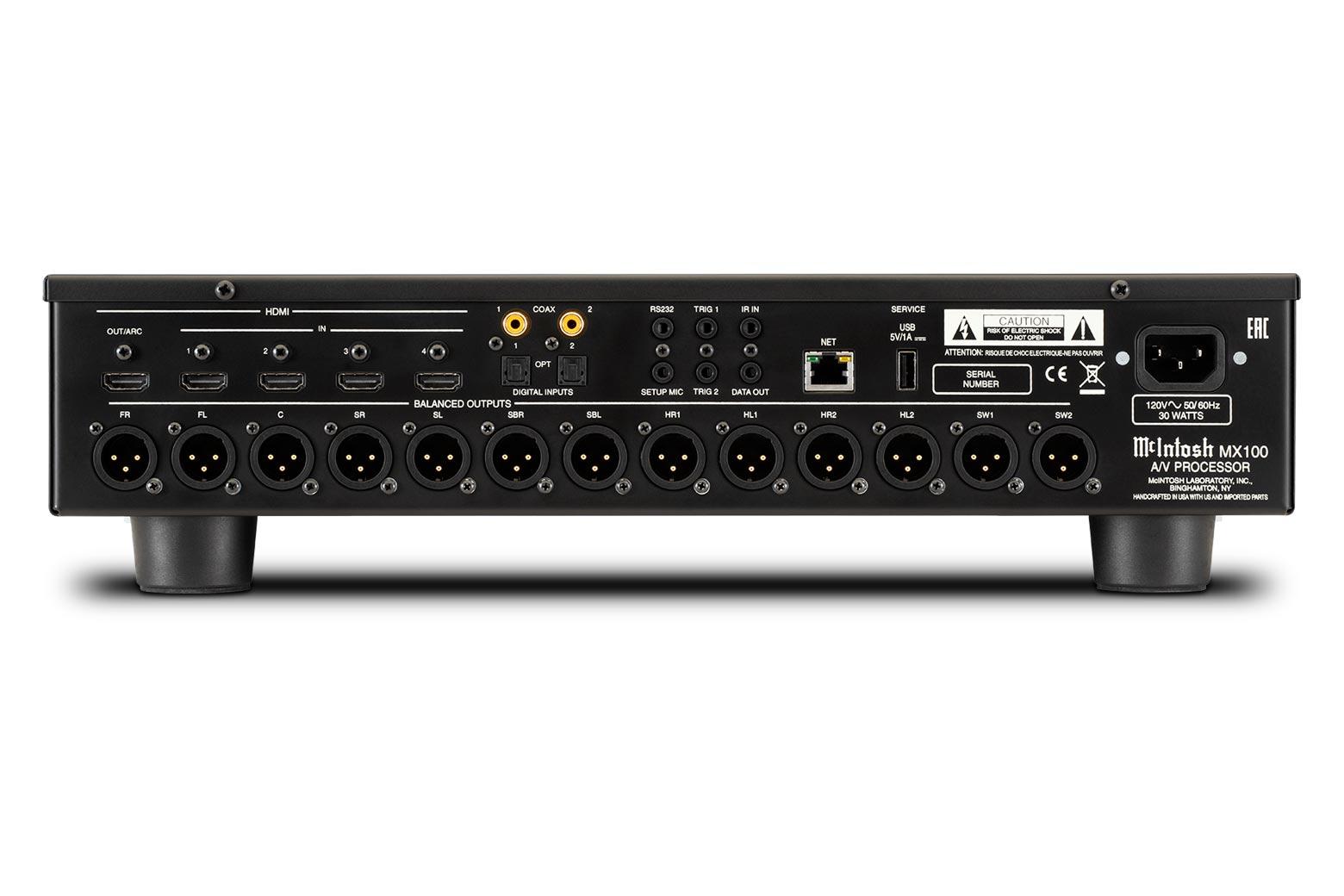

Connectivity

• Multi-Channel Outputs Balanced

  11.2

• Multi-Channel Inputs Unbalanced

  0

• Multi-Channel Outputs Unbalanced

  0

• Stereo Inputs Balanced

  0

• Stereo Inputs Unbalanced

  0

• Stereo Outputs Unbalanced

  0

• Digital Coaxial Input

  2

• Digital Coaxial Output

  0

• Digital Optical Input

  2

• AES/EBU Balanced Input

  0

• HDMI Input

  4

• HDMI Output

  1

• HDBT Output

  0

• USB

  1 Type A

• Component Input

  0

• Component Output

  0

• Composite Input

  0

• Composite Output

  0

• Subwoofer 2 Output

  Yes
  (discrete signal from subwoofer 1)

• Network Connection

  1

• Max # of audio channels in Zone A

  13

• Additional Zone Outputs

  0

• Advanced Connections

  Ethernet Web interface and firmware update, IP-based control

HDMI Features

• Resolution and Refresh Rates

  4K/60Hz

• HDCP

  2.2

• 4:4:4 Color

  Yes

• Rec. 2020 (BT.2020)

  Yes

• 3D video pass-through

  Yes

• Dynamic Lip-sync

  No

• ARC

  Yes

• eARC

  Yes

• Video Scaling

  No

• High Dynamic Range (HDR)

  Dolby Vision, HDR10 and HLG

• Quick Media Switching (QMS)

  No

• Auto Low Latency Mode (ALLM)

  No

• Quick Frame Transport (QFT)

  No

• Variable Refresh Rate (VRR)

  No

Processing

• Total Harmonic Distortion (DSP Bypass)

  0.005%

• Dolby Processing

  Dolby Atmos, Dolby Surround Upmixer

• DTS Processing

  DTS-X, Neural:X Surround Upmixer

• Auro Processing

  N/A

• Pure Stereo DSP Bypass Mode

  No

• MPEG-H Audio

  No

• 360 Reality Audio

  No

• IMAX Enhanced

  No

• Room Correction

  Audyssey MultEQ XT32, Dynamic EQ / Dynamic Volume

Control

• Third Party Control

  RS232, Web IP, IR Input

• Tone Controls

  Bass and Treble

• OSD Overlay on HDMI Output

  Volume Only

• Input-Output Format Indicators

  0

• Control of McIntosh Sources

  Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks

General Specifications

• Channel Formats

  11.2 (7.2.4), 7.1, 5.1, Stereo

• Microphone and stand included

  Yes

• Network Features

  Ethernet Setup

• Unique Crossover Frequency, Each Speaker

  Yes

• Special Features

  Rear panel USB for firmware updating

• BTU Rating

  75 BTU/h

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2″ (44.45cm) (19″ (48.3cm with mounting ears)) x 4-15/16″ (11cm) (including feet) x 21″ (53.3cm) (including front panel and cables)

• Unit Weight

  17 lbs (7.7 kg)

• Shipping Weight

  39.5 lbs (18 kg)
