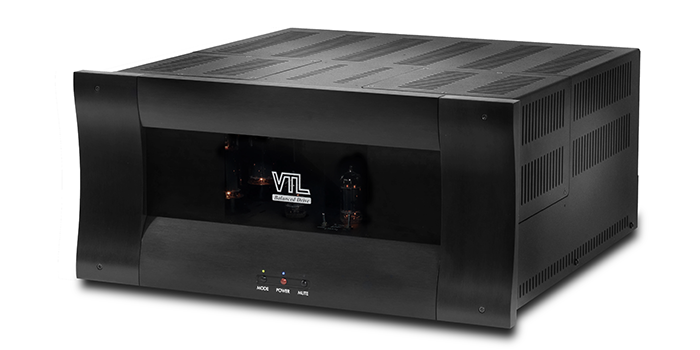

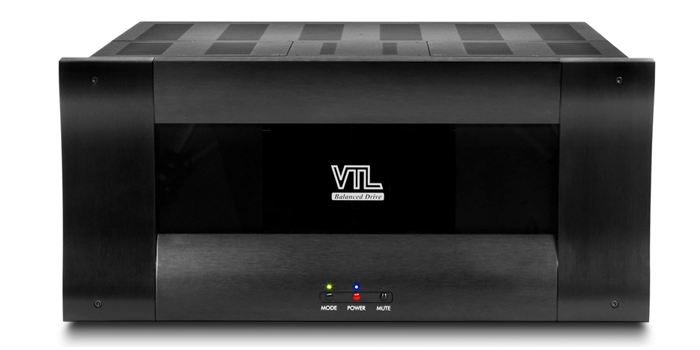

VTL MB-185 Signature Series III

Hinta

28 200,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

Signature-sarjan monopäätepari. Järeät virtalähteet ja 6kpl/kanava pääteputket takaavat ettei voima lopu kesken. KT88 tai vaihtoehtoisesti 6550-pääteputket. Tetrodina tehoa 220W/kanava ja triodina 110W/kanava. Autobias helpottaa käyttöä eikä huononna äänenlaatua. Musta ja hopea. Hinta/pari.



  • Fully balanced differential circuit – even single-ended signal produces balanced signal at output
  • Re-designed fully balanced differential input and driver stages for increased signal swing, bandwidth and stability
  • Zero global Negative Feedback
  • Shorter, faster feedback loop for greater tonal control without phase shift
  • Improved handling of loudspeaker loads for greater signal stability
  • The amplifier is unconditionally stable, without the need for capacitor compensation
  • Tube like JFET-type current source for lower sonic impact in single-ended mode
  • Lower impedance output stage for improved loudspeaker control
  • Dramatically increased interleaving and coupling in the balanced VTL proprietary Signature output transformer, for wider bandwidth and zero ringing
  • Variable user-adjustable DF feedback control to vary output impedance and damping factor for optimal matching to speaker load
  • Software microprocessor controlled
    • Tetrode/Triode Switchable
    • Auto Bias, Fault Sensing
    • Current in-rush limiting
    • Standby Mute function; with reduced tube current for increased tube life
  • 225 watts per channel in tetrode; 140 watts per channel in triode
  • Uses eight EL34 or 6CA7 tubes per monoblock
  • Adjustable regulated screen supply for stable operating point; discrete regulated input and driver supply for greater signal resolution and tonality
  • Adjustable precision-regulated bias supply for greater signal resolution and noise rejection and improved isolation from mains supply variations; output operating point does not change with AC power fluctuations
  • Improved Autobias and fault sensing system to operate in fully balanced differential mode; amplifier is fully protected against output tube failure; no need for precision matching of output tubes
  • All premium Mundorf silver oil caps in signal path
  • Film bypass of power supply caps for greater HF resolution
  • Extruded aluminum front panel with luxurious, modern look – black and silver options available
  • Rack mountable
  • Rigid construction and improved ventilation for lower operating temperature
  • Factory upgradeable from Series II
Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
Vacuum Tube Complement8 x EL34 or 6CA7, 1 x 12AT7, 1 x 12BH7
Output power
20Hz – 20kHz <3% THD
Tetrode: 225 Watts, Triode: 140 Watts
Into 5Ω
Input sensitivityVariable between 1-2V, depending upon DF setting
Input impedance45kΩ
Load setting
Output load range4Ω – 8Ω
S/N ratio225W Tetrode & 140W Triode: -90dB, 120Hz
Power consumptionIdle = 270W, Full power = 550W
Primary mains fuse rating100/120V = 12A Ceramic Slo Blo, 220/240V = 6A Ceramic Slo Blo
Input fuse100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
Logic fuse100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
B+ fuse ratingPlate Fuse – 1.5A fast acting 600V, Screen Fuse – 0.75A fast acting 600V
Dimensions W x D x H18.5 x 18 x 9 inches (47 x 45.7 x 23 cm)
Weight85lbs (38.5kg) per monoblock unpacked, 100lbs (45.4kg) packed
