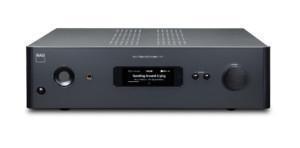

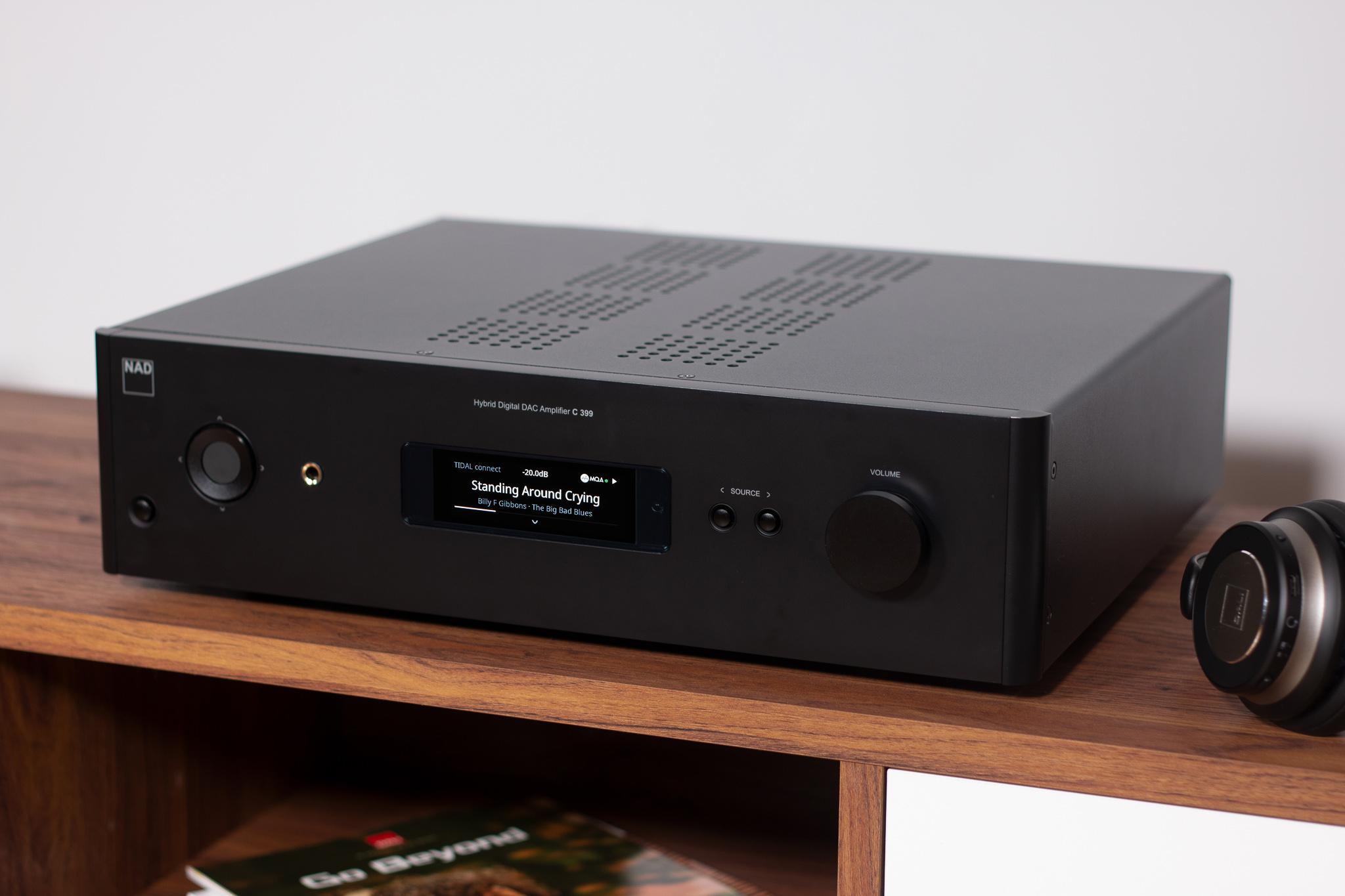

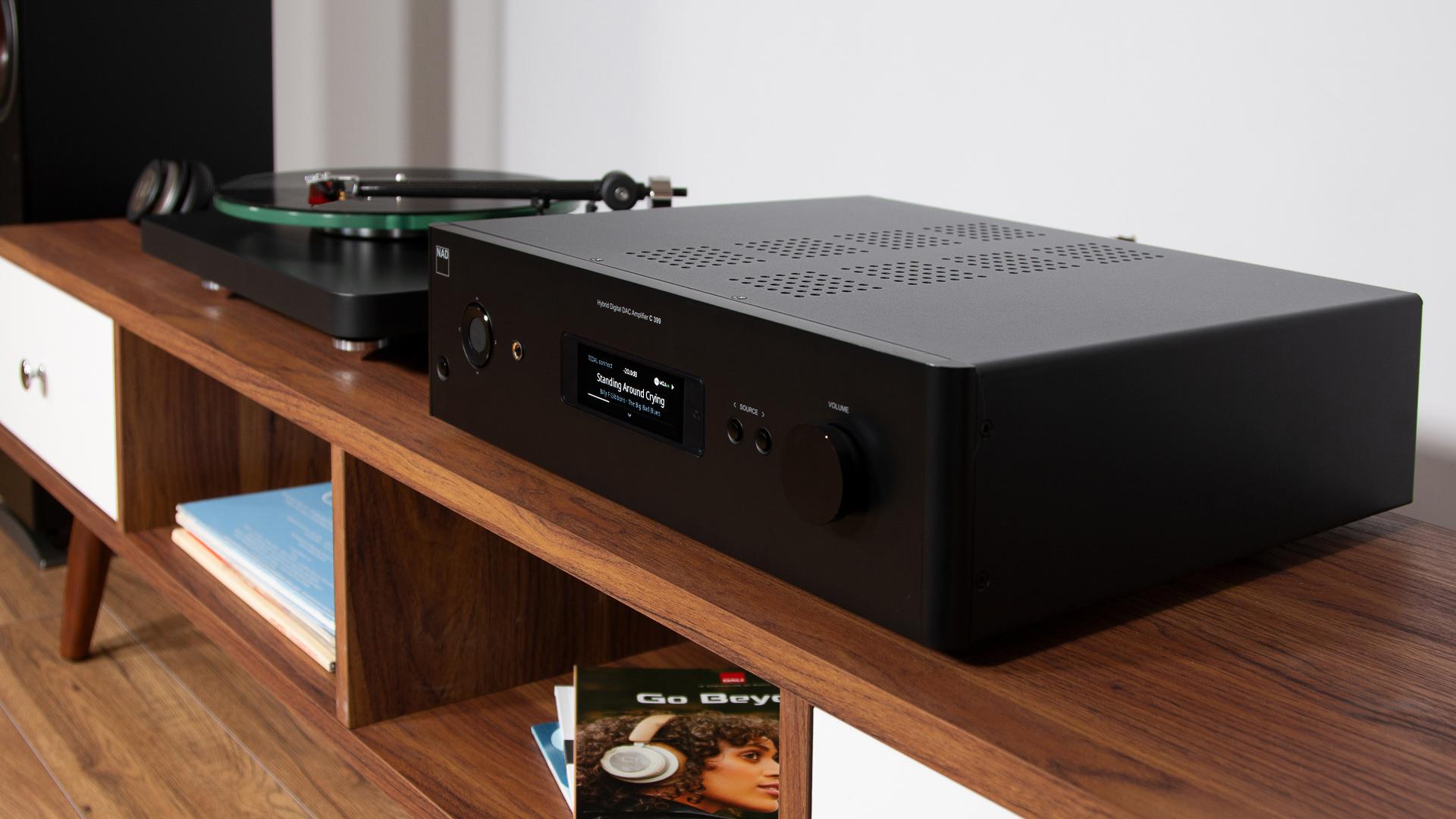

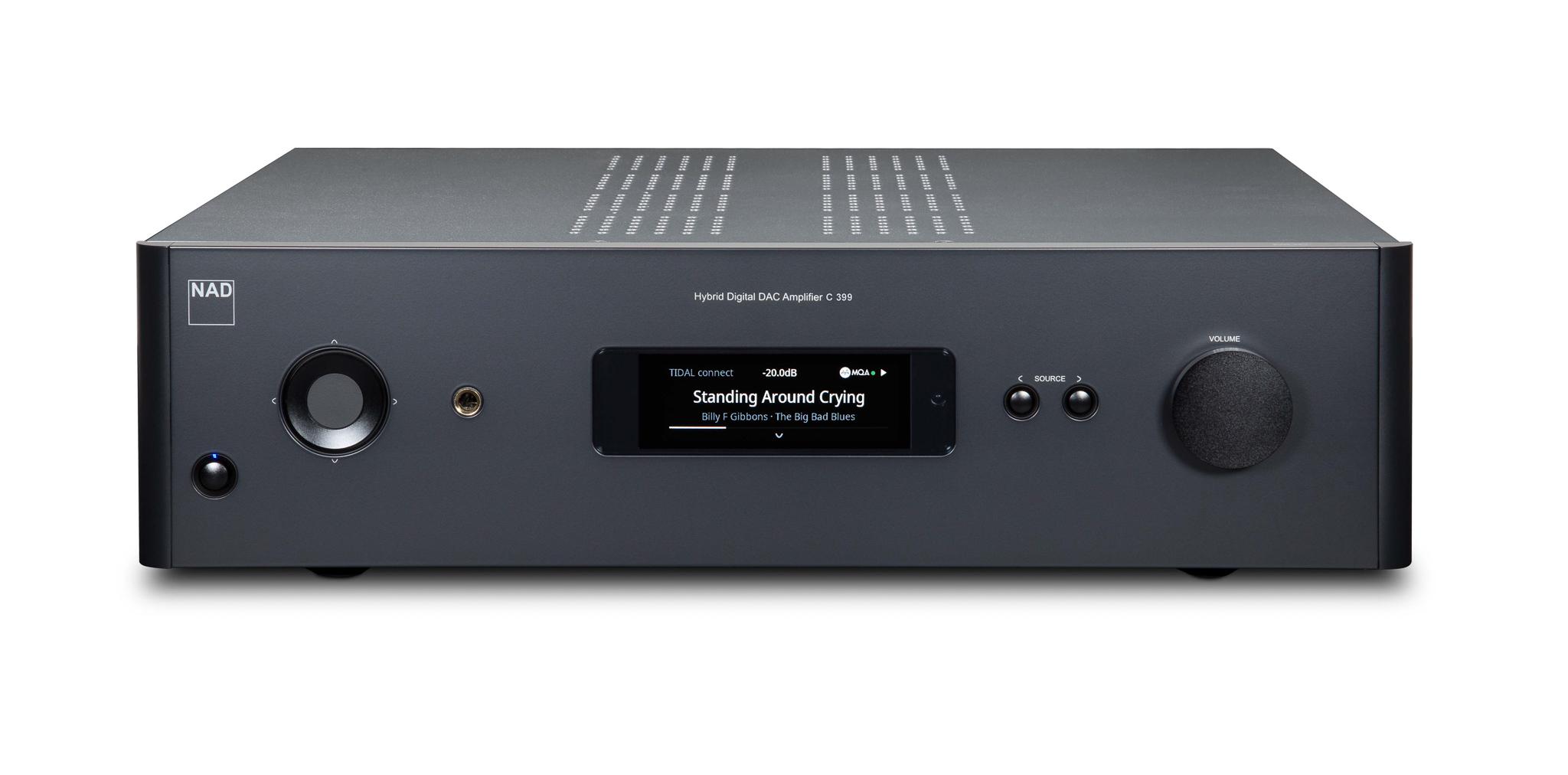

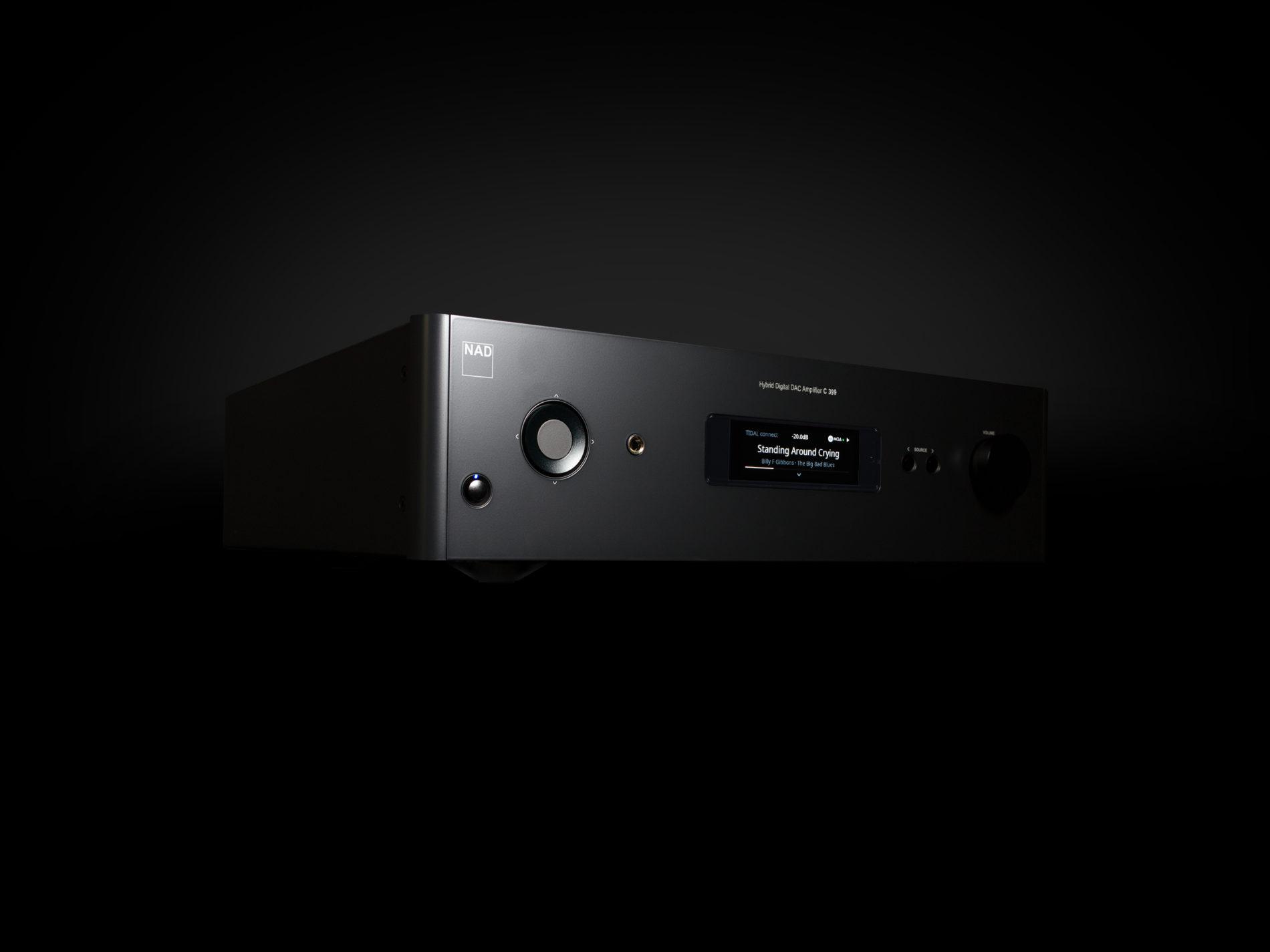

NAD Classic-sarjan lippulaiva integroitu stereovahvistin.
Uusi MDC-2 BluOS-D kaksisuuntainen modulipäivitettävyys (lisävaruste 499€) tuo mukanaan monipuoliset striimauspalvelut mm.Qobuz, TIDAL Connect ja Spotify Connect sekä Dirac Live-huonekorjauksen.
HDMI eARC tuloliitäntä, 32 Bit 384 kHz ESS Sabre DAC, levysoitintulo MM- ja high output MC-äänirasioille, teho 2x180W teho jatkuvana ja yli 2x250W teho hetkellisenä per kanava, kuulokevahvistin, liitännät kahdelle kaiutinparille, kahdet optiset ja -koaksiaaliset tuloliitännät ym.
Kauko-ohjain. Mitat LxKxS 435x120x290mm. Paino 11,2kg
• HybridDigital nCore Amplifier
• Continuous Power: 180 Watts per channel into 8/4 ohms
• Instantaneous Power: 250 Watts per channel
• Vanishingly low harmonic and intermodulation
distortion
• Dual MDC2 Ports for expanded functionality
• Optional MDC2 BluOS-D module adds BluOS Hi-Res multi-room music streaming and Dirac Live room correction
• Jitter-free 32-bit/384kHz ESS Sabre DAC
• Ultra-low-noise MM phono stage with infrasonic filtering circuitry
• Two optical, two coaxial digital input
• HDMI eARC input
• Two pairs of line-level analogue inputs with low-noise buffer amplifier
• Speaker A/Speaker B output
• Two-way Qualcomm aptX HD Bluetooth
• Dual subwoofer output
• Dedicated headphone amplifier
• CI-Friendly – IR remote, 12V Trigger in/out, IR in/out, RS-232 Serial port
• Seamless integrations with smart home control systems such as Control4, Crestron, RTI, URC, Push, Lutron, iPort, and Elan
” Bra köp! ” HIFI & MUSIK (5/2022)
” Suosittelemme ” AV-Plus (7/2022)
” The Greatest Bargains In High End Audio ” THE ABSOLUTE SOUND (Nov 2023)
PREAMPLIFIER
Line Input, Pre Out
THD (20Hz – 20kHz) <0.005% at 2V out
Signal/Noise Ratio >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation >80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C) 22 kilohm + 100pF
Maximum input signal >4.5Vrms (ref. 0.1% THD)
Output impedance Source Z + 240 ohm
Input sensitivity 93mV (ref. 500mV out, Volume maximum)
Frequency response ±0.03dB (20Hz – 20kHz)
Maximum voltage output -IHF load >4.5V (ref. 0.1% THD)
Tone Controls Treble: ±7.0dB at 20kHz; Bass: ±7.0dB at 60Hz; Balance: -10dB
Phono Input, Pre Out
THD (20Hz – 20kHz) <0.01% at 2V out
Signal/Noise Ratio >84dB (200 ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity 1.44mV (ref. 500mV out, Volume maximum)
Frequency response ±0.3dB (20Hz – 20kHz)
Maximum input signal at 1kHz >80mVrms (ref. 0.1% THD)
Line Input, Headphone Out
THD (20Hz – 20kHz) <0.005% at 1V out
Signal/Noise Ratio >110dB (32 ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency response ±0.3dB (20Hz – 20kHz)
Channel separation >60dB at 1kHz
Output impedance 6 ohm
GENERAL SPECIFICATIONS
Line In, Speaker Out
Continuous Output Power into 4 ohms and 8 ohms (Stereo) >150W (at rated THD, 20Hz – 20kHz, both channels driven)
IHF Dynamic Power 2 ohm 400W, 4 ohm 350W, 8 ohm 250W
THD (20Hz – 20kHz) <0.02% (250mW to 150W, 8 ohm and 4 ohm)
Signal/Noise Ratio >95dB (A-weighted, 500mV input, ref. 1W out in 8 ohm)
Clipping power >160W (at 1kHz 0.1% THD)
Peak output current >20A (in 1 ohm, 1ms)
Damping factor >150 (ref. 8 ohm, 20Hz to 6.5kHz)
Frequency response ±0.3dB (20Hz – 20kHz)
Channel separation >75dB (1kHz); >70dB (10kHz)
Input sensitivity (for 80W in 8 ohm) Line In: 490mV; Phono In: 7.5mV; Digital In: 24% FS
Supports bit rate/sample rate Up to 24bit/192kHz
Standby Power <0.5W
Frequency Band 2.402G – 2.480G
Maximum transmit power (dBm) 7dBm ± 2dBm
DIMENSIONS AND WEIGHT
Dimensions (W x H x D) 435 x 120 x 390mm
Net Weight 11.2 kg
Shipping Weight 13.6 kg
