VTL S-200 Signature

Hinta

18 700,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

VTL:n odotettu Signature-sarjan uusi stereopääte KT-88/6550-pääteputkilla. Täysin balansoitu rakenne. Signaalitieltä pois oleva Auto Bias-rakenne optimoi putkien käyttöiän ja takaa parhaan äänenlaadun kuuntelukerrasta toiseen. Teho 2x200W tetrodi-kytkettynä ja 2x100W triodikytkennällä – valinta helposti etupaneelista. MB-450 Signature Series III on vihdoin saanut pikkuveljen. Musta ja hopea.



  • Fully balanced differential circuit – even single-ended signal produces balanced signal at output
  • Fully balanced differential input and driver stages for increased signal swing, bandwidth and stability
  • Zero global Negative Feedback
  • Shorter, faster feedback loop for greater tonal control without phase shift
  • Superior handling of loudspeaker loads for greater signal stability
  • The amplifier is unconditionally stable, without the need for capacitor compensation
  • Tube-like JFET type current source maintains sonic integrity in single-ended mode
  • Lower impedance output stage for improved loudspeaker control
  • Proprietary designed interleaving and coupling in the balanced VTL Signature output transformer, for wider bandwidth and zero ringing
  • Variable user-adjustable DF feedback control to vary output impedance and damping factor for optimal matching to speaker load
  • Software microprocessor controlled
    • Tetrode/Triode Switchable
    • Auto Bias, Fault Sensing
    • Current in-rush limiting
    • Standby Mute function; with reduced tube current for increased tube life
  • 200 watts per channel in tetrode; 100 watts per channel in triode
  • Uses eight 6550 or KT-88 tubes
  • Adjustable regulated screen supply for stable operating point; discrete regulated input and driver supply for greater signal resolution and tonality
  • Adjustable precision-regulated bias supply for greater signal resolution and noise rejection and improved isolation from mains supply variations; output operating point does not change with AC power fluctuations
  • Autobias and fault sensing system to operate in fully balanced differential mode; amplifier is fully protected against output tube failure; no need for precision matching of output tubes
  • Film bypass of power supply caps for greater HF resolution

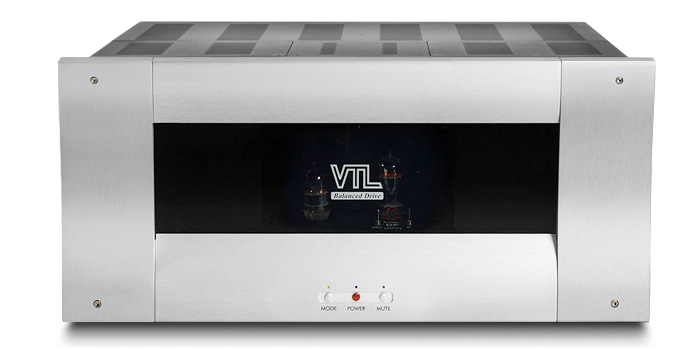

  • Extruded aluminum front panel with luxurious, modern look – black and silver options available
  • Rack mountable
  • Rigid construction and improved ventilation for lower operating temperature



” VTL had to be rightfully proud of the sound they were getting from the S-200. ” Neil Gader / The Absolute Sound

” There is no doubt in my mind that the VTL S-200 Stereo Signature made quite an auspicious debut. ” Jim Hannon / The Absolute Sound



” BEST OF 2014 AMPLIFIERS ” HI-FI NEWS

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
Vacuum Tube Complement8 x 6550 or KT-88, 2 x 12AT7, 2 x 12BH7
Output power
20Hz – 20kHz <2.5% THD
Tetrode: 200W, Triode: 100W
into 5Ω load
Input sensitivityVariable between 700mV and 1.6V, depending upon DF setting
Input impedance45kΩ
Load setting
Optimum load range4Ω – 8Ω
S/N Ratio-110dB, 120 Hz
Power consumptionIdle = 330W, Full power = 1000W
Primary mains fuse ratings100/120V = 15A Ceramic Slo Blo, 220/240V = 8A Ceramic Slo Blo
Input fuse ratings 100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
Logic fuse100/120V = 1A Ceramic Slo Blo, 220/240V = 1A Ceramic Slo Blo
B+ fuse ratingsPlate Fuse – 1.0A fast acting 600V
Dimensions W x D x H18.5 x 18 x 9 inches (47 x 45.7 x 23 cm)
Weight105lbs (47.6Kg) unpacked, 120lbs (54Kg) packed
