Audiolab 9000A

Hinta

2 290,00 (sis. alv)

Toimitusaika: 6-12 arkipäivää

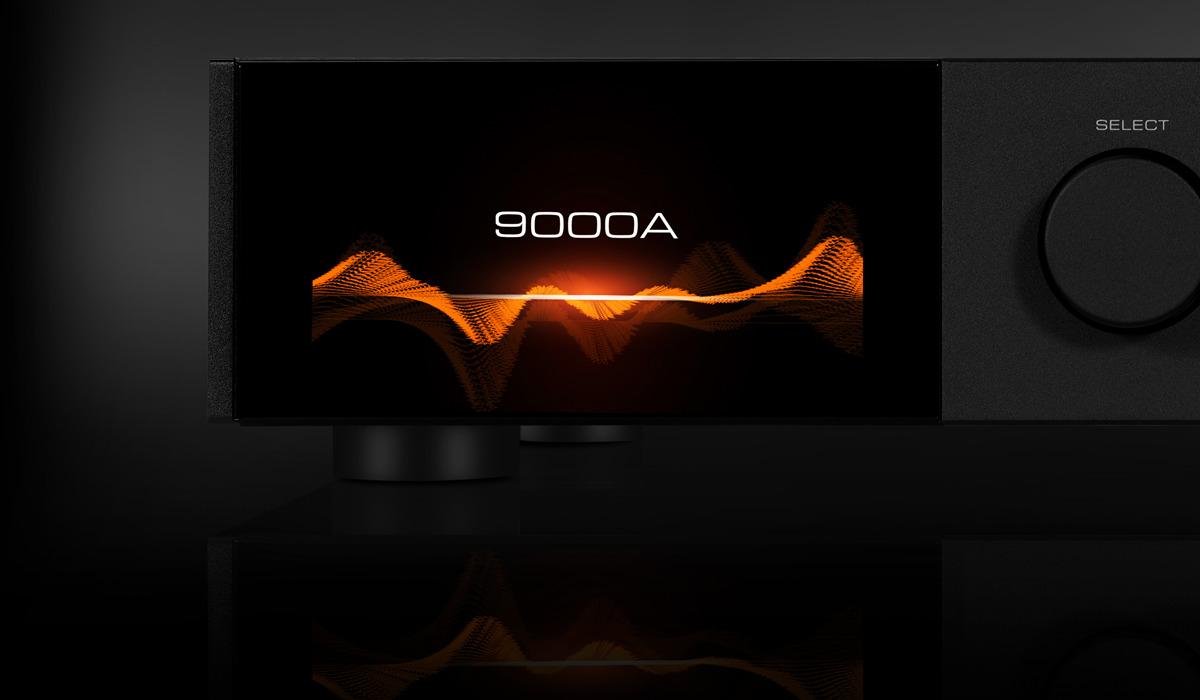

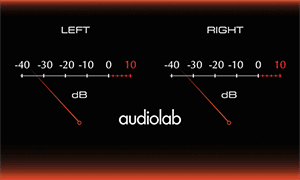

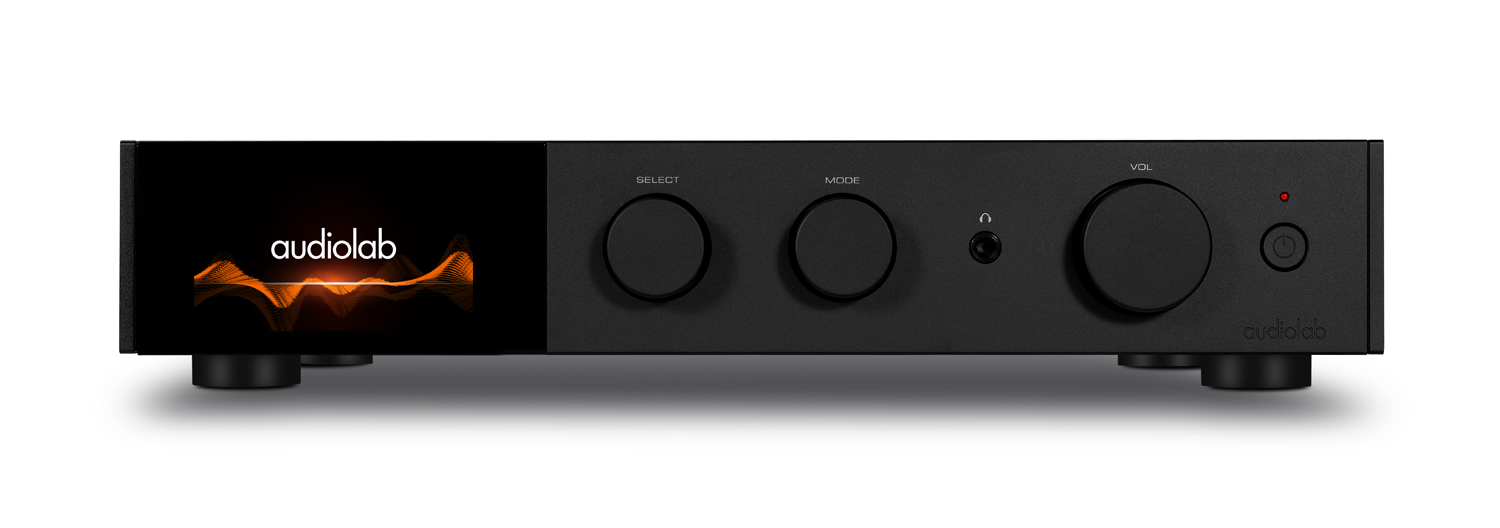

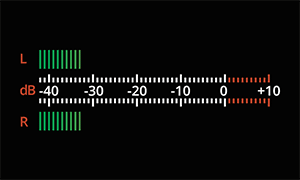

Audiolabin uusi 9000-sarjan stereovahvistin. Class AB-luokan toteutus äänenlaadun ehdoilla. Jatkuva teho 2x100W 8ohm ja 2x160W 4ohm. ESS Sabre 9038Pro 32-bittinen DAC – optinen x 2, koaksiaalinen x 2 ja USB-tulo. Laadukas kuulokevahvistin luurinautiskelijoille. Huolella toteutettu levysoitinaste MM- ja high output MC-äänirasioille. Selkeä IPS LCD-näyttö, jossa valittavissa kahdet erilaiset VU-tehomittarit. Näyttö voidaan myös sammuttaa. Kauko-ohjain.

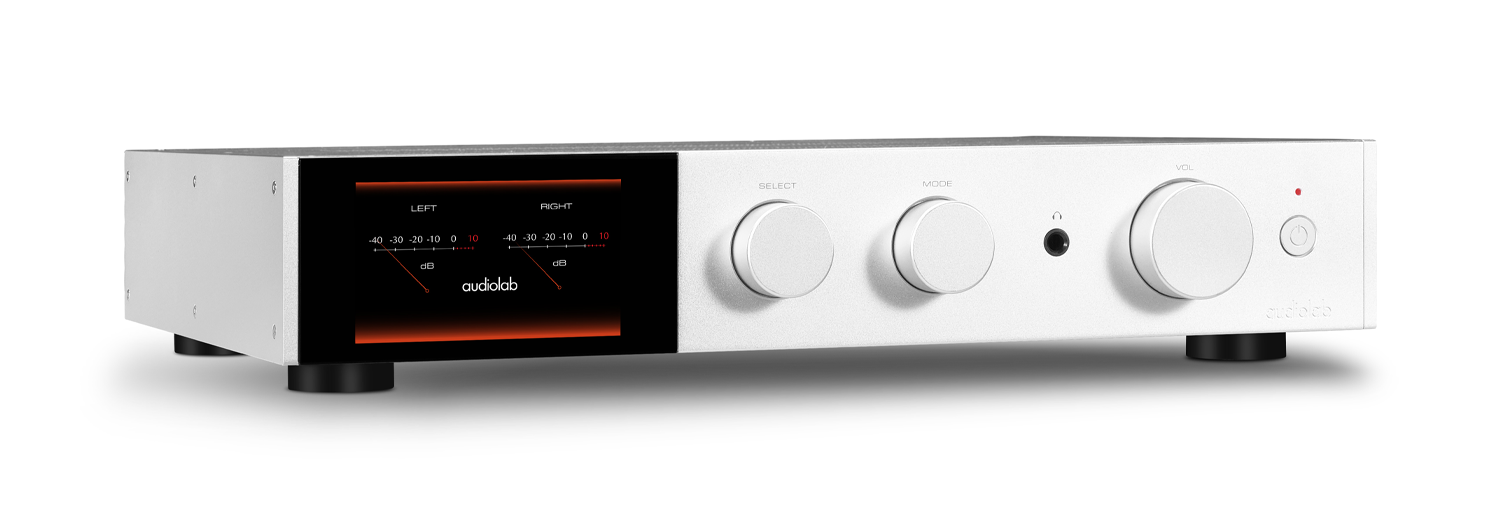

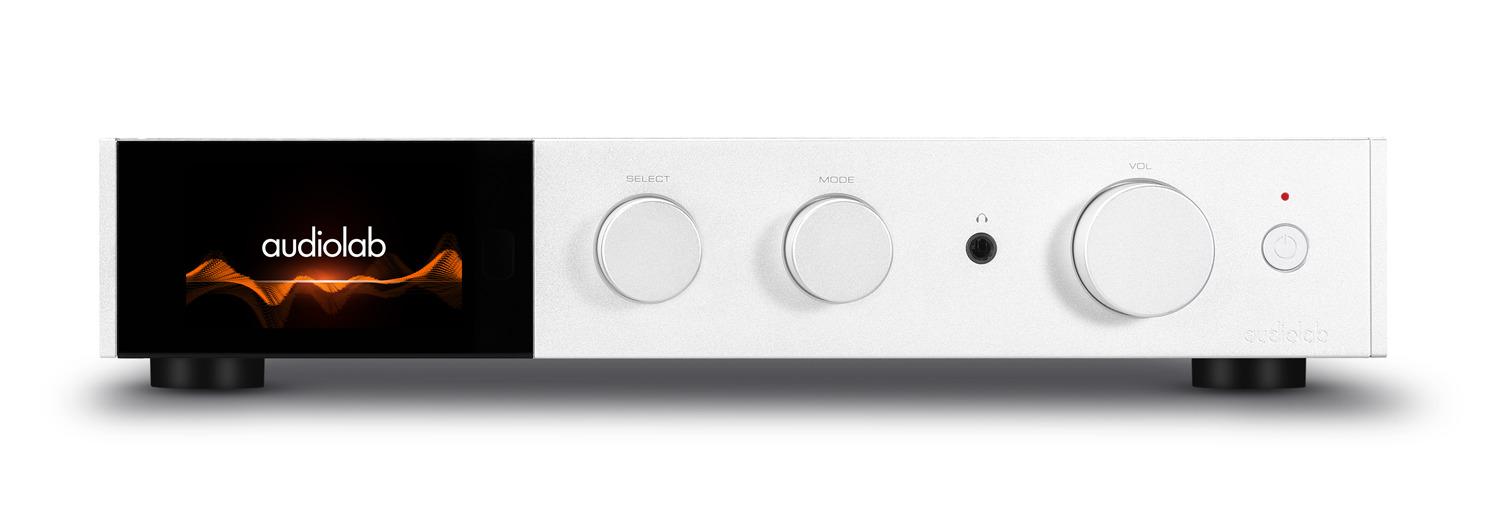

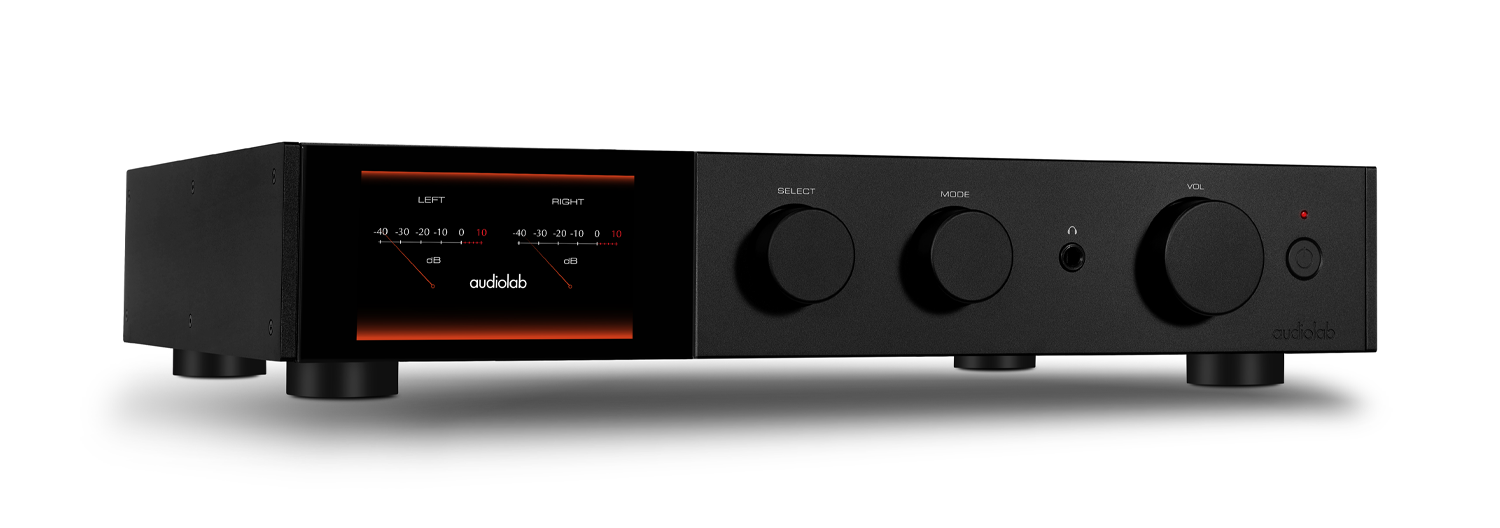

Musta tai hopea



The 9000A’s discrete Class AB power amp stage delivers 100W per channel into 8 ohms (160w per channel into 4 ohms!). Unlike over-specified competitor models, the genuine 100W per channel will put the 9000A up against the best in its class. Referring to the standards set with the audiolab 6000A (rated at 50W per channel), the 9000A’s 100W per channel will undoubtedly satisfy the most demanding of loudspeakers and their power-hungry masters.

A key to the audiolab performance is the world-famous CFB (Complementary Feedback) topology, which ensures superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. An all-new and custom specified 320VA toroidal transformer, followed by 4 x 15,000uF reservoir capacity (60,000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.

In an effort to maintain consistent signal purity, with line input signals passing to a precision analogue volume stage, the preamp section is kept as simple as possible. As with all of Jan Ertner’s designs, the circuity is a work of art in more than layout and architecture. The very design protects the sensitive preamp section from noise interference and colouration – a key cornerstone of the audiolab philosophy.

The 9000A features the latest ESS 9038PRO flagship 32-bit DAC chip. Using the critically acclaimed patented HyperStream® II architecture and Time Domain Jitter Eliminator, the ES9038PRO delivers an unprecedented performance level that will satisfy the needs of the most demanding audio applications – fitting an amplifier of the 9000A’s calibre.

Years of experience and countless ESS-equipped models mean that audiolab is more than familiar with making the most of this technically excellent but challenging DAC technology. Great attention has been paid in developing a system that allows audiolab electronics and ESS DAC technology to offer the best in audiophile performance.

The amp’s four S/PDIF digital inputs – two coaxial and two optical – handle hi-res PCM data up to 24-bit/192kHz and benefit from a host of user-selectable digital filters that allow the user to optimise the response to suit the source file and bandwidth of the partnering equipment.

PCM audio is supported to 32-bit/768kHz, alongside DSD to 22.5MHz (DSD512). Every significant hi-res and lossless audio format is catered for, including FLAC, ALAC, AIFF and WAV, as well as compressed legacy formats.

Lisätiedot

Väri

musta, hopea

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

9000A Specifications

Model9000A
General DescriptionIntegrated Amplifier
Design Philosophy and Core Technology2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC
4.3″ (800 x 480mm) Large Size Full View IPS LCD
Built-in Certified MQA Full Decoder (PC USB, Coax/Optical)
Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Dedicated Current-Feedback Headphone AMP
Integrated / PRE-POWER / PRE Only Modes
USB Upgrade Support

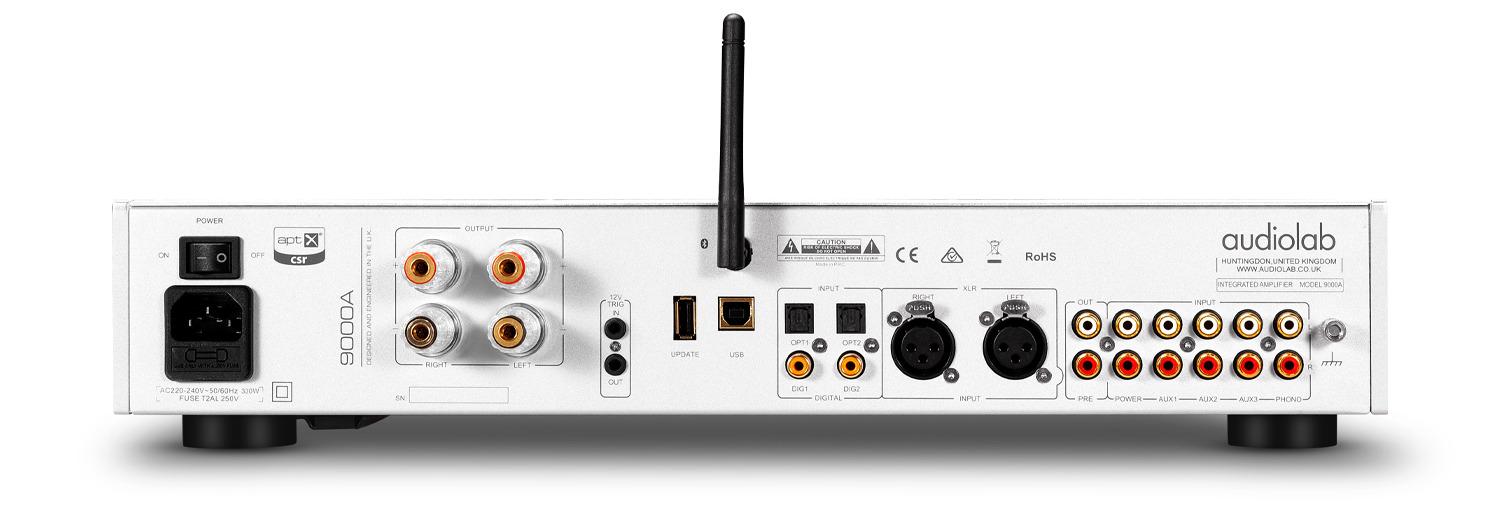

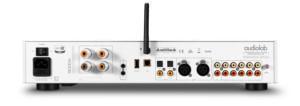

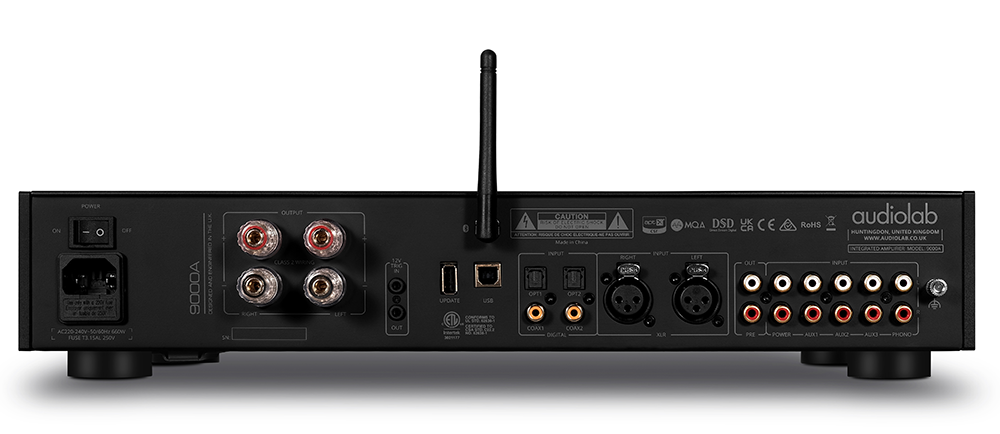

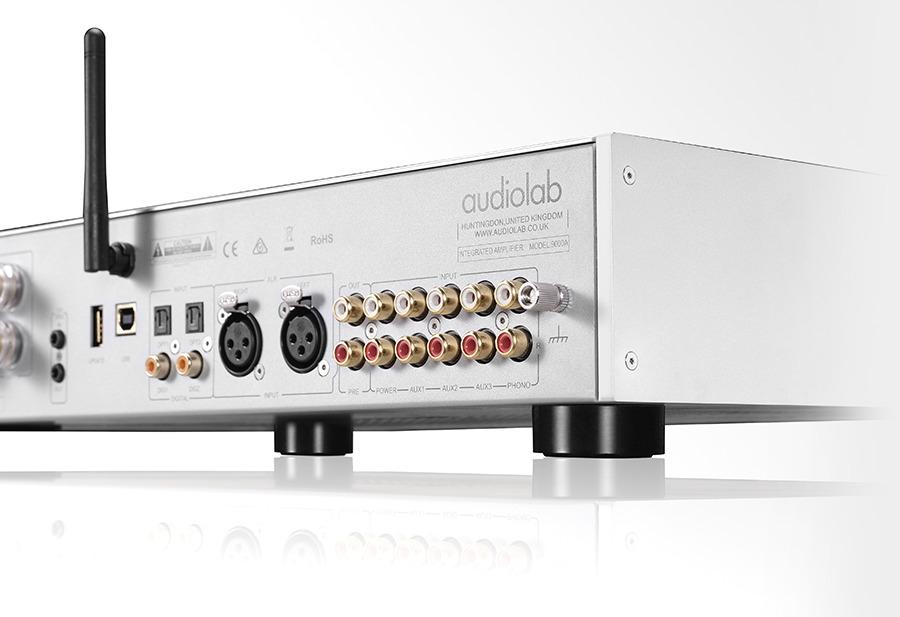

Inputs3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
Outputs1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling FrequencyOptical / Coaxial: 44.1kHz-192kHz;
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain (max.)+6dB (Line), +53dB (Phono MM)
Input Sensitivity1Vrms (Line, Volume = 0dB);
2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
Input Impedance10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD)< 0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response20Hz-20kHz (+/-0.1dB)
Output Voltage2.3V max. (Volume = 0dB)
Output Impedance120 ohms
Signal-to-Noise Ratio> 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
DAC
D to A ConverterES9038Pro
Total Harmonic Distortion (THD)< 0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz)2.1Vrms
Max. Sampling FrequencyOptical, Coaxial: 192kHz;
PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N)> 117dB (A-weighted)
Power Amplifier Section
Gain+29dB
Rated Power Output2 x 100W (8 ohms, THD<1%);
2 x 160W (4 ohms, THD<1%)
Frequency Response20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD)<0.002% (1kHz @ 50W / 8 ohms)
Input Sensitivity1Vrms
Signal-to-Noise Ratio (S/N)> 110dB (A-weighted)
Max. Output Current15A
Headphone Amplifier
Total Harmonic Distortion (THD)< 0.01% (1kHz, 50mW )
Output Impedance2.35 ohms
Load Impedance20-600 ohms
General
Standby Power Consumption<0.5W
Net Weight9.4kg
Gross Weight11.2kg
Dimensions (mm) (W x H x D)444 x 342 x 89
Carton Size (mm) (W x H x D)514 x 470 x 161
FinishBlack / Silver
Power Requirements220-240V ~ 50/60Hz;
(depending on region)100-120V ~ 50/60Hz
Standard AccessoriesPower Cord, Remote Control, User Manual, Antennas, etc.
