Specifications

• General Description:
  • Power Amplifier
• Design & Technology:

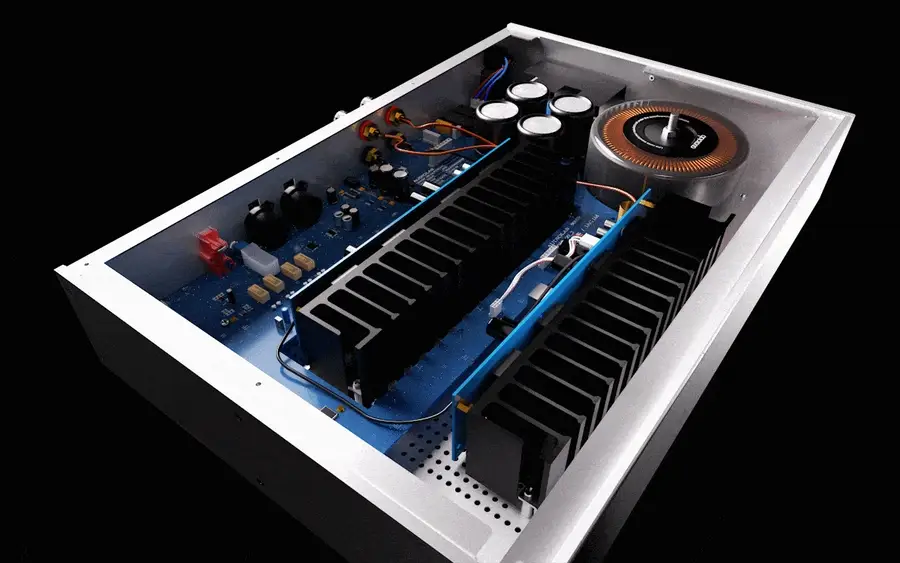

  • Class AB power amplifier
  • CFB (Complementary Feedback Technology)
  • Stereo/Bridge mode

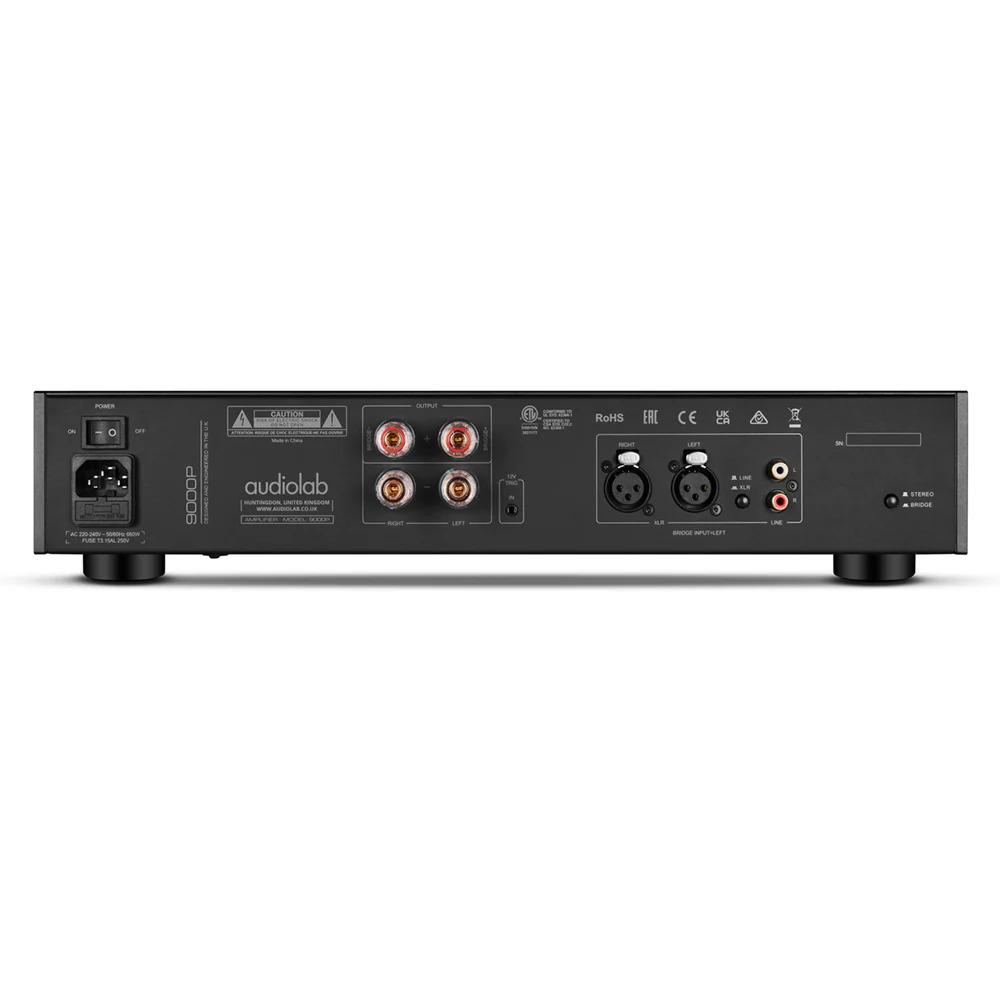

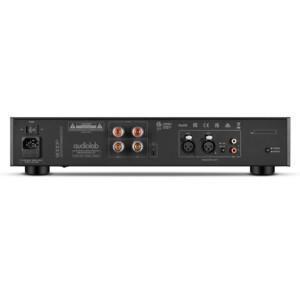

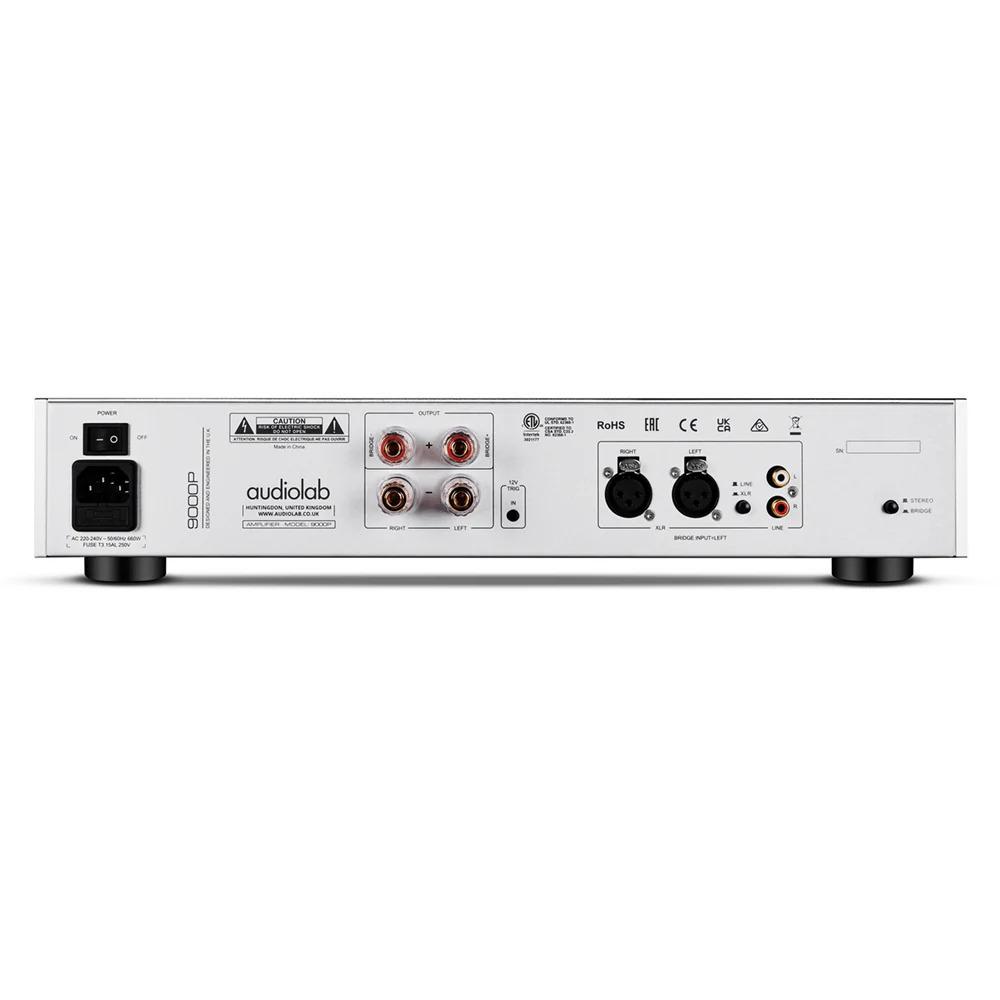

• Inputs:
  • 1 x Analogue
  • 1 x XLR
  • 1 x 12V Trigger
• Outputs:
  • 1 x Stereo Speaker

Power Amplifier Section (STEREO):

• Gain:
  • 29dB (RCA)
  • 23dB (XLR)
• Rated Power Output:
  • Stereo:
    • 2 x 100W (8 ohms, THD <1%)
    • 2 x 160W (4 ohms, THD <1%)
  • Bridged (Mono):
    • 300W (8 ohms, THD <1%)
    • 380W (4 ohms, THD <1%)
• Frequency Response: 20Hz – 20kHz (+/-0.3dB)
• Total Harmonic Distortion (THD): <0.002% (1kHz)
• Input Sensitivity:
  • 1Vrms (RCA)
  • 2Vrms (XLR)
• Input Impedance: 10k ohms
• Signal-to-Noise Ratio (S/N): 112dB (A-weighted)
• Max. Output Current: 15A

General Specifications:

• Standby Power Consumption: <0.5W
• Power Requirements (depending on region): 220-240V – 50/60Hz,  100-120V – 50/60Hz
• Weight:
  • Net: 9.2kg
  • Gross: 10.6kg
• Dimensions (W x H x D): 444 x 90 x 327 mm

Standard Accessories:

• Power Cord
• User Manual

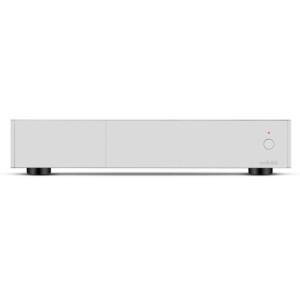

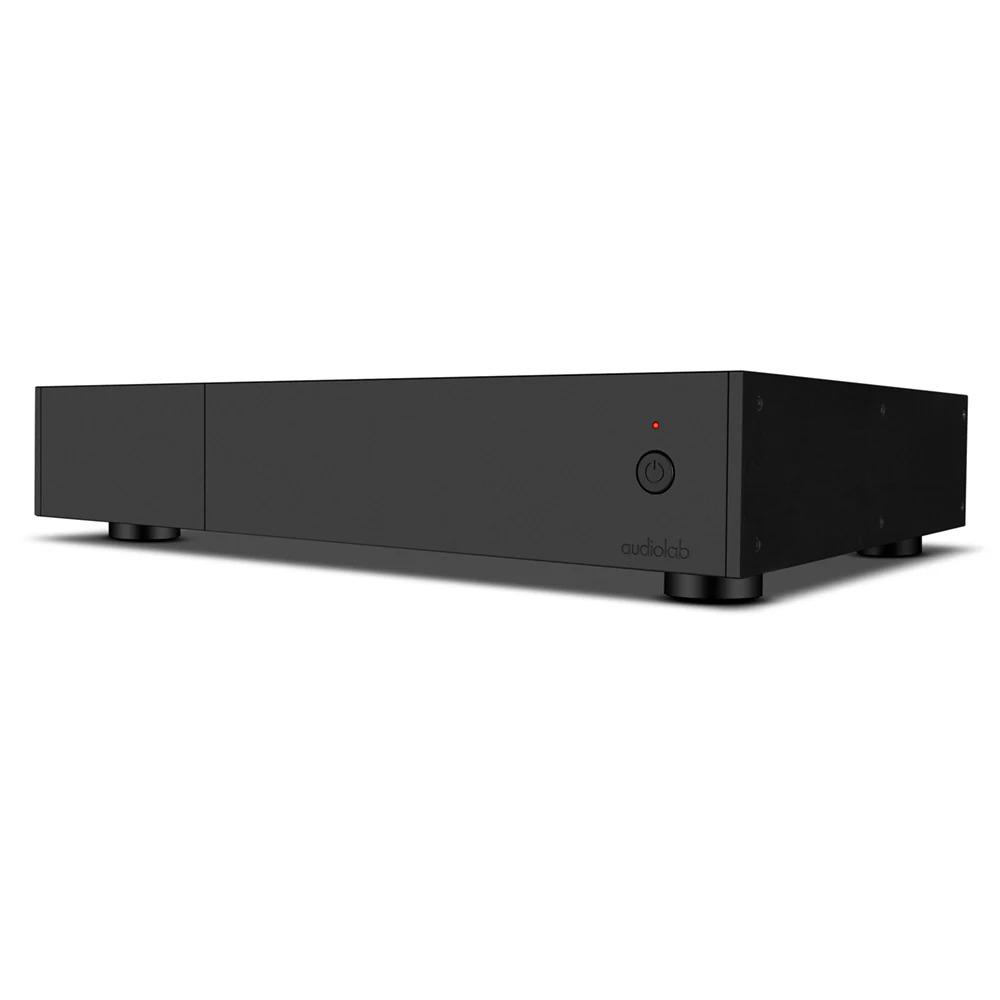

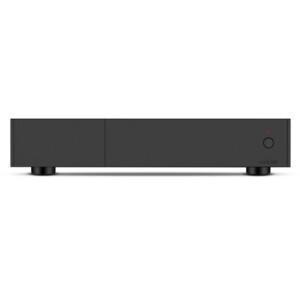

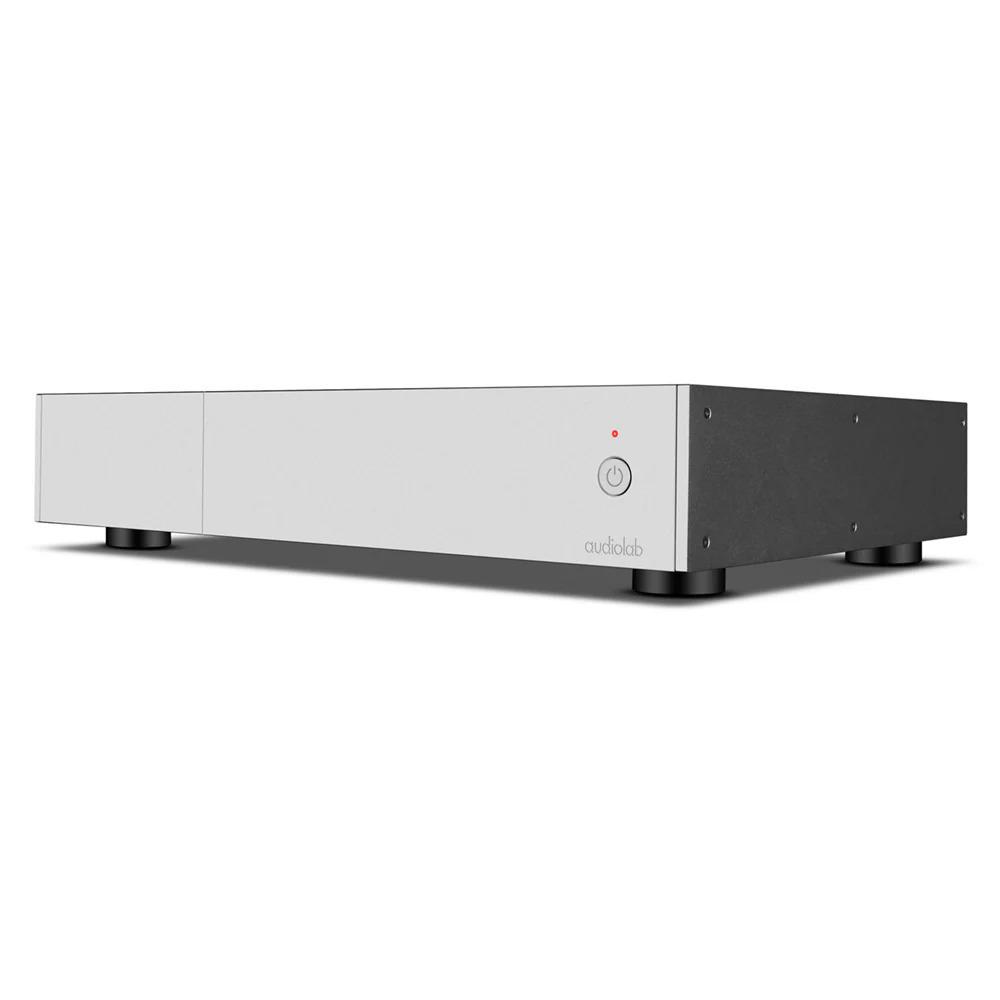

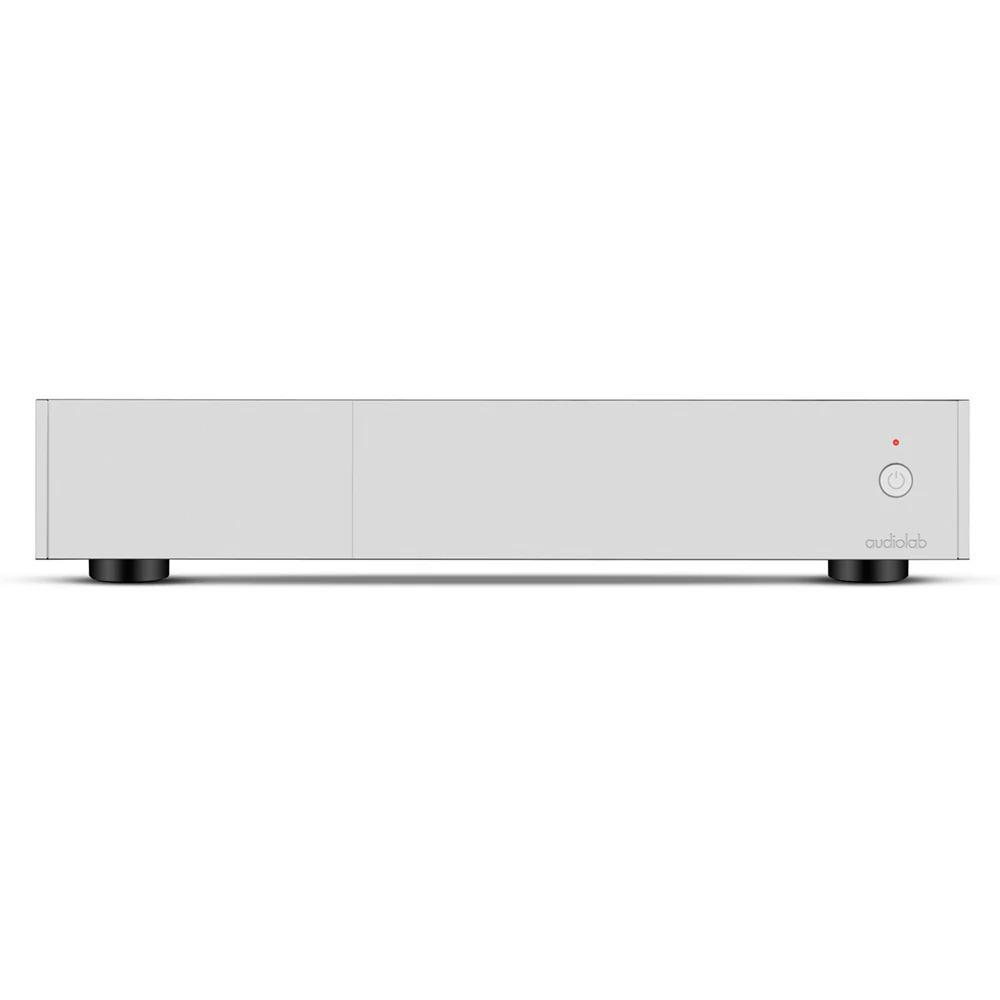

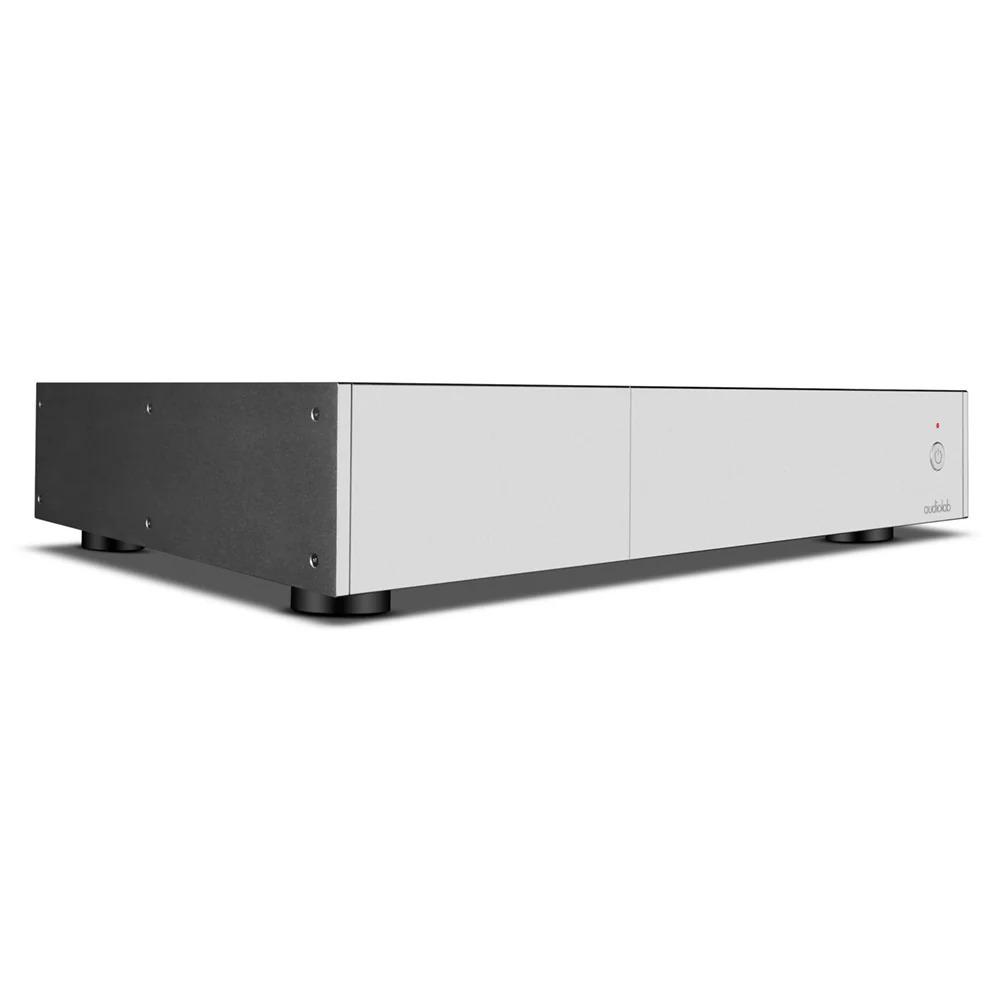

Värit: musta tai hopea
