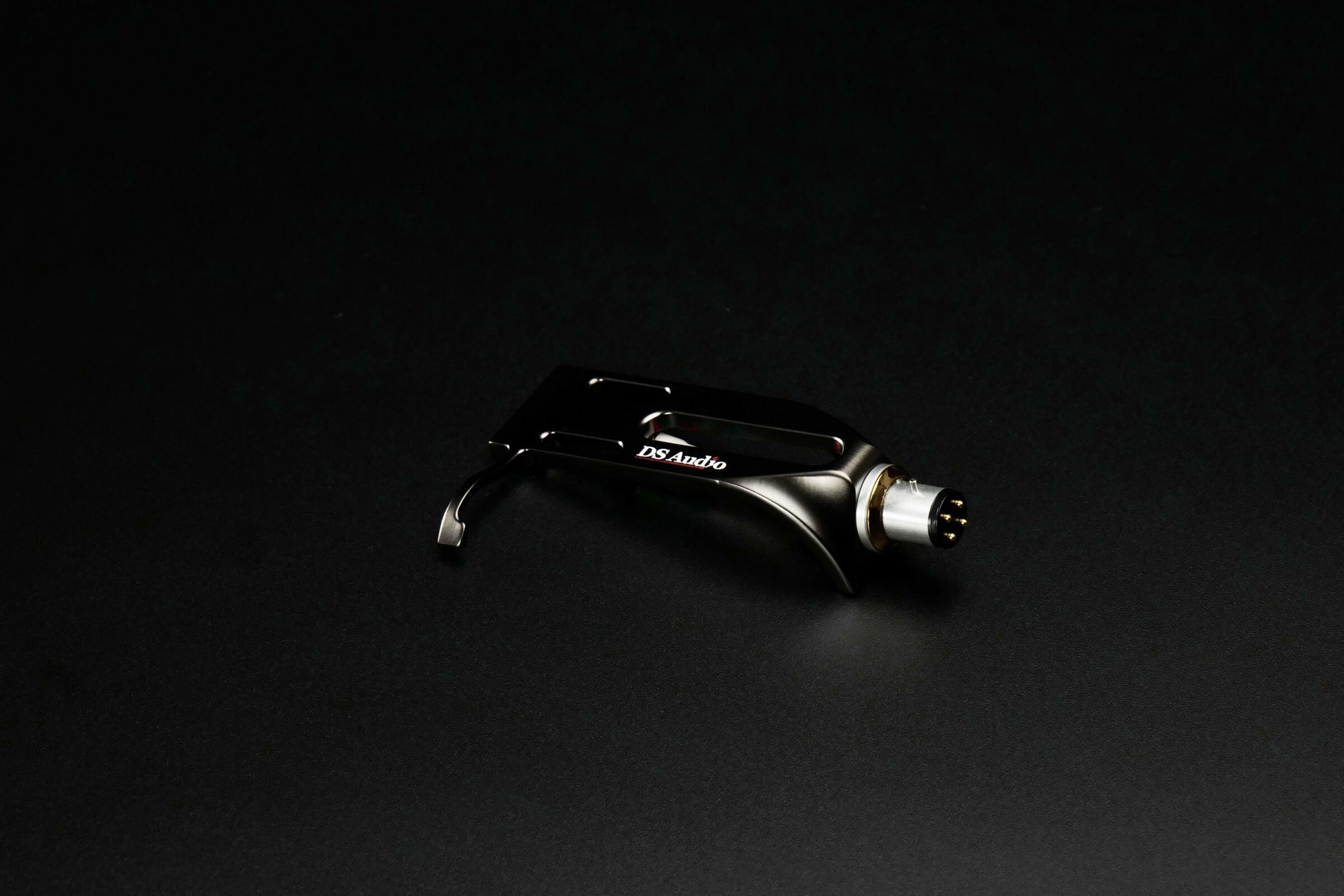

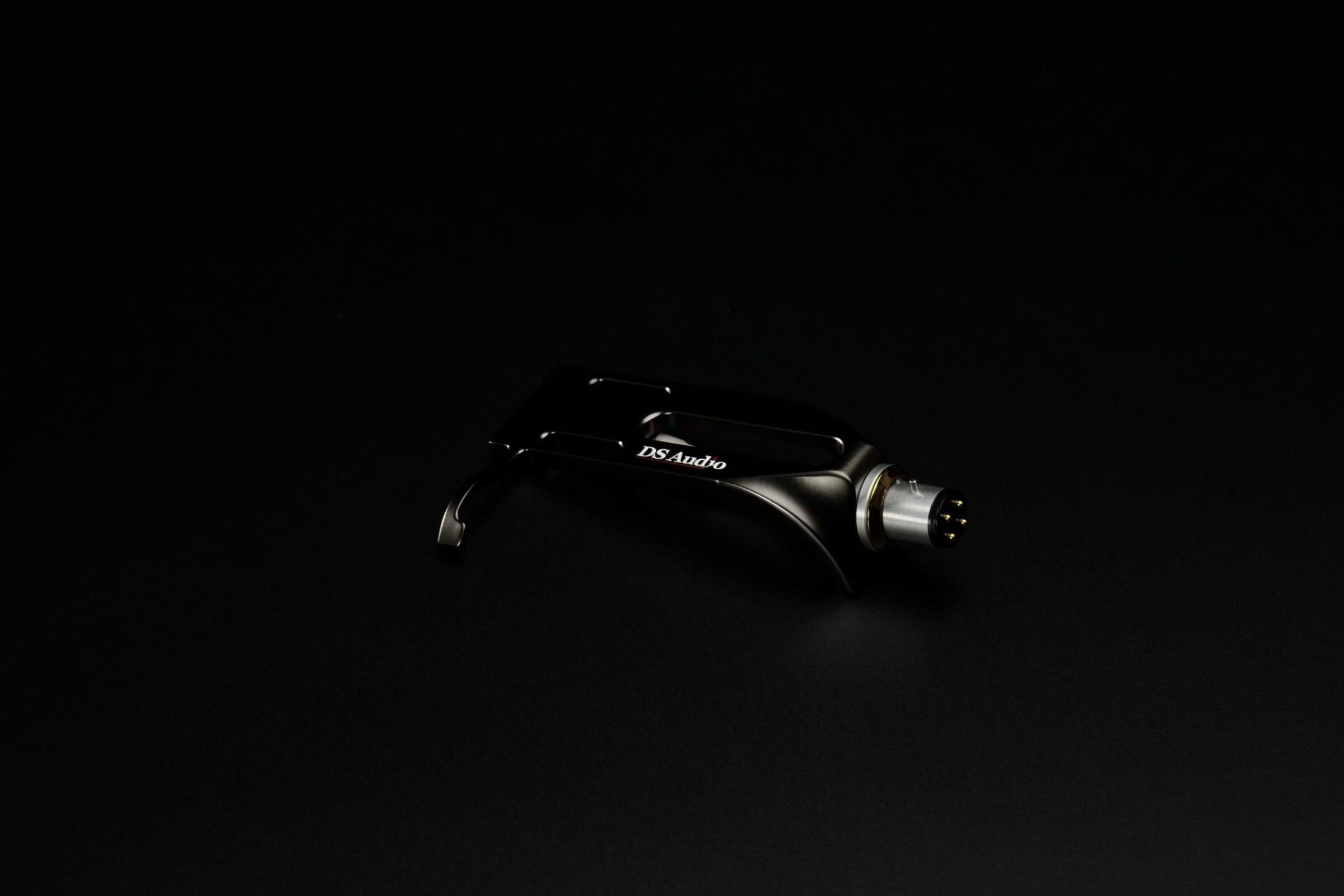

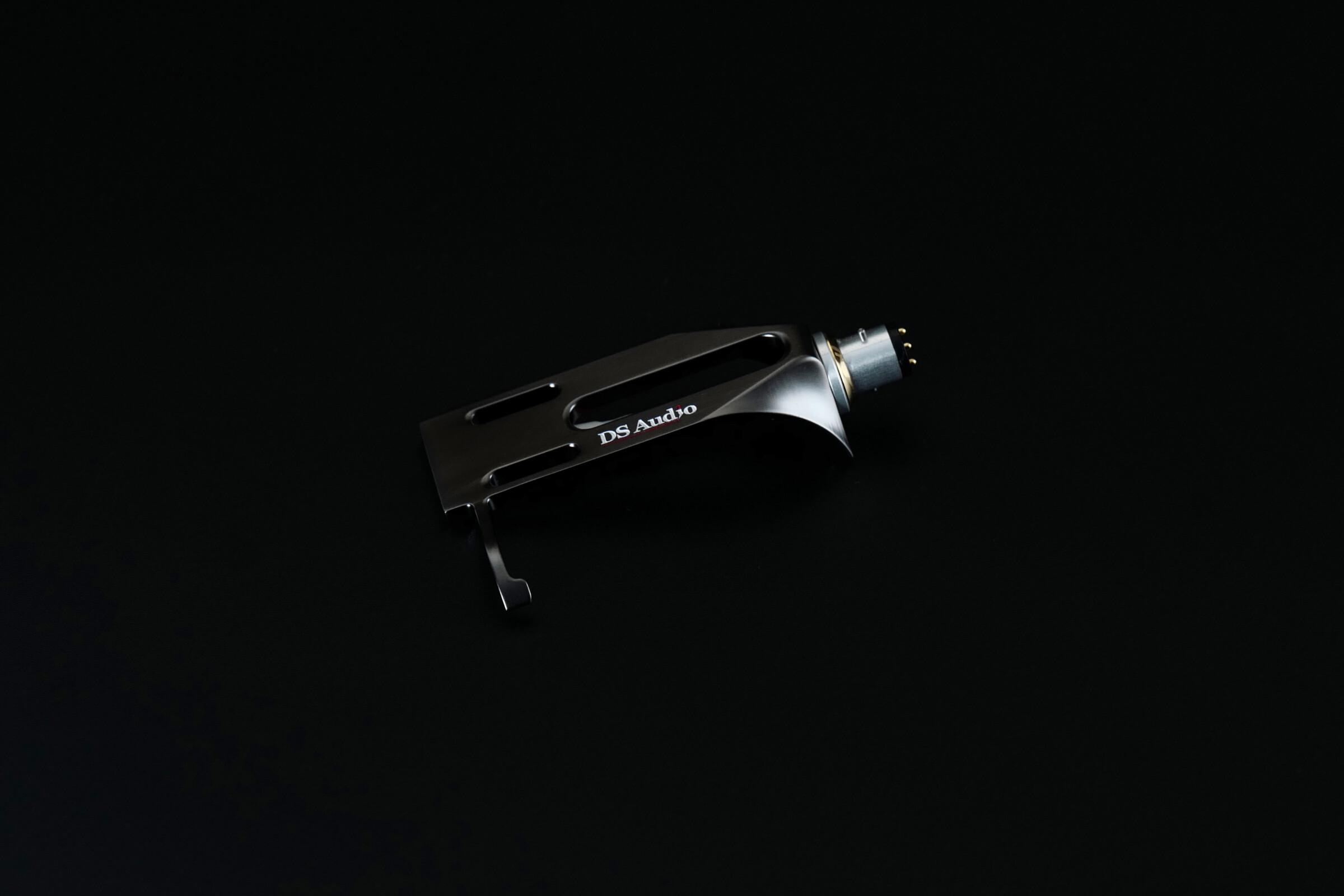

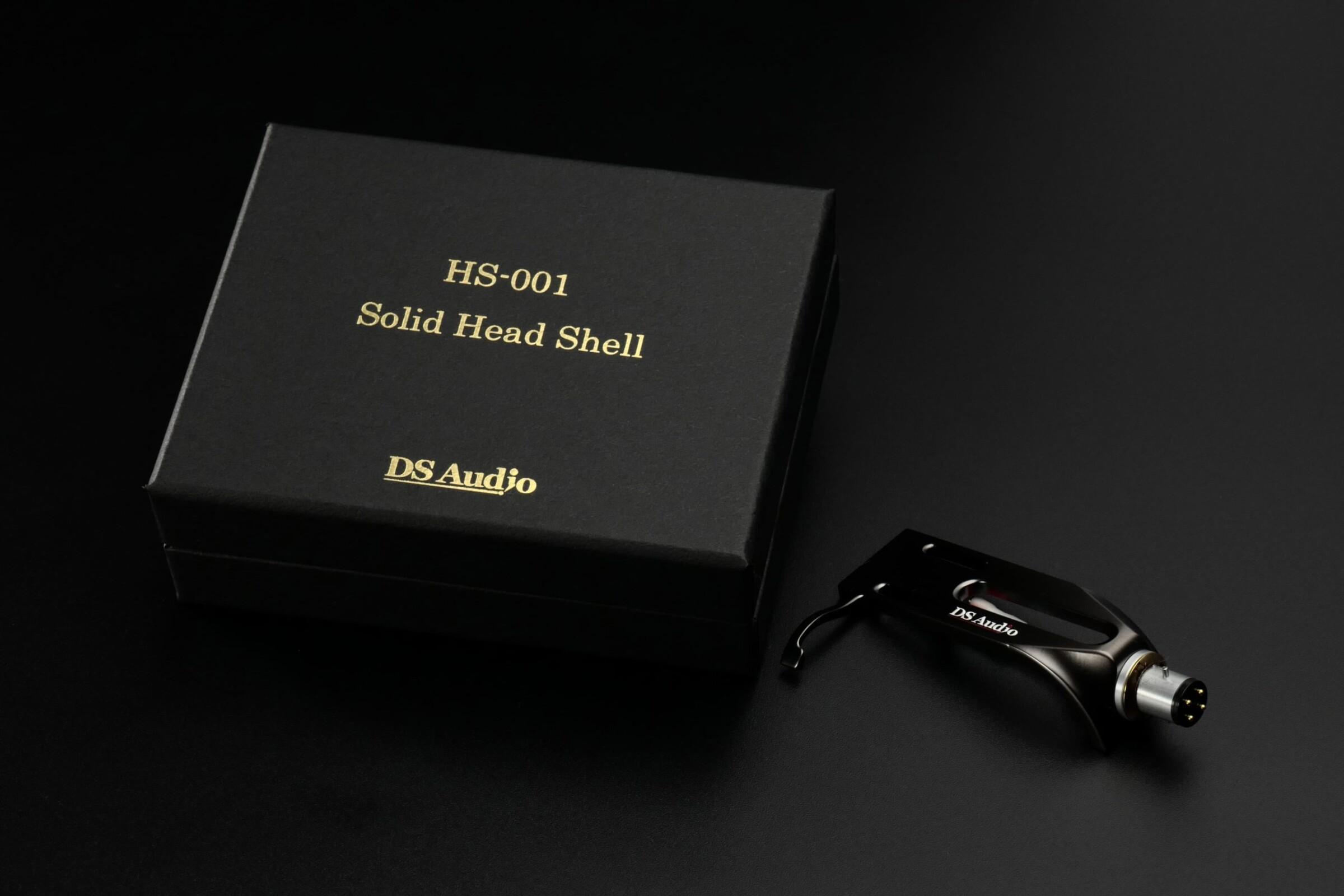

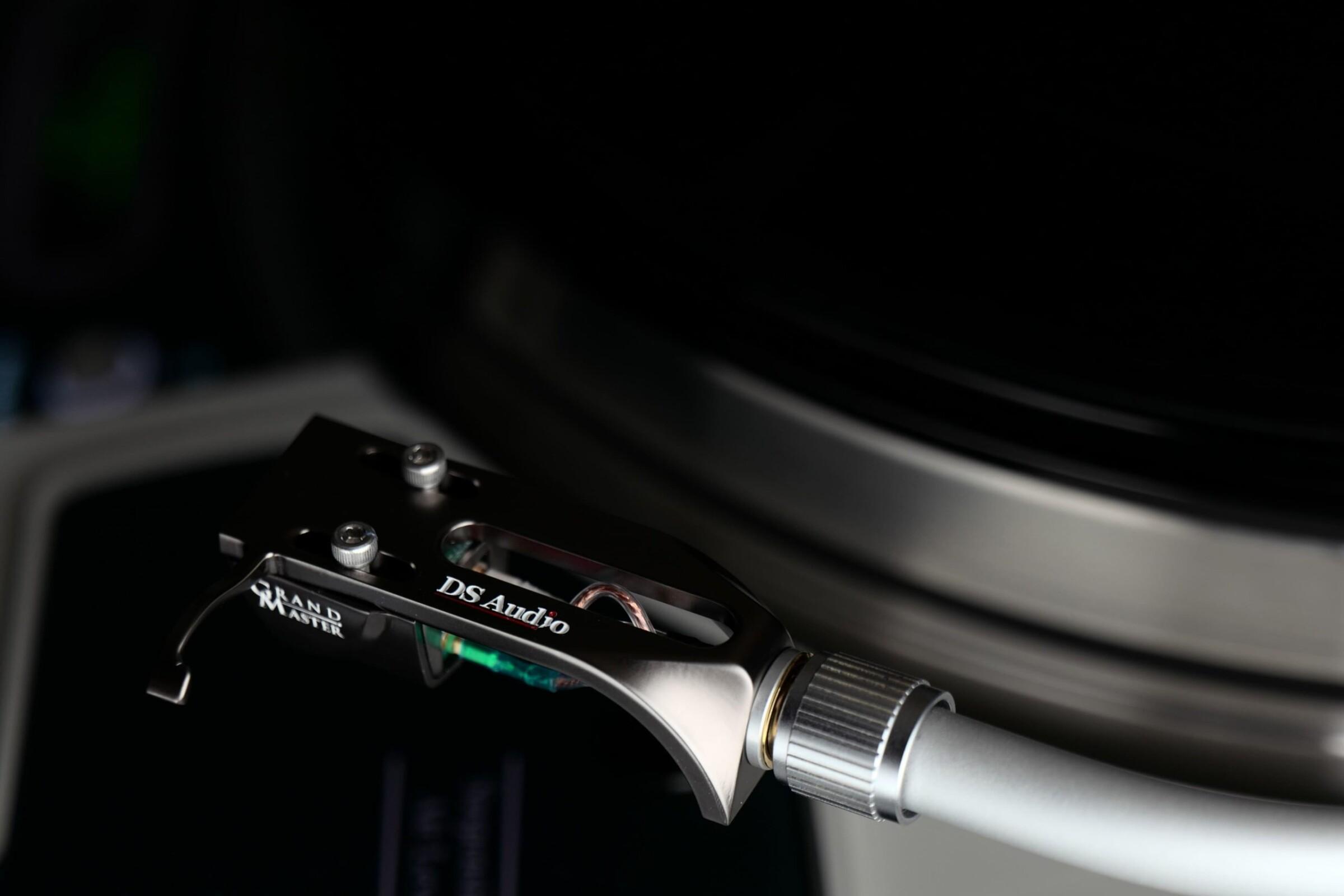

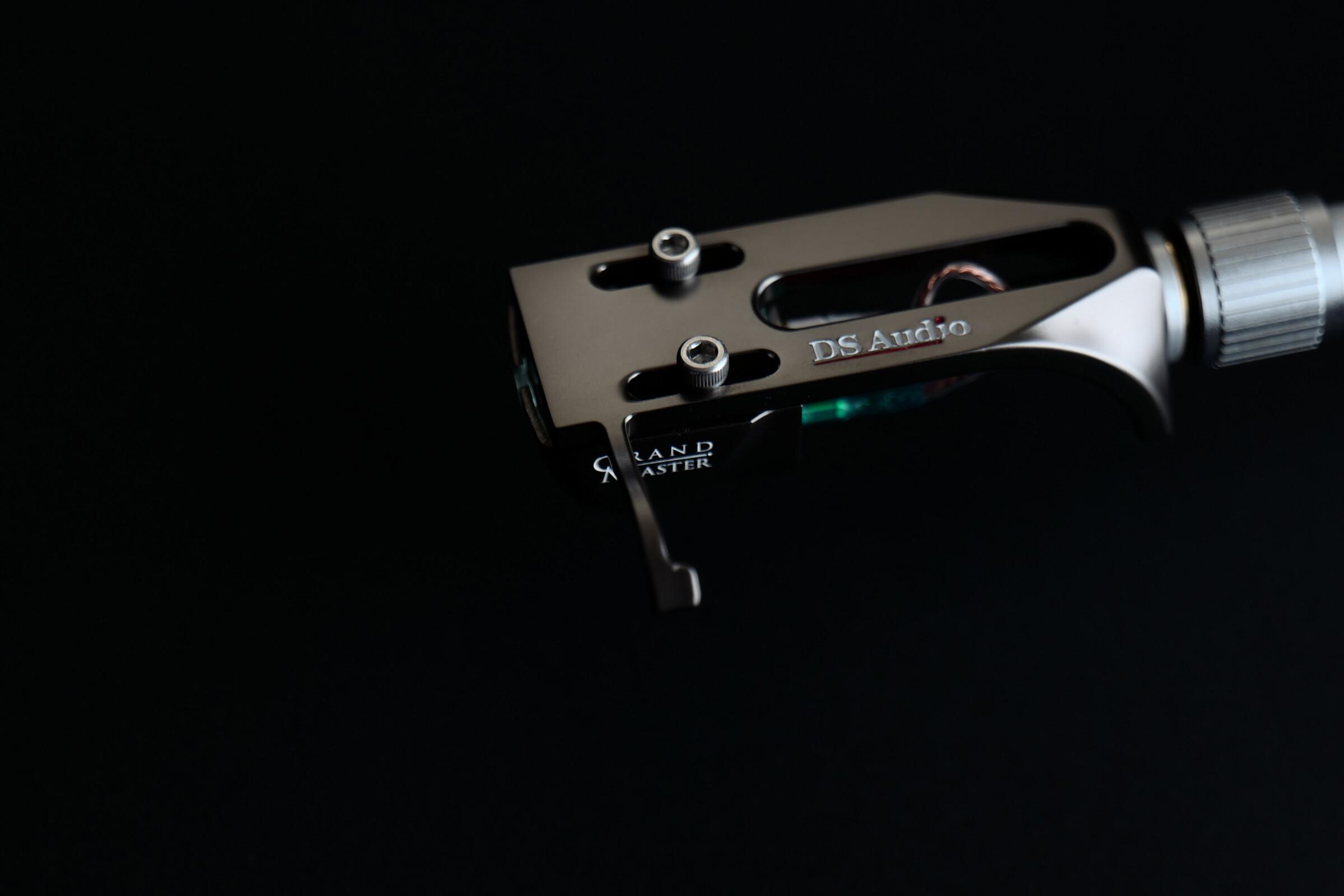

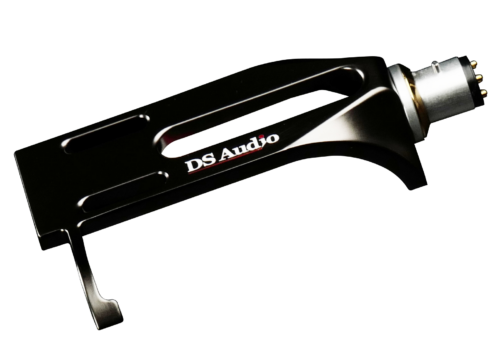

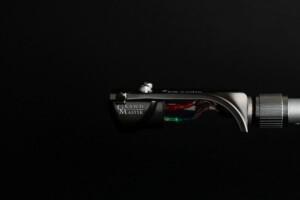

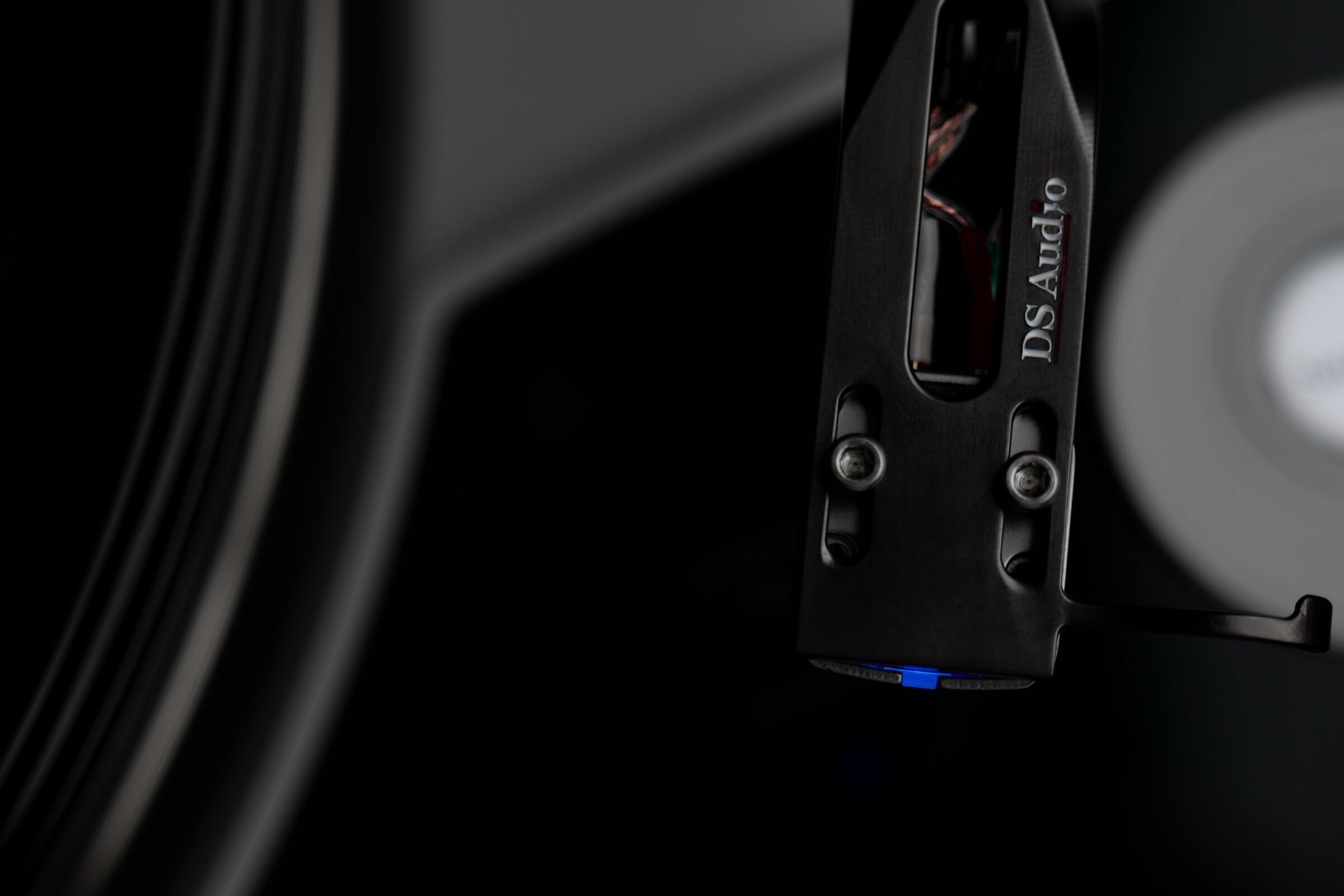

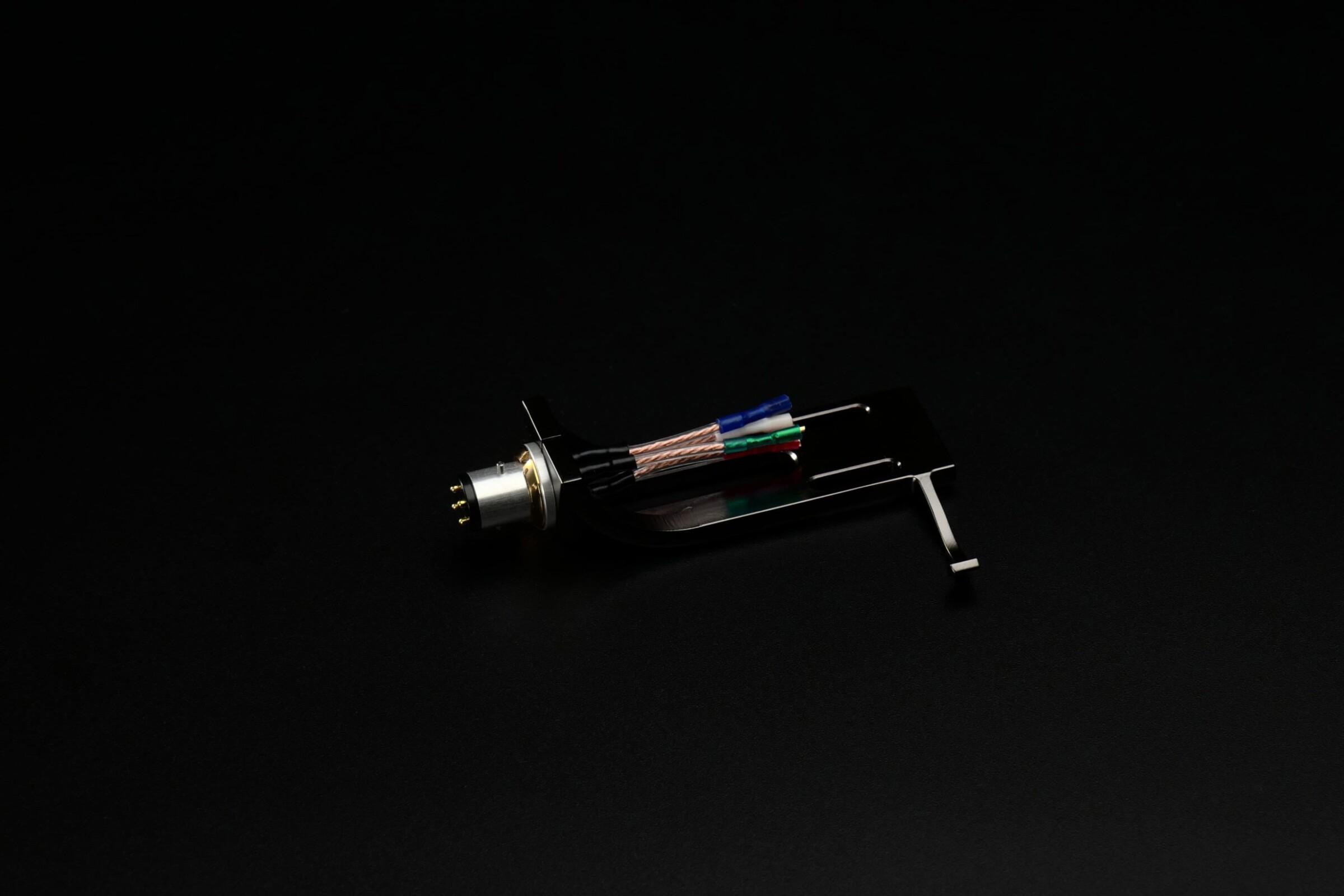

DS Audion tinkimätön rasiakelkka SME-kiinnityksellä. Valmistajan mukaan vaatimattomasti ”The best sounding headshell of the world.” Kahdella kiinnitystapilla yhden sijaan. Materiaali ultraduralumiinia. Kullatut liitinpinnat kelkan päässä ja johdoissa. Johdot japanilaista Litz-kaapelia. Paino 10,5g. Japanilaista laatua Kanagawasta.
-
Reduce the number of contacts with the connector, make the contact with the tonearm more solid, and increase the strength of the headshell body.

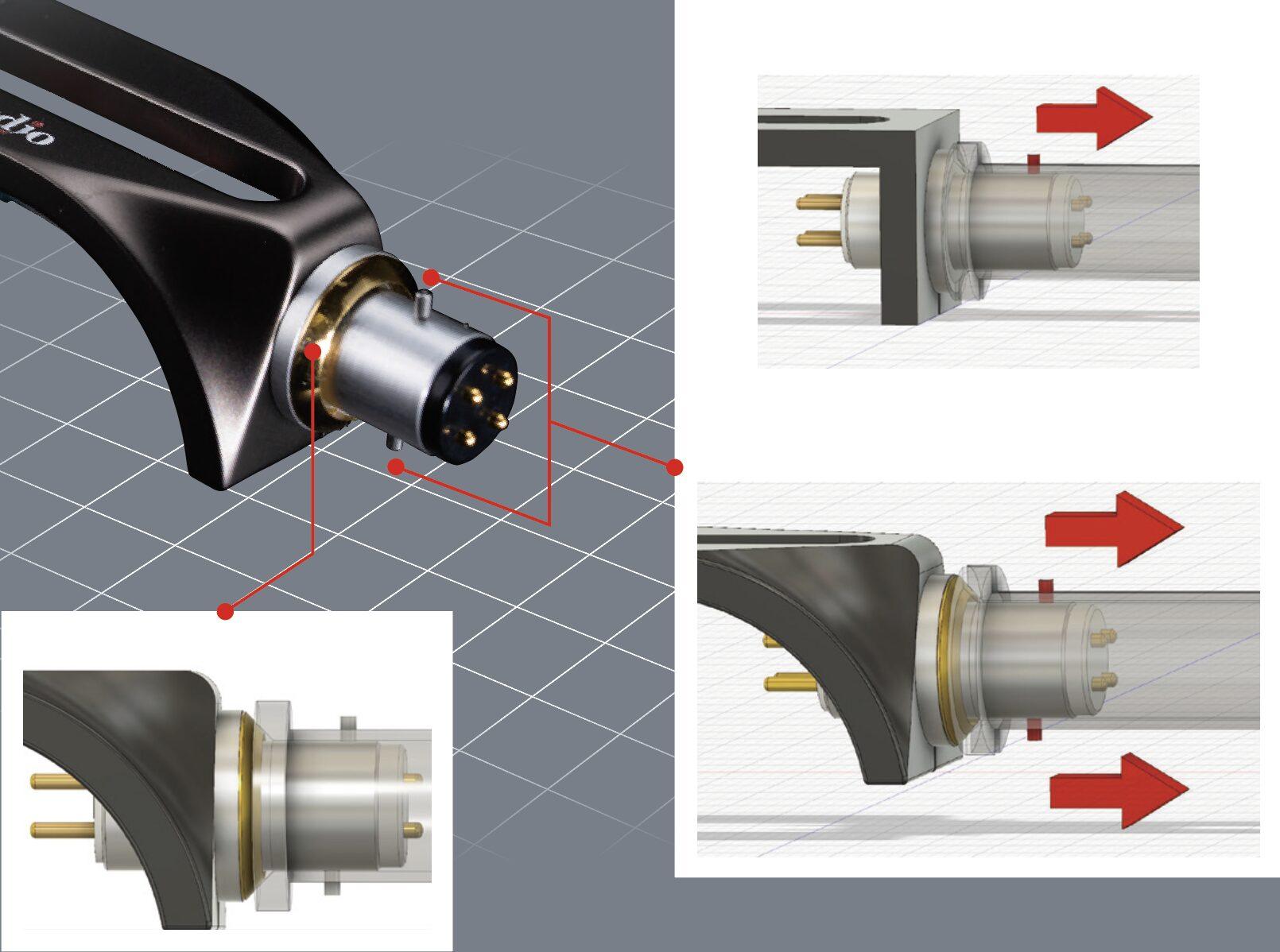

A vertical pin structure achieves uniform pressure on electrical contacts
Contact surface stabilized by spherical washer

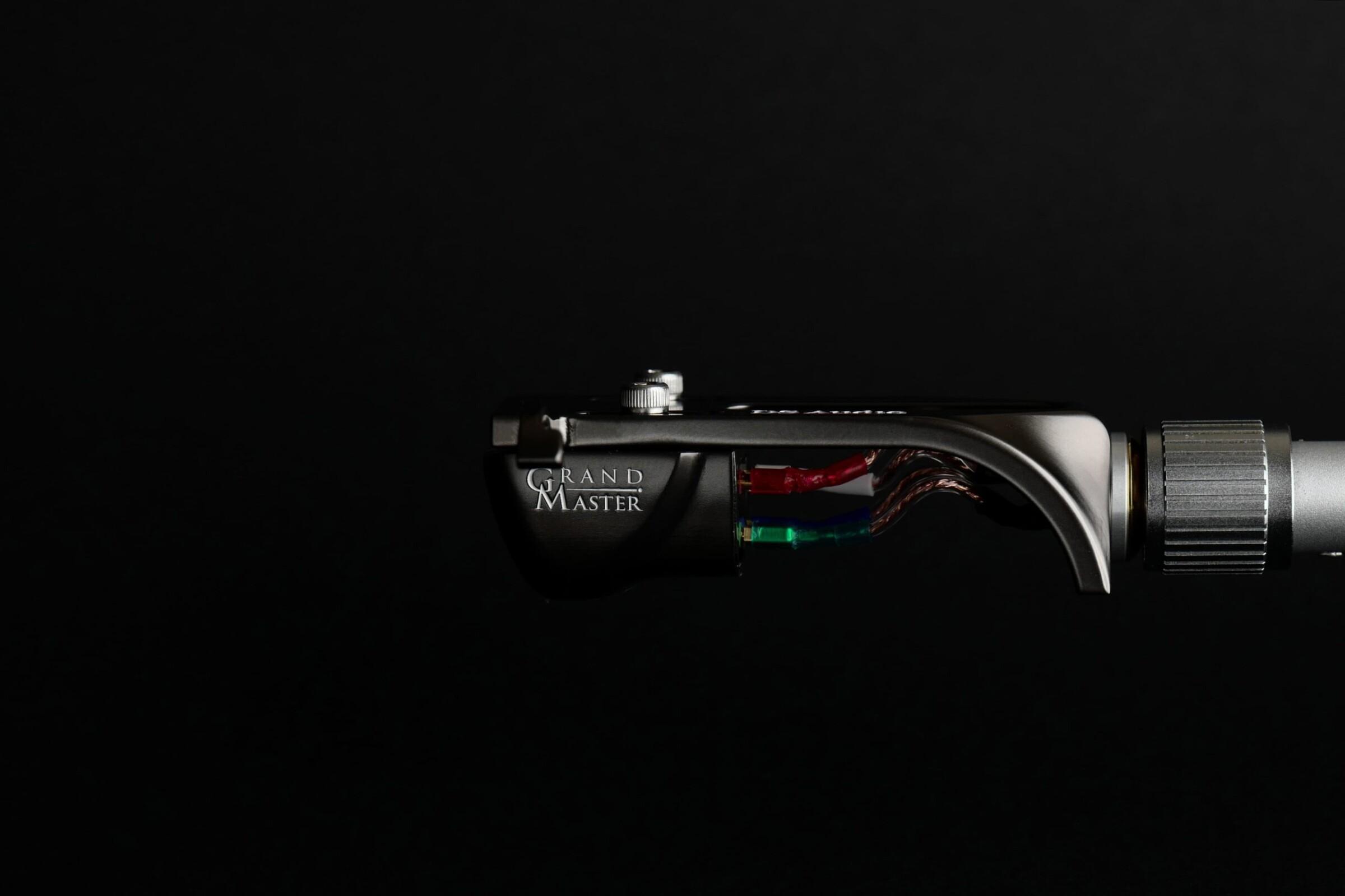

Conventional headshells have a connecting pin attached only to the upper side, causing uneven contact pressure between the tonearm and the headshell. However, the HS-001 Solid Headshell adopts an upper and lower pin structure, equalizing the pressure on the contacts and applying force evenly across the connection to the tonearm. Additionally, we use a special spherical headshell washer (developed by DS Audio) independently at the tonearm’s contact point. This enables superior stability over the entire circumference of the contact point, providing improved resonance control.Machined Ultra Duraluminum

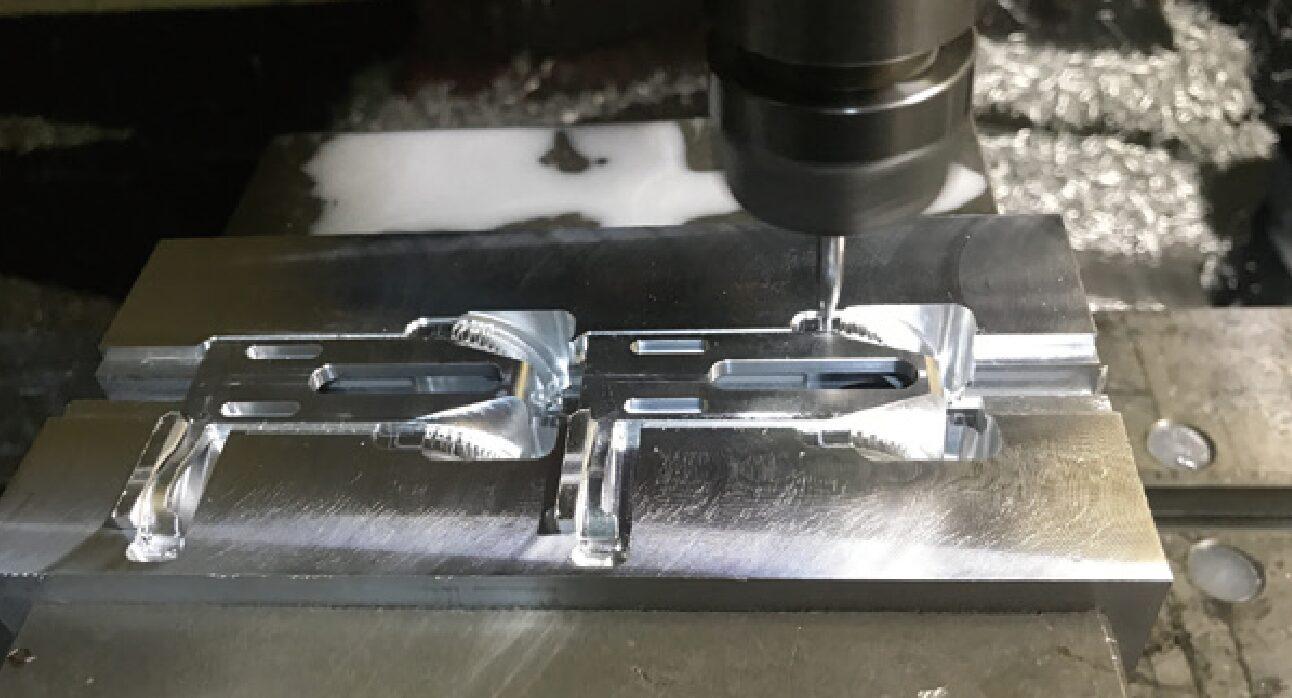

DS Audio precision machines each HS-001 out of a solid billet of duralumin for the ultimate rigidity and resonance control.

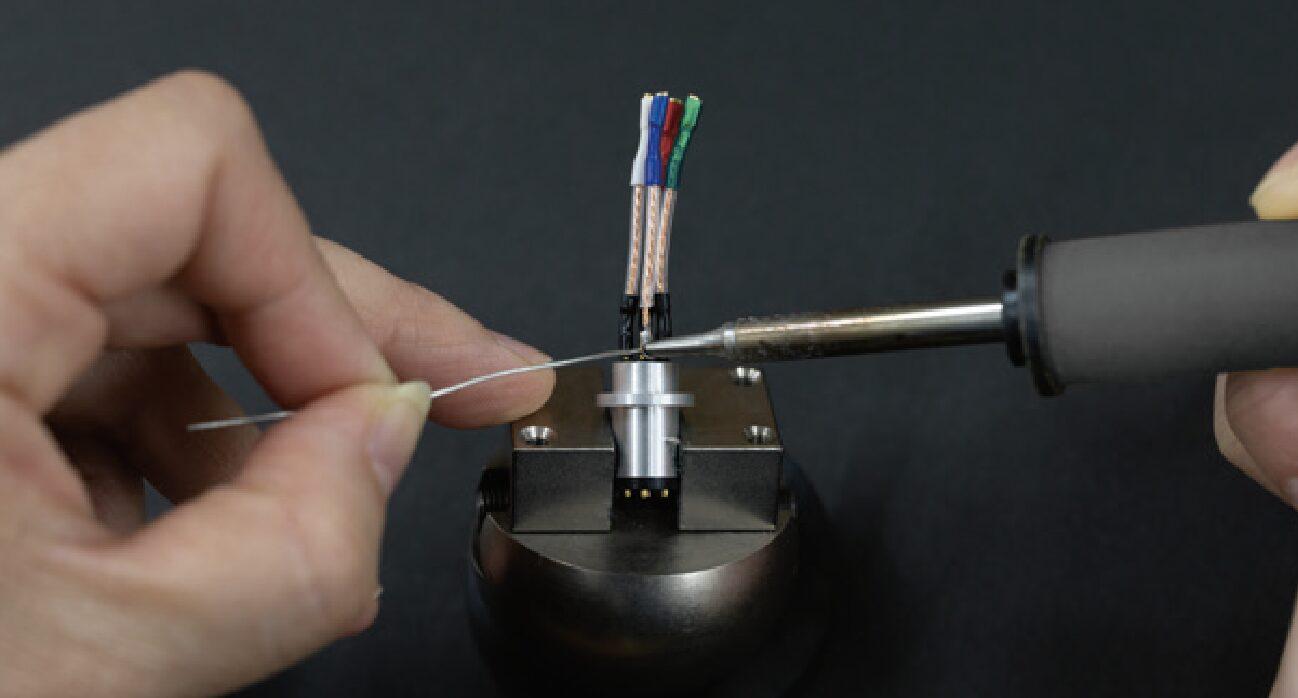

Hand-soldered Litz signal leads
After extensive listening tests within the company, DS Audio selected a Japanese-made Litz wire. Further advances were realized by hand soldering this delicate lead wire to preserve signal integrity for optimal sound performance. (Lead wires and connector parts are also available unsoldered by dealer request.)
