Specifications

• Mode: Moving Magnet (MM)
• Gain at 1 kHz: 40 dB
• Cartridge matching (input impedance): 47 kOhms + 220 pF fixed
• Frequency response: 10 Hz – 50 kHz (-3 dB)
• RIAA curve accuracy: 0.3 dB max.
• THD+N: <0.015%
• Signal-to-noise-ratio: >86 dB
• Crosstalk: ≧40 dB
• Input sensitivity: 3.14 mVrms for -10 dBV output (316 mVrms)
• Max. output voltage: 498 mVrms at 5 mVrms input (1 kHz)
• Output impedance: 47 Ohms

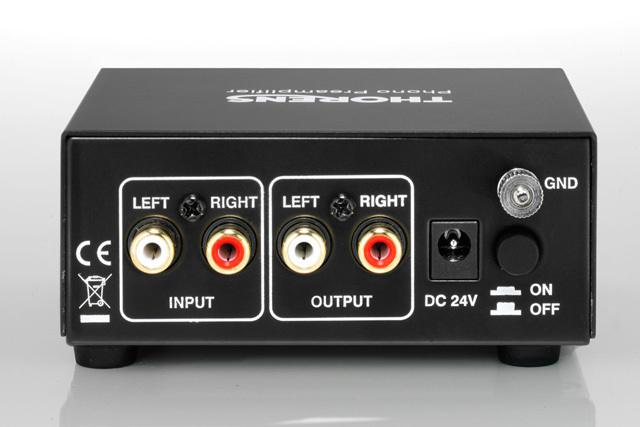

• Input connections: 1 pair of RCA sockets (left/right)
• Output connections: 1 pair of RCA sockets (left/right)
• Power supply: 24 V DC / 630 mA
• Power consumption: 3.3 W / 15 mA
• Weight: 292 g (not including power supply)
• Dimensions (W x H x D): 100 x 45 x 93 mm
