Specifications

• Type: Front-firing active driver, down-firing passive
• Active Driver Size & Material: 12″, 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis

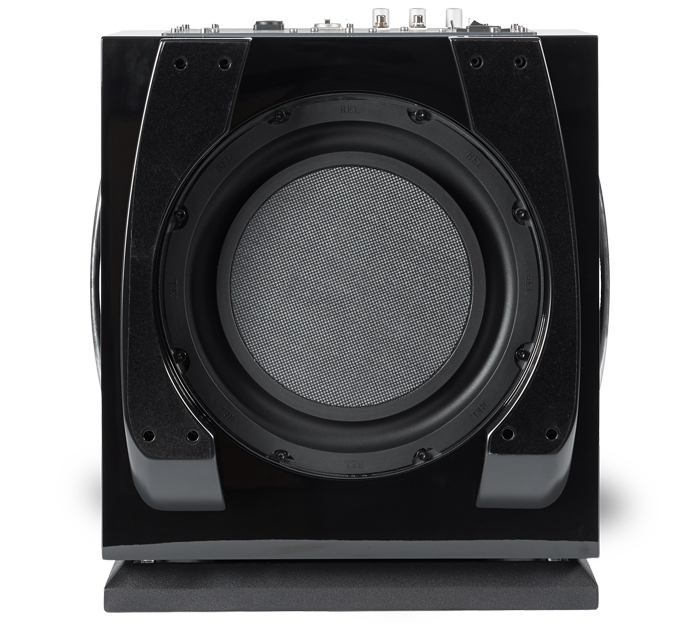

• Passive Radiator Size & Material: 12″, 300mm Carbon/Carbon flat cone structure, steel chassis
• Low Frequency Extention: -6dB at 19 Hz

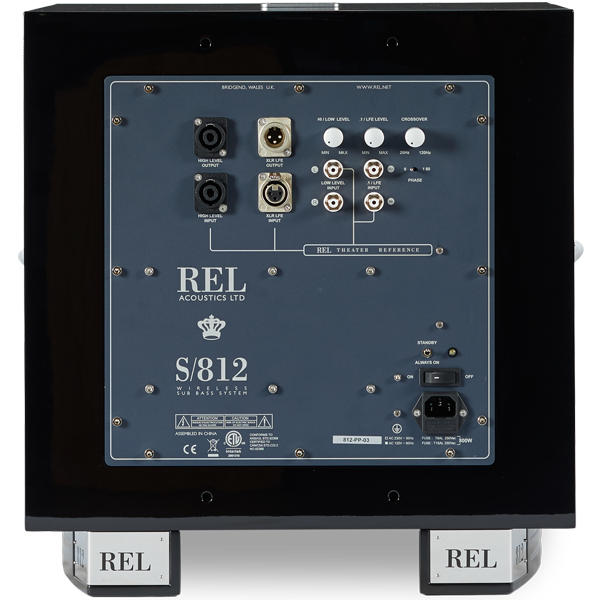

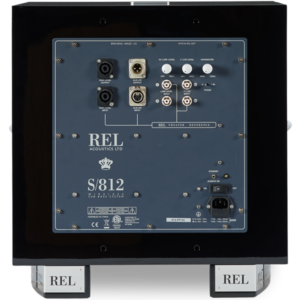

• Input Connectors: High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, SMA for wireless antenna
• Output Connectors: N/A
• Power Output: 800 watts (RMS)
• Amplifier Type: NextGen5 Class D
• Wireless Capability: Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders

Protection System

• Fully Electronic Set Safe: Yes
• D.C. Fault: Yes
• Output Short: Yes
• Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
• Fuses: 5 Amp 220 volts operation, 9 Amp 120 volts operation

Dimensions

• W x H x D: 444.5 x 455.5 x 507 mm
• Net Weight: 31.6 kg

Supplied Accessories

• Mains Lead: Yes
• Neutrik Speakon: Yes (10 Meters Nominal)
• Interconnect: –
• Users Manual: Yes
