Specifications:

• Frequency response:
  • USB DSD: 2Hz – 50kHz (-3dB)
  • USB PCM: 2Hz – 50kHz (-1.5dB)
  • CD: 2Hz – 20kHz
• Total Harmonic Distortion:
  • USB DSD: 0.0006%
  • USB PCM 24bit: 0.0005%
  • CD: 0.0015%
• Signal to Noise Ratio:
  • USB DSD: 110dB
  • USB PCM 24bit: 118dB
  • CD: 118dB
• Dynamic Range:
  • USB DSD: 110dB
  • USB PCM 24bit: 118dB
  • CD: 101dB
• Line Output Level: 2.2Vrms
• Headphone Output Level: 28mW / 32 ohms
• Power Consumption: 38W, at Standby 0.3W

Audio Feature

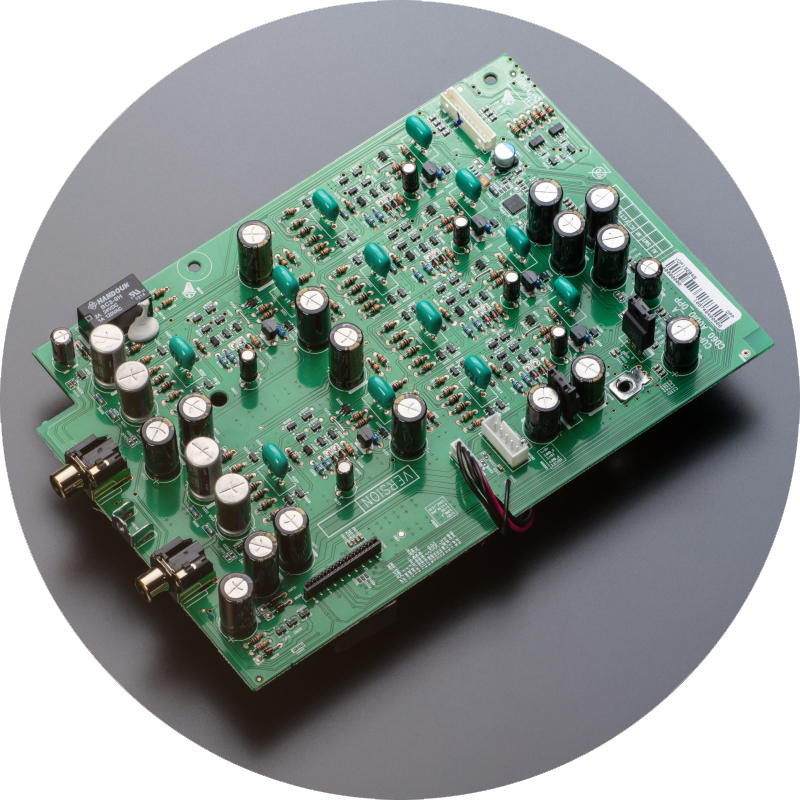

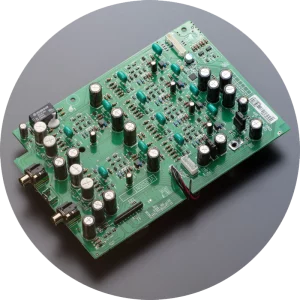

• HDAM: New HDAM + HDAM-SA2
• Power Transformer: EI
• Headphone Amp:
  • High slew rate op-amp
  • + HDAM-SA2
• H/P Amp Gain Setting: Yes (Low / Mid / High)
• Digital Filter: Filter 1, 2 Selectable

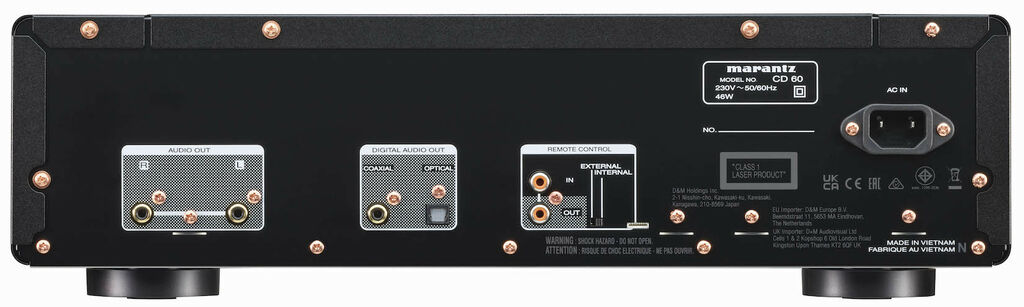

Connectivity

• CD Compatibility: CD / CD-R/RW / WMA / MP3 / AAC
• Data Disc Compatibility: DSD / WAV / ALAC
• Fixed Analog Output (RCA): 1 (Gold Plated)
• Optical input / output (Maximum Support): 0 / 1
• Coaxial input / output (Maximum Support): 0 / 1
• Headphone Output: 1
• Remote Control Bus Terminal:
  • Yes (RC-5 In / Out)
  • w/ External / Internal Select Switch
• Flasher Input: Yes (U ver)
• USB A
  • 1 (Front)
  • Mass Storage Class
  • 5V/1A
• Support format: FAT 16/32
• USB-A: FLAC / WAV / AIFF / ALAC / DSD: Yes / Yes / Yes / Yes
• DSD Native Playback: Yes
• USB Firmware Update: Yes

General

• Unit (W x H x D mm): 442 x 129 x 396
• Net weight: 7.5kg
• Packaging Dimensions (W x H x D mm): 525 × 249 × 511

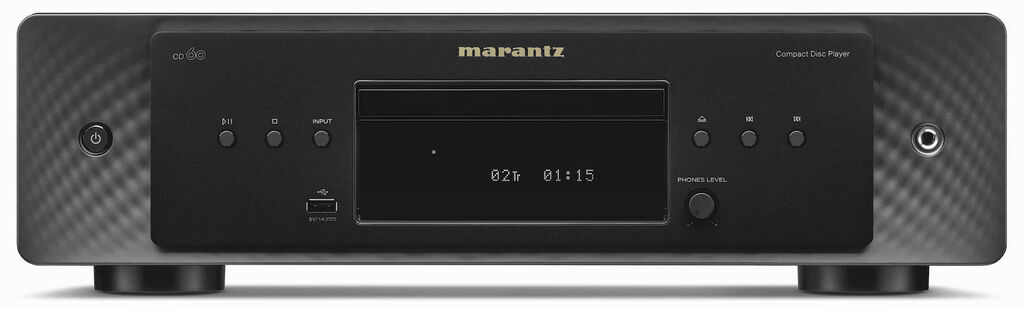

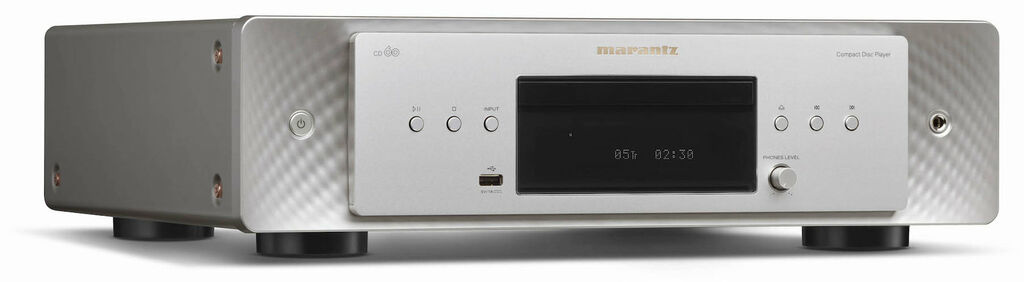

• Panel Color, available Colors: Silver/Gold and Marantz Black
• Front (Center) Panel: Aluminum

Easy to use

• Remote Controller: System Remote (Amp and CD Player Control)
• Unit control (Button): POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
• Unit control (Knob): 1, Phones Level
• Dimmer for Front Display: Bright / Dim / Dark / Off
• Control with App via Network Player (Use Remote Control Bus): Yes
• Last Function Memory: Yes
• Timer Play (Need external audio timer): Yes, On/Off selectable in Menu
• Auto Standby Mode: Yes
• Other
  • Stereo RCA Cable x1
  • Remote connector cable x1
• Accessory Box: Yes
• Battery: Yes (AAA x2)
• Power Cord: Yes
