Specifications

• Rated output: 120W + 120W (8Ω), 220W + 220W (4Ω)
• Input sensitivity/input impedance
  • PHONO (MM): 2.5mV/47kΩ
  • PHONO (MC-H): 0.3mV/100Ω
  • PHONO (MC-L): 0.1mV/40Ω
  • LINE: 180mV/47kΩ
  • BAL.LINE: 180mV/79kΩ
  • MAIN IN: 1.1V/47kΩ
• Output voltage
  • PRE OUT: 1V
• Frequency response
  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)
• Total harmonic distortion
  • 0.007% or less (8Ω, 1kHz)
  • 0.03% or less (8Ω, 20Hz to 20kHz)
• S/N ratio (IHF-A)
  • PHONO (MM): 87dB or more
  • PHONO (MC-H): 70dB or more
  • PHONO (MC-L): 62dB or more
  • LINE: 106dB or more
• Volume adjustment: LECUA-EX
• Amplification feedback circuit: LIFES 1.0
• Output configuration: Bipolar 4-parallel push-pull
• Damping factor: 330

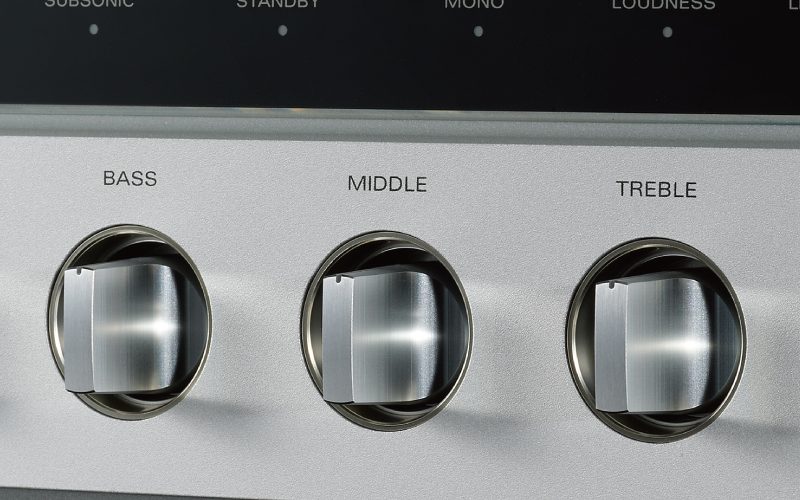

• Max. amount of tone control
  • BASS: ±8dB at 100Hz
  • MIDDLE: ±8dB at 760Hz
  • TREBLE: ±8dB at 10kHz
• Power supply: 230V~(50Hz) / 115V~(60Hz)
• Power consumption: 390W, 150W (under no signal), 0.5W (at standby)
• External dimensions: 440(W) x 193(H) x 463(D) mm
  • front side knob of 20mm and rear side terminal of 37mm included in depth
• Net weight: 29.4kg (main unit)

Accessories:

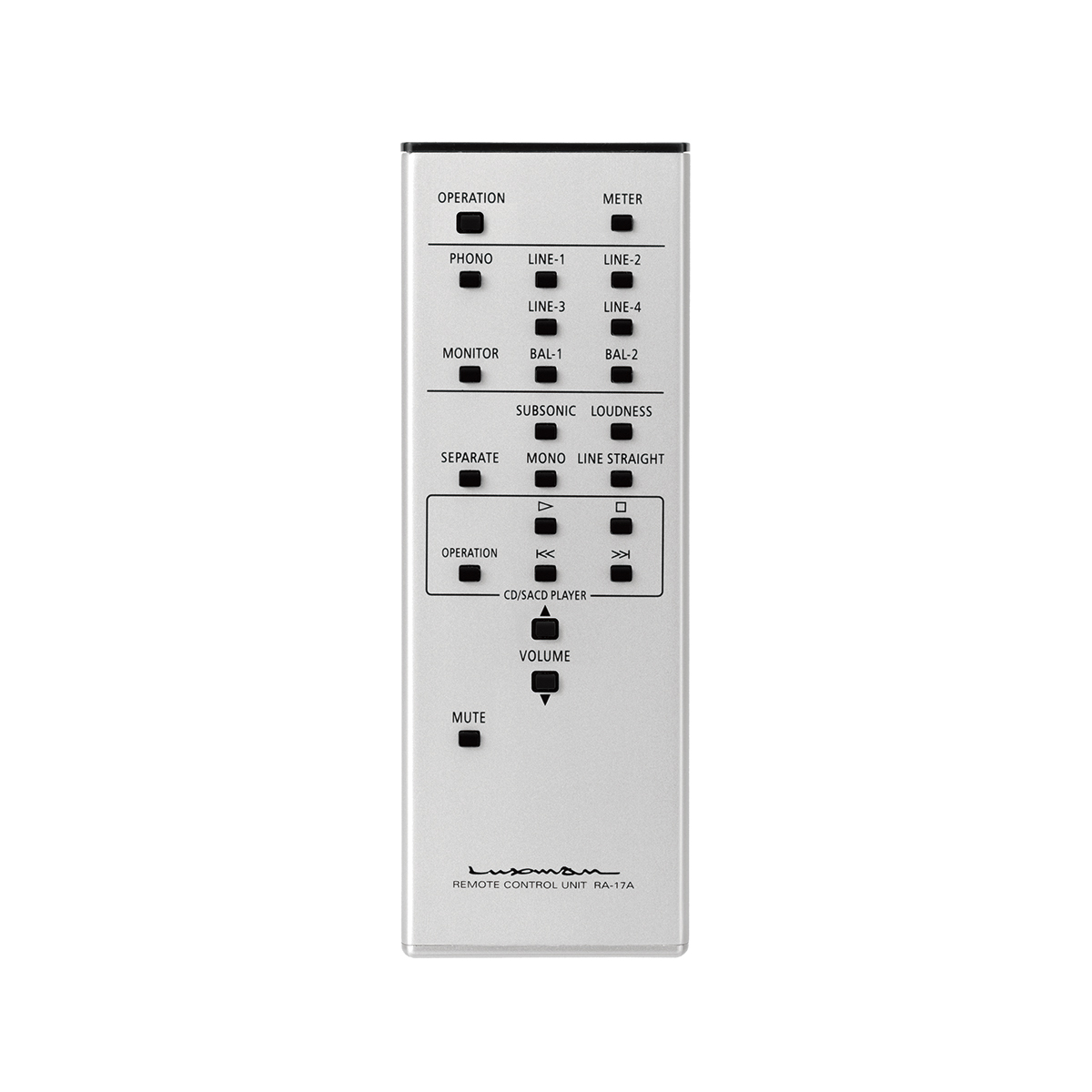

• Remote control (RA-17A)
• Power cable
