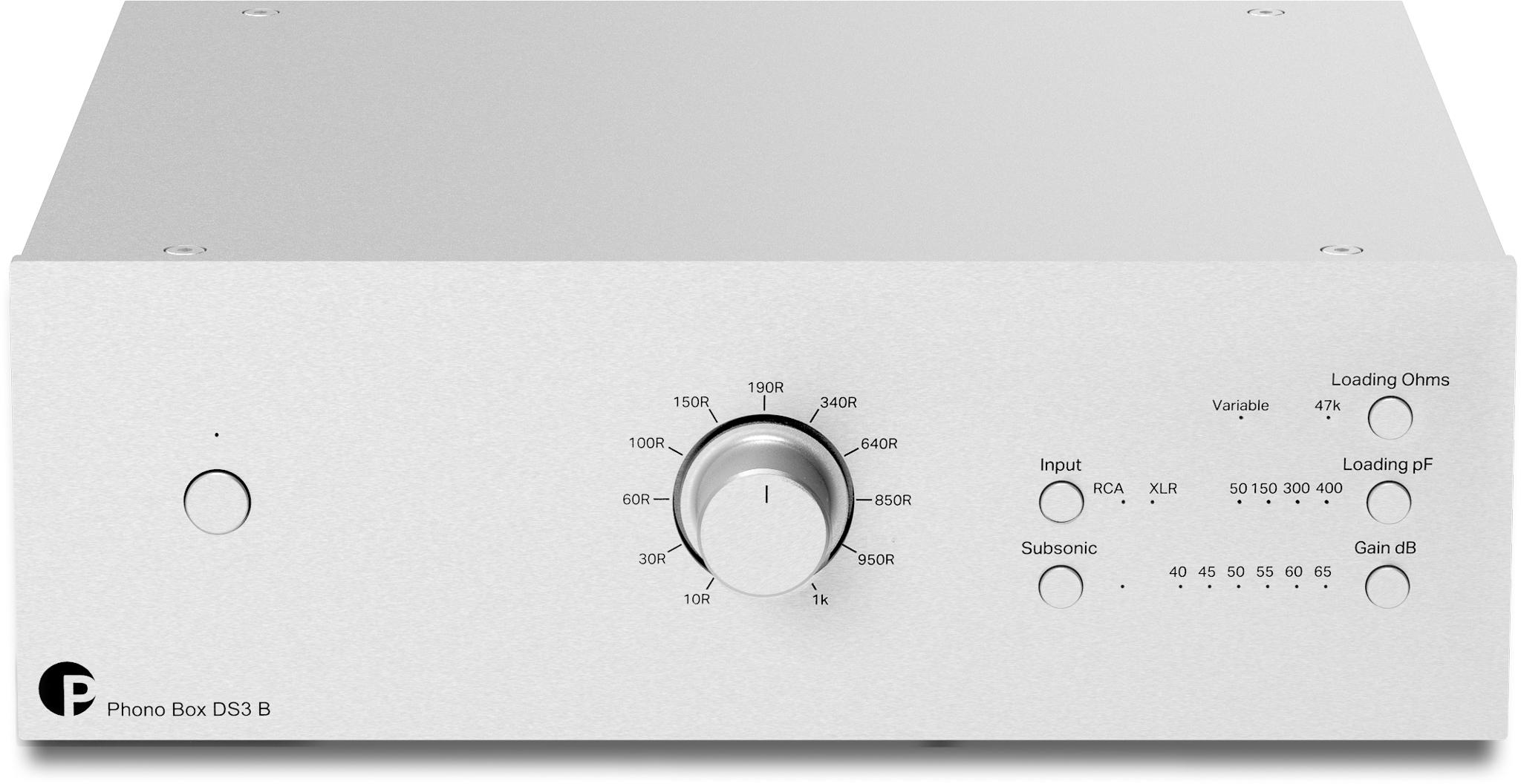

Pro-Ject Phono Box DS3 B

Hinta

639,00 (sis. alv)

Poista
Toimitusaika: 2-5 arkipäivää

Pro-Jectin True Balanced- ja Dual Mono-rakenteella toteutettu RIAA-esivahvistin MM- ja MC-äänirasioille.

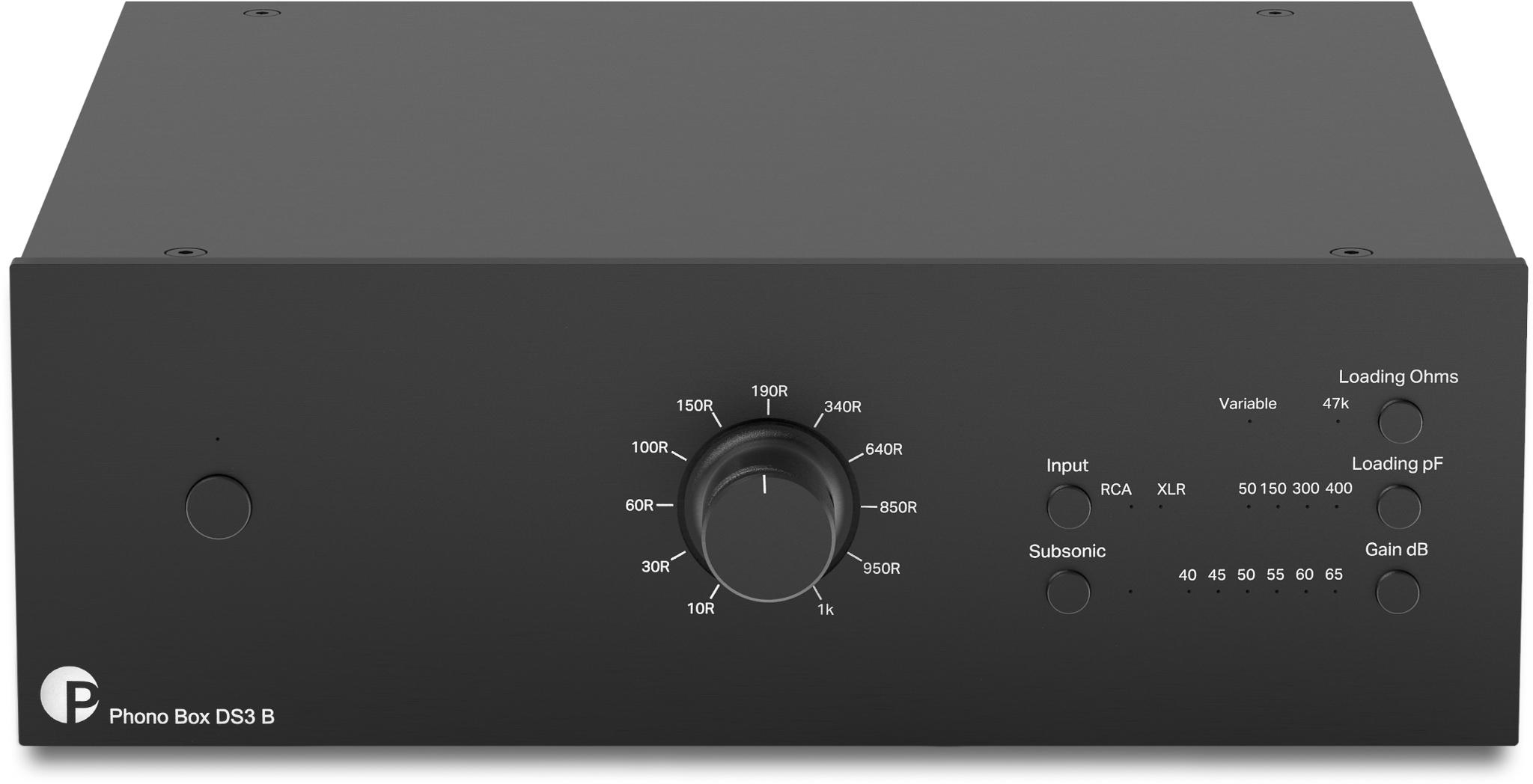

Portaaton säätö impedanssille MC-rasioiden sovittamiseksi. Kapasitanssin säätö MM-rasioille. Säädettävät gain-tasot sekä MM- että MC-puolella. Erilliskomponenttirakenne. RCA- ja True Balanced XLR-sissäntulot ja ulostulot.

Musta ja hopea.

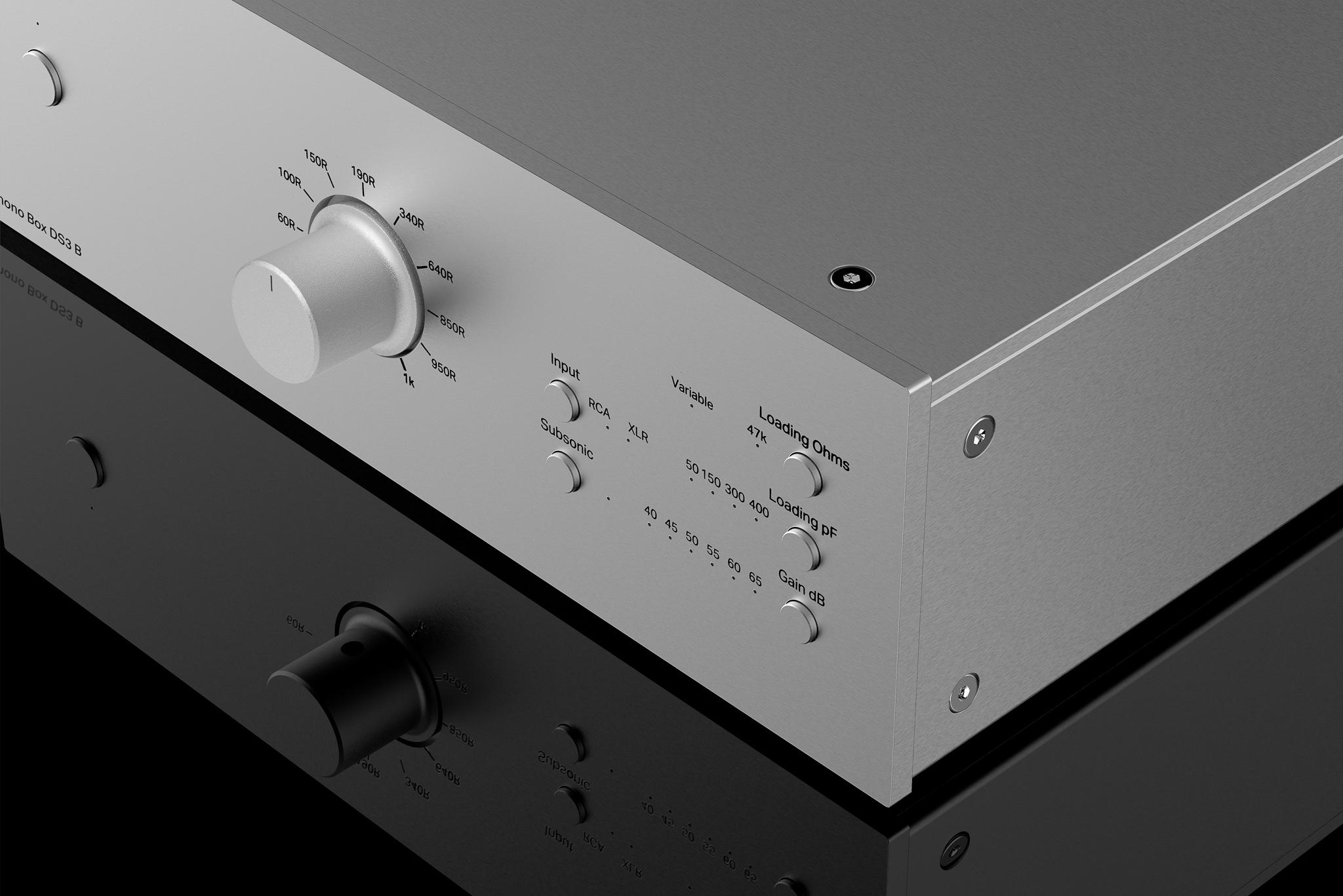

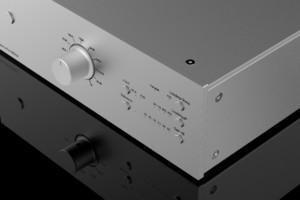

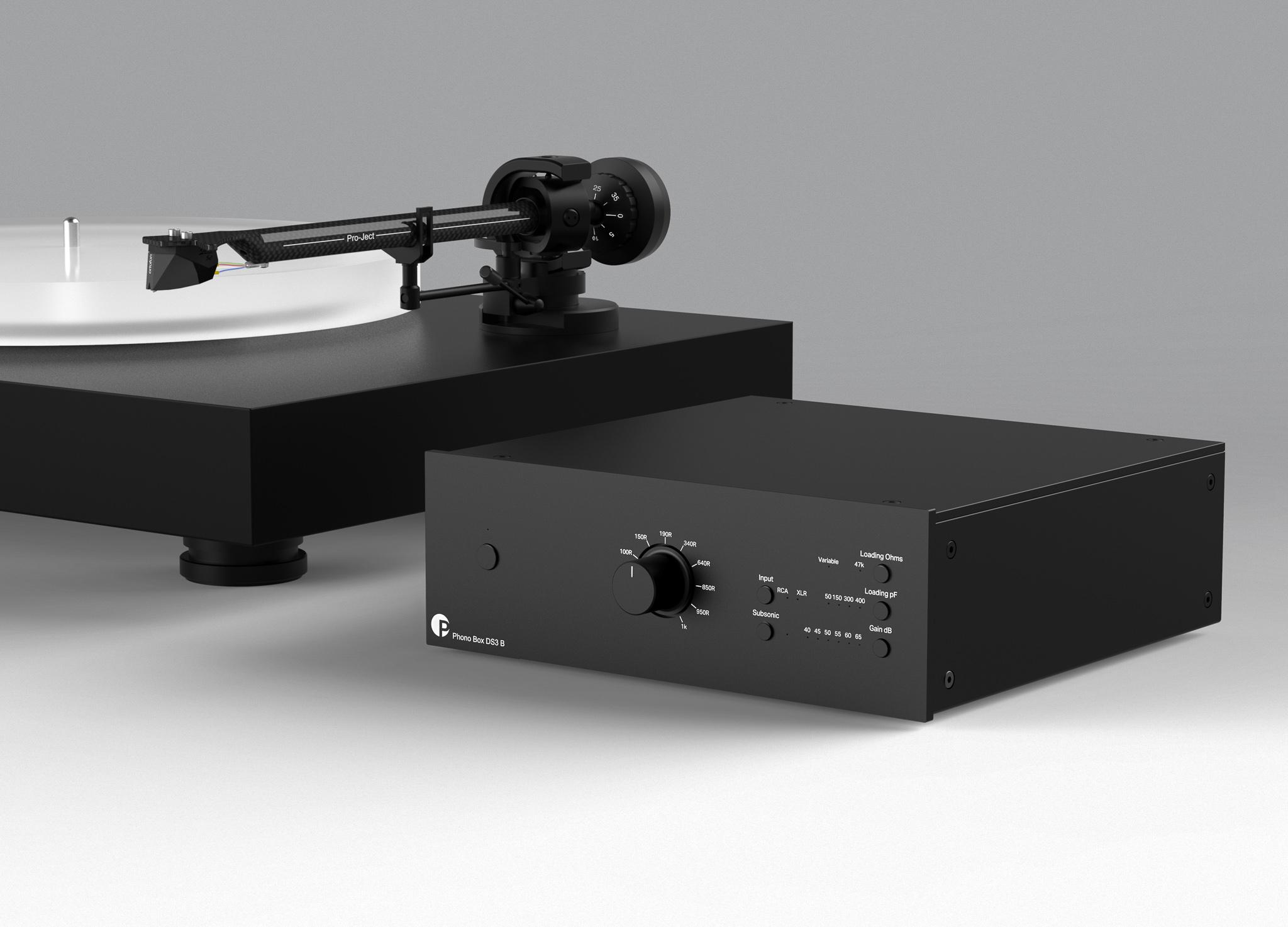

The Phono Box DS3 B employs a steel chassis enveloped by aluminium panels. This construction offers very high rigidity and isolation against interferences, which is essential for the new technology inside. Magnetic wooden side panels are available separately as add-ons. You can connect up to two turntables simultaneously – all parameters for each input get stored in the memory. Perfectly match the Phono Box DS3 B to a wide variety of cartridges. Load impedance can be set continuously via a potentiometer, a system invented by Pro-Ject Audio Systems, to adjust the impedance during playback and assess the impact of different loading options in real-time. No other manufacturer implements this feature as elegantly.

Cartridges are balanced signal transducers by nature! Due to the internal wiring of MM cartridges, you’ll need a MC cartridge to access the entirety of that balanced signal. Together with our new True Balanced Connection cables you’ll be able to access high-end features that were previously only available on the most expensive phono stages. And the best: any Pro-Ject turntable with RCA, miniXLR or 5P output can do it.

The symmetrical design is the fundamental standout feature. Connect your turntable via the 5-pin mini XLR cable or standard XLR cables and enjoy the benefits of our new True Balanced Connection. A truly balanced gain stage can extract the final musical information, effectively filtering out any noise from interferences stemming from our noisy, modern homes (household appliances, wifi & Bluetooth, power cables, audio amplifiers).

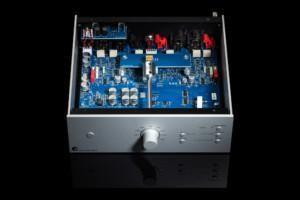

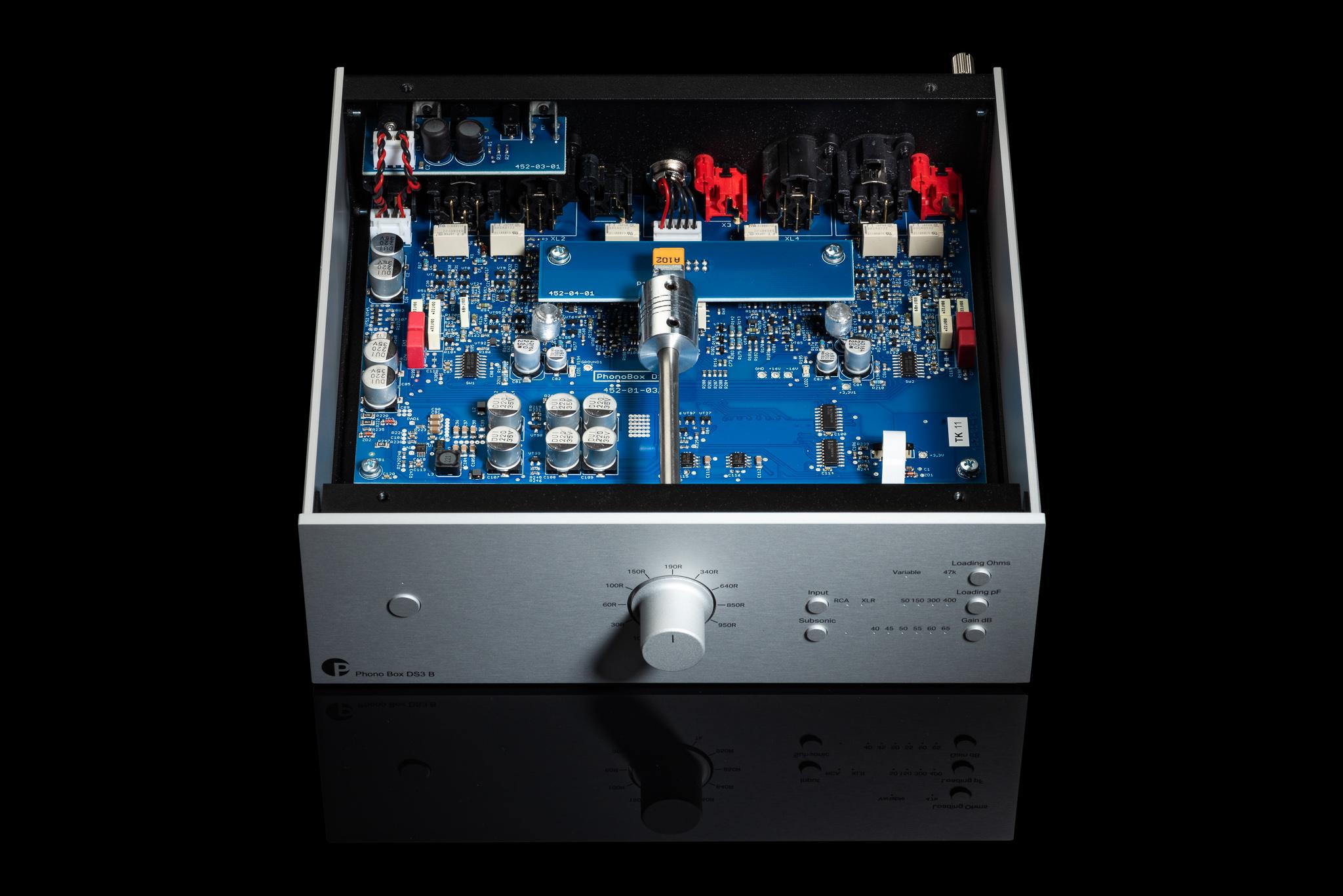

The Phono Box DS3 B incorporates a true, fully balanced gain stage design. Whether you’re using a single-ended RCA or balanced connection, both times the fully symmetrical gain stage can optimize the signal-to-noise ratios, feeding the fully passive and discrete RIAA equalization stage with the cleanest signal to work its magic on. Entirely split passive equalization allows for better impedance matching and lower deviation from the ideal RIAA curve. The Phono Box DS3 B uses fully discrete audio circuitry. A discrete circuit is composed of disparate, individual electronic components, also called discrete components. Years of experience have proven that even the best Op-Amps do not come close to the neutral, natural, dynamic, and vivid presentations of discrete circuit.

Lisätiedot

Väri

musta, hopea

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
Input impedance:Stepless 10 – 1000 ohms or fix 47kOhms
Input capacitance:50, 150, 300, 400 pF
Gain (+ 6dB using XLR Out sockets):40, 45, 50, 55, 60, 65 dB
Signal / Noise ratio MM (40dB):104dBV, 111dBV – ‚A‘ weighted
Signal / Noise ratio MC (60dB):85dBV, 91dBV – ‚A‘ weighted
THD at 1 kHz:<0,001% MM, < 0,004% MC
THD (20Hz-20kHz):<0,005% MM, < 0,01% MC
RIAA-equalization curve accuracy:< 0,25dB / 20Hz – 20kHz
Subsonic filter:at 20Hz with 18dB/octave

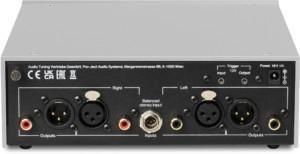

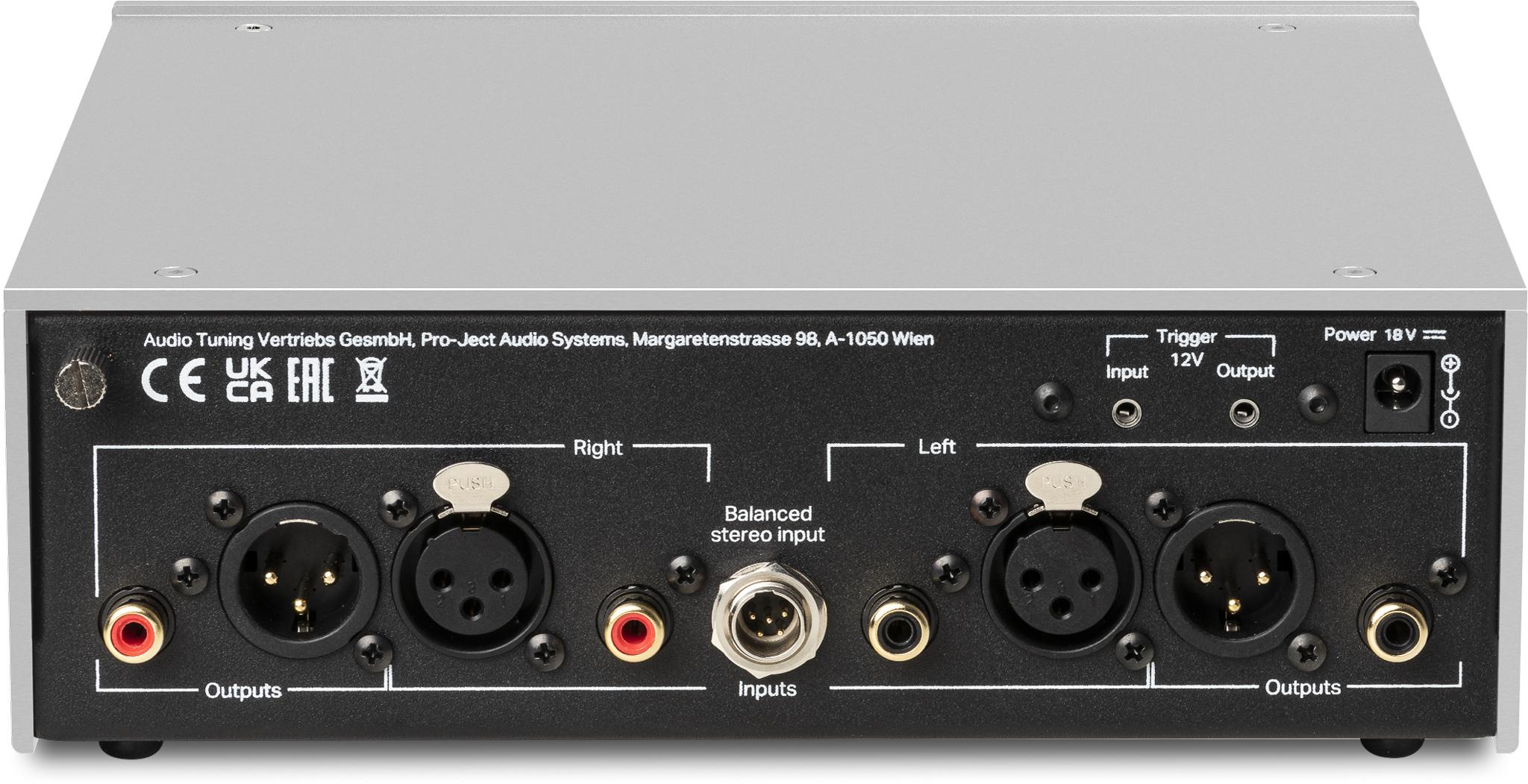

Input:1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
Line-level output:1x pair RCA, 1x pair XLR
Wiring XLR sockets:1 ground, 2 “hot” and 3 “cold”
Trigger In/Out:12V on/off detector
Power supply DC:18V/500mA
Power consumption:18V/max.290mA DC, <0.5 W standby
Dimensions:206 x 72 x 194 (205 with sockets) mm
Weight:206 x 72 x 194 (205 with sockets) mm
Värit:musta tai hopea
