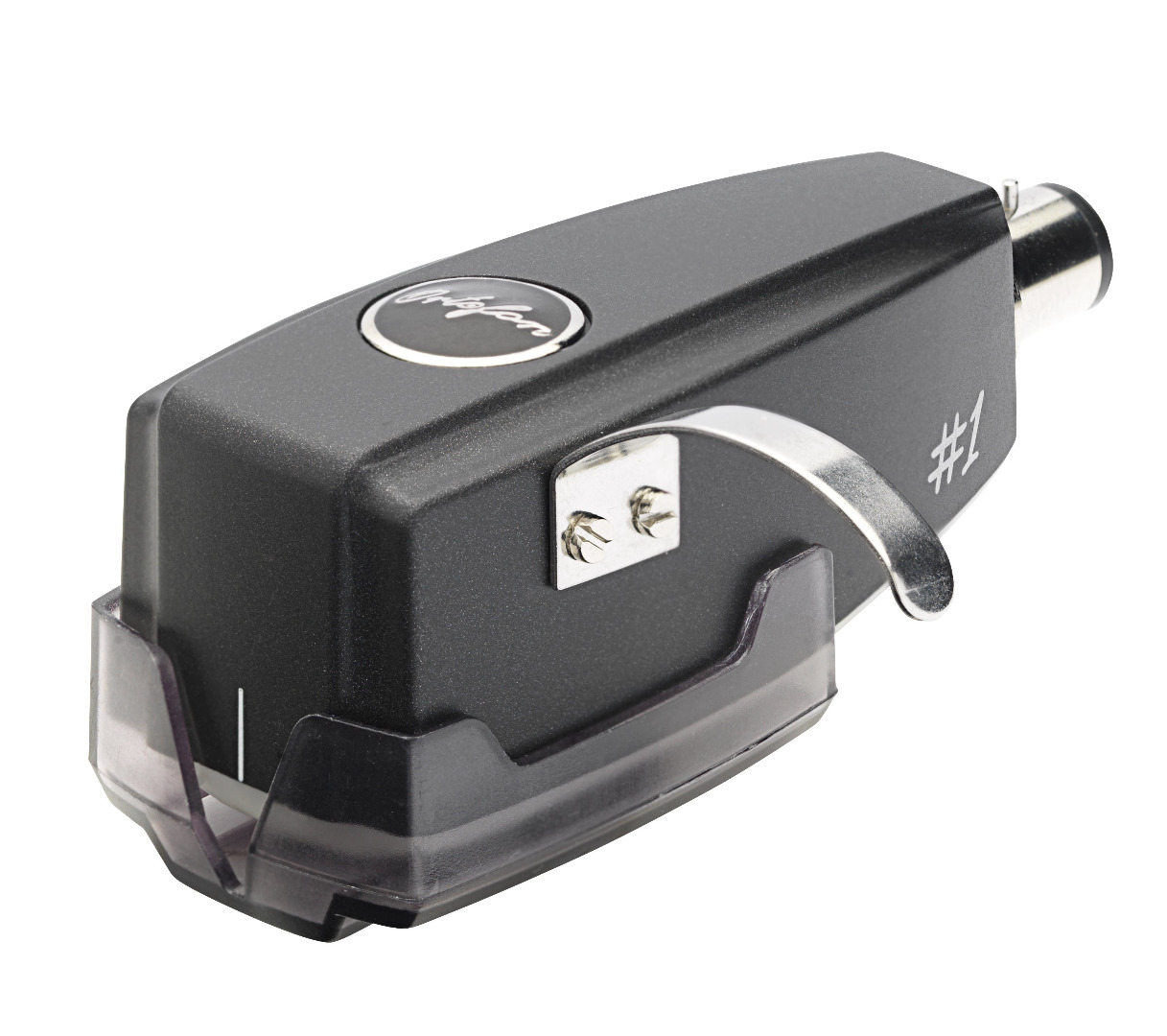

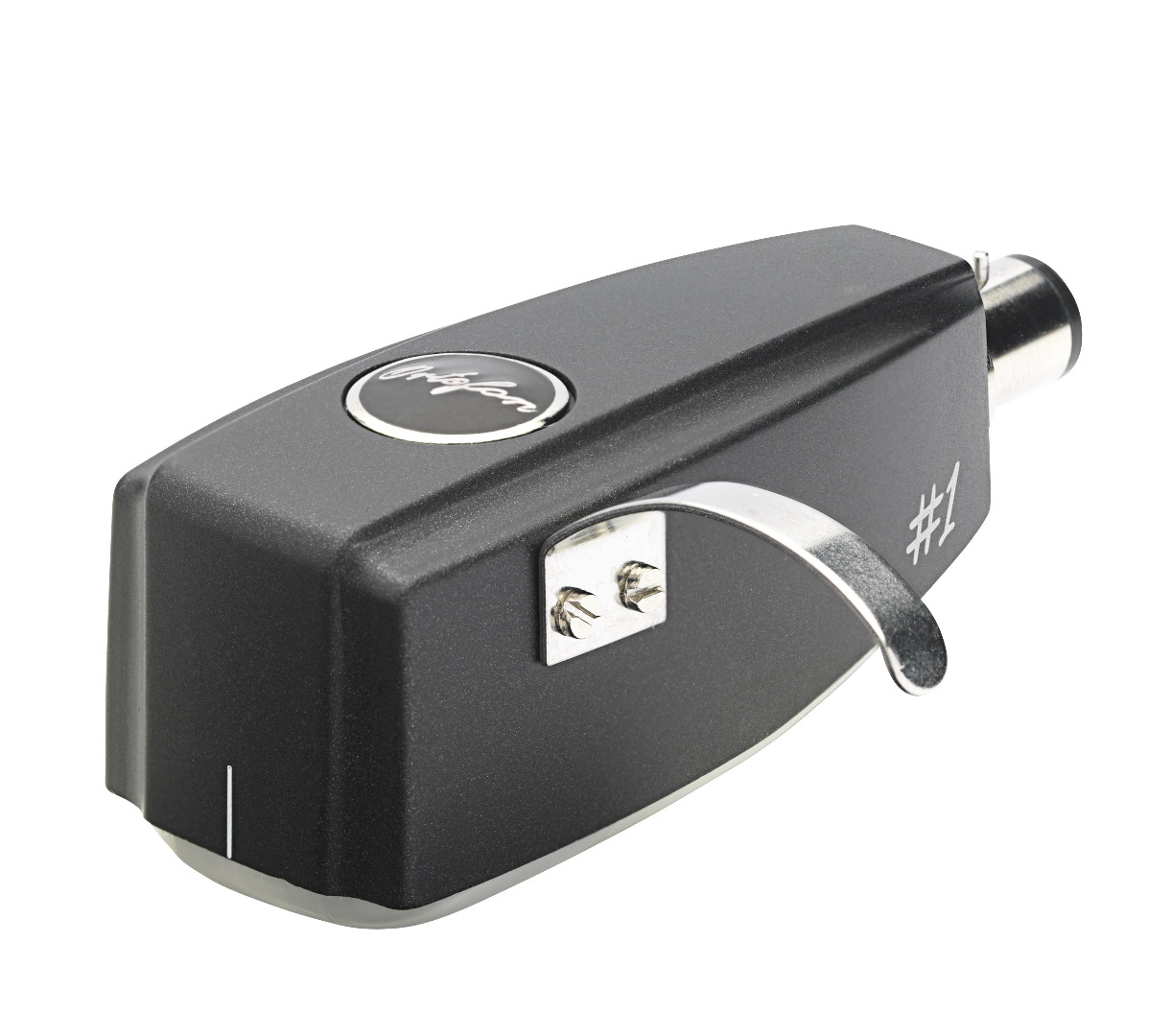

Ortofon SPU #1 S

Hinta

699,00 (sis. alv)

Toimitusaika: 2-5 arkipäivää

SPU-sarjan uudelleen suunniteltu klassikkorasia. Pyöreä neulahionta



The SPU #1 S is a remarkable embodiment of the classic Moving Coil technology, offering an ideal solution for playing back a wide range of stereo recordings, from the early classics to modern and contemporary pieces, with an outstanding price-to-performance ratio.

Crafted with precision, the housing of the SPU #1 cartridges is constructed from a combination of grinded wood and resin composite and features High Purity Copper armature windings and terminal leads, ensuring pristine signal transmission.

With their universal connector, the SPU #1 models ensure the ability to mount the units in a wider range of tonearms with universal (SME) mount, e.g., the Ortofon Reference tonearms. The combination of SPU #1, the ST-7 Moving Coil transformer and Ortofon Reference tonearms gives a supreme experience. Sonically, the SPU #1 models are genuine SPUs, known for their full-bodied and powerful music image, minimum of intermodulation distortion, and an impressive channel separation, a perfect solution for the playback of stereo recordings.

The SPU #1 S features a Spherical stylus.

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.

Output voltage at 1000 Hz, 5cm/sec. – 0.18 mV

Channel balance at 1 kHz  –  1.5 dB

Channel separation at 1 kHz  –  20 dB

Channel separation at 15 kHz  –  10 dB

Frequency response – 20-25.000 Hz –  ± 3 dB

Tracking ability at 315Hz at recommended tracking force *)  65 µm

Compliance, dynamic, lateral – 10 µm/mN

Stylus type – Spherical /

Stylus tip radius – R 18 µm

Tracking force range – 3.0-5.0 g (30-50 mN)

Tracking force, recommended – 4.0 g (40 mN)

Tracking angle – 20°

*) Typical value

Internal impedance, DC resistance – 2 ohm

Recommended load impedance  > 10 ohm

Cartridge body material – Grinded wood and resin composite

Coilwire material – High Purity Copper (OFC)

Cartridge colour – Shiny black

Cartridge weight – 30 g
