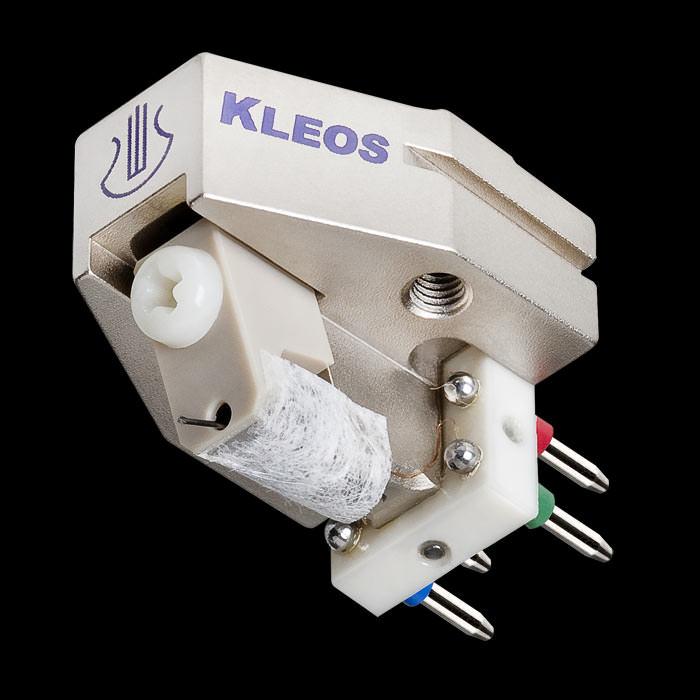

Lyra Kleos

Hinta

2 990,00 (sis. alv)

Toimitusaika: 6-12 arkipäivää

Kleos on Lyran 0,5mV-ulostulolla tehty line contact-hionnalla ja alumiinirungolla varustettu laatuaski. 35dB:n kanavaerotus ja 8,8 gramman paino.

Myös Kleos SL & Kleos Mono 3450€€



” RECOMMENDED COMPONENTS 2012 ” STEREOPHILE

”  Bäst i test ”  HIFI & MUSIK (4/2016)

” Highlight, Klang: Absolute Spitzenklasse, Preis/Leistung: Uberragend ”  STEREOPLAY (10/2015)

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.
    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Specifications for LYRA KLEOS

  • Designer: Jonathan Carr
  • Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)
  • Type: Medium weight, medium compliance, low-impedance moving coil cartridge
  • Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um), slot-mounted
  • Cantilever system: Solid boron rod with short one-point wire suspension, directly mounted into cartridge body
  • Coils: 2-layer deep, 6N high-purity copper, square-shaped chemically-purified high-purity iron former, 5.4ohm self-impedance, 9.0uH inductance
  • Output voltage: 0.5mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10Hz ~ 50kHz
  • Channel separation: 35dB or better at 1kHz
  • Compliance: Approx. 12×10-6cm/dyne at 100Hz
  • Vertical tracking angle: 20 degrees
  • Cartridge body: One-piece machining from solid 7075 alloy billet, with reduced-surface higher-pressure headshell contact area, partially non-parallel shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
  • Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
  • Distance from mounting holes to stylus tip: 9.5mm
  • Cartridge weight (without stylus cover): 8.8g
  • Recommended tracking force: 1.65 ~ 1.75g (1.72g recommended)
  • Recommended load directly into MC phono input: 95.3ohm ~ 816ohm (determine by listening, or follow detailed guidelines in user manual)
  • Recommended load via step-up transformer: 5 ~ 15ohm (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
  • Recommended tonearms: High-quality pivoted or linear tangential) tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA
