Lyra Atlas Lambda SL

Hinta

13 300,00 (sis. alv)

Tämän tuotteen voit ostaa tai tilata myymälästämme. Kysy lisää, pyydä tarjous, ota yhteyttä!

Atlas Lambda SL on single layered-versio Lyran uudesta Lambda-versiosta. Yksi parhaista, ellei paras äänirasia maailmassa. Titaanirunko, asymmetrinen rakenne. Ulostulojännite 0,56mV.

Saatavana myös Atlas Lambda 12100€ ja Atlas Lambda Mono 13300€.

Vaihtohinta uuteen 6700€ (Atlas Lambda 6100€ ja Atlas Lambda Mono 6700€)

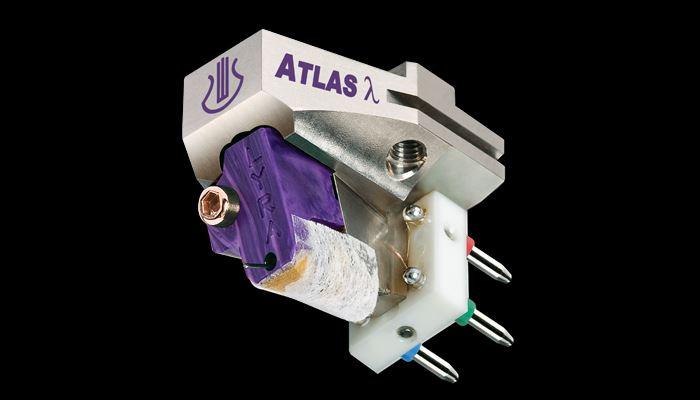

Lyra Atlas λ Lambda SL

The Atlas λ Lambda is Lyra’s new flagship phono cartridge. Why asymmetric? By literally misplacing the “barriers” to great sound that are present in every other cartridge today, a number of important performance benefits are realized.

First, different-shaped structures on the left and right sides of the cartridge body suppress the formation of standing waves within, resulting in a significant reduction of resonance-induced colorations. Second, the asymmetric construction offsets the front magnet carrier and its associated mounting system so that it is no longer in line with the cantilever assembly. This opens up a direct, solid path between the cantilever assembly and tonearm headshell so that vibrations from the cantilever can be quickly drained away once they have been converted into electrical signals, again suppressing induced resonances.

Lyra remains the only cartridge manufacturer to mount the cantilever assembly directly into the cartridge body thereby achieving a seamless, totally rigid connection between the cantilever assembly and headshell. The effectiveness of this system has been enhanced as a result of the asymmetrical structure of the Atlas λ Lambda. Control over spurious resonances is further assisted by the use of a narrowed mounting area, which couples the Atlas λ more tightly to the headshell and facilitates the transfer of vibrational energy into the tonearm.

The Atlas λ Lambda retains the yokeless dual magnet system, diamond-coated boron rod cantilever and variable-radius line-contact stylus of the prior Atlas.

The Atlas λ Lambda uses Lyra’s “New Angle” technology, which mechanically pre-biases the signal coils so that they are perfectly aligned to the front and rear magnets when LP playback takes place. This equalizes out discrepancies in vertical and horizontal compliances and enables the Atlas λ Lambda coils to move with equal ease in all directions for optimal performance.

A seldom-mentioned yet key factor in defining the performance and sound of a phono cartridge is the suspension and damper system. A cantilever’s materials, dimensions and constructions all affect the sound in unique ways, and unless the dampers and suspension are engineered to be a suitable match to the cantilever chosen, the sound and performance will not be optimal.

For Lyra’s post-2008 New Angle models (Delos, Kleos, Etna, Atlas) we developed tapered dampers to pre-load the cantilever downwards when it is in the rest position, so that the application of vertical tracking force (VTF) will bring the coil angle into alignment with the magnets when the cartridge is in the playing position. Our continued research into dampers and suspension systems has now led to the next level up – Lambda.

Lambda separates the tapered dampers of the New Angle cartridges into flat elastomer discs (for damping) and an additional support “pillow” to serve as the cantilever pre-loading element. This division allows the use of more specialized materials that are better suited to their individual tasks.

The Lambda Atlas and Etna thereby continue the New Angle benefits (coil and magnet angles become aligned when the cartridge is in the playing position), but stability and sonic performance are significantly improved.

The Lambda improvements apply to both the single coil layer models (Atlas SL, Etna SL) and the standard double coil layer models (Atlas, Etna). Likewise for the Atlas Mono and Etna Mono models.

The Atlas λ Lambda uses a body that is meticulously carved from a solid billet of titanium, through a process that involves both contact (for the exterior) and non-contact machining (for the interior body structures). By making most of the Atlas λ Lambda body surfaces non-parallel (avoiding dimensions that are multiples of other dimensions) and adding a pre-stressed phase-interference resonance-controlling system, resonances have been further inhibited.

We firmly believe that the Atlas λ Lambda represents an important step forward in LP playback.

” Recommended Components 2020 ”  STEREOPHILE

” Recommended Components 2022 Award ”  STEREOPHILE

Voit ottaa yhteyttä alla olevalla lomakkeella tai soittamalla numeroon 03 2130 750. Vastaamme puhelimeen myymälän aukioloaikoina. Tarkista aukioloajat täältä.

    Liittymällä postituslistallemme saat tuoreimmat kuulumisemme suoraan sähköpostiisi. Voit erota postituslistalta milloin haluat.
  • Kenttä on validointitarkoituksiin ja tulee jättää koskemattomaksi.

Specifications for Lyra Atlas λ Lambda SL

  • Designer: Jonathan Carr
  • Builder: Yoshinori Mishima
  • Type: Medium weight, medium compliance, low-impedance moving coil cartridge
  • Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3μm× 70μm), slot-mounted
  • Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high pressure knife-edge system
  • Body: Machined asymmetrical titanium with synthetic composite gemstone
  • Coils: Single layer, 6 N high-purity copper, chemically-purified high purity iron cross-shaped former, 1.52 ohm self impedance, 1.9μH inductance
  • Output voltage: 0.56mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10Hz ~ 50kHz
  • Channel separation: Greater than 30dB at 1kHz
  • Compliance: Approx. 12× 10 cm/dyne at 100 Hz
  • Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
  • Cartridge mounting screws: 2.6 mm 0.45 pitch JIS standard
  • Cartridge weight (without stylus cover): 11.6 g
  • Distance from mounting holes to stylus tip: 9.5 mm
  • Recommended tracking force: 1.62 – 1.72g
  • Recommended load directly into MC phono input: 104ohm ~ 887ohm (detailed guidelines in instruction manual, finalize by listening)
  • Recommended load via step-up transformer: Use a step-up transformer designed for 1 – 3 ohms cartridge impedance (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
  • Recommended tonearm: Medium to Medium-High mass arms recommended, which is bulk of tonearm market
