Bluesound HUB on langaton langaton äänilähdesovitin ja verkkoesivahvistin.
Täydennä Bluesound-äänijärjestelmäsi Bluesound HUB:lla, monipuolisella verkkolisälaitteella, johon voidaan liittää monenlaisia äänilähteitä mahdollistaen niiden toiston millä tahansa Bluesound-soittimella.
Musta
Streaming audio is more flexible than ever with the HUB. Turn any wired audio device into a multi-room player by adding a HUB to transmit music to one or many Bluesound players around the home, wirelessly. This means you can now stream virtually any audio source, anywhere.
• Connect any wired audio source to the HUB to bring it into your Bluesound ecosystem
• Stream your CD and vinyl collections anywhere in the house without being limited by wires or proximity
• Low noise, wide-band moving magnet phono stage acts as a network turntable preamp for hi-res playback of vinyl
• Use the HUB with a pair of Bluesound Pulse speakers to upgrade your TV sound
• Enjoy five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog and a moving magnet Phono stage to support your music devices
• Play one analog and one digital stream simultaneously to different Bluesound or BluOS players
• Easily choose any HUB input as the audio source for your Bluesound player with the BluOS app
• Connect to the network with dual-band Wi-Fi or Gigabit ethernet
• Universal USB-C plug and play power
AUDIO & OPERATING SYSTEM
Operating System
BluOS
BluOS Controller Operating System
iOS, Android, Windows, MacOS
Control System Integrations (via software update)
Control4, Crestron, URC, RTI, ELAN, Lutron
Simultaneous Audio Streams
2 per HUB
1 x analog audio input, 1 x digital audio input
Maximum Number Units
4x HUB on single network (8 simultaneous streams)
Native Sampling Rates
up to 192 kHz
Bit Depth
16-24
Signal-to-Noise Ratio
>100 dB (Line input)
>80 dB (Phono MM input)
Distortion
<0.03% 20-20 kHz -1dBFS output
Frequency Response
20-20 kHz +/-0.3dB; 50 kHz -3dB

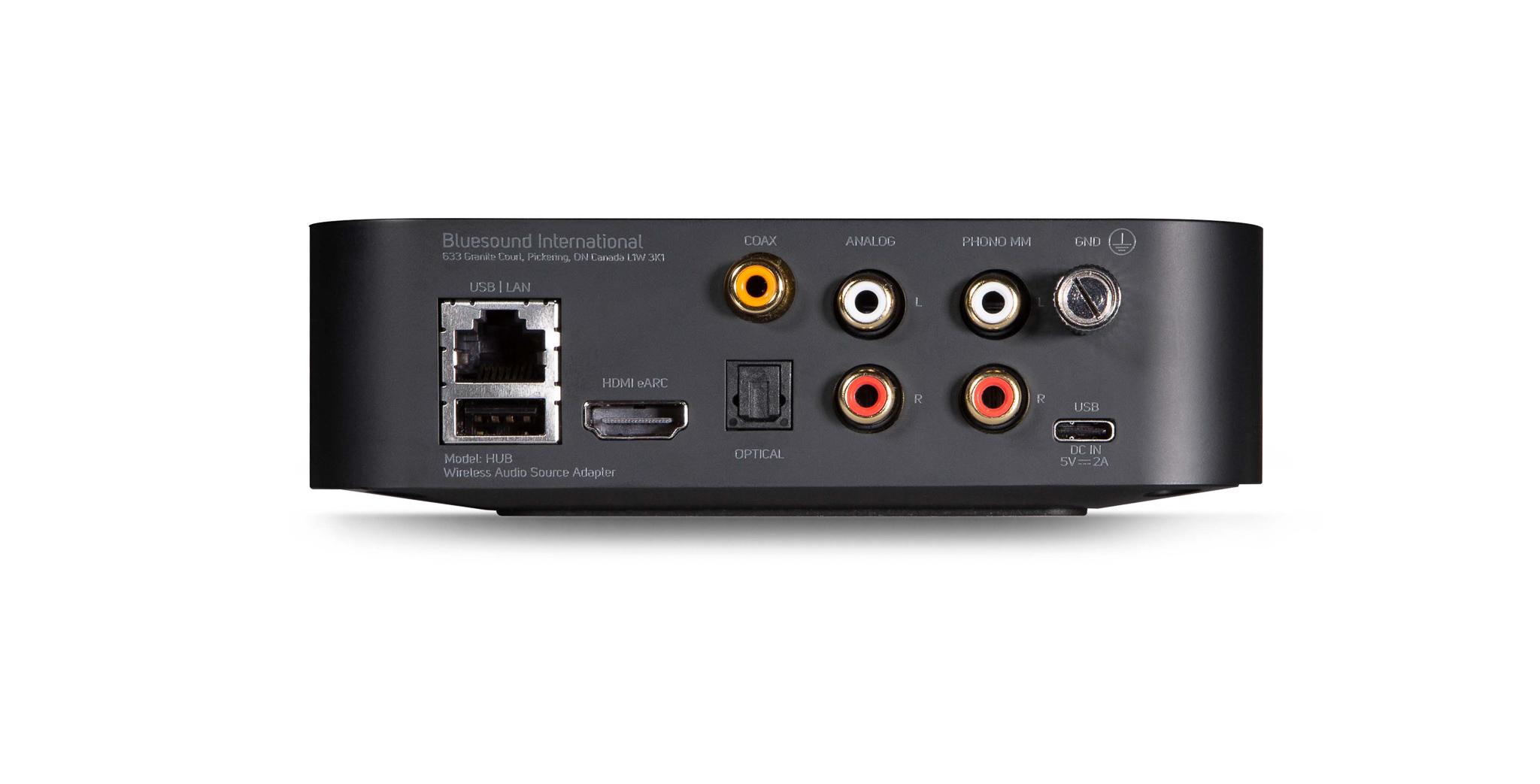

CONNECTIONS
Power Supply
Universal USB-C Power adapter
(Input:100-240V AC/0.3A Output:5V/2A)
Ethernet/LAN
Ethernet RJ45, GigE 1000 Mbps
Wi-Fi Built In
Wi-Fi 5 (802.11ac), 2.4/5GHz
Analog Line Input
1 x Stereo RCA
Phono Input
1 x Stereo RCA (Moving Magnet)
Optical Input
1 x TOSLINK digital optical
Coaxial Input
1 x RCA (75 ohms)
HDMI Input
HDMI eARC with CEC
USB Input
Type A (for BluOS firmware upgrade only)
Audio Output
Network
FEATURES
Processor
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Status Indicator
Front Panel LED
Function Button
Front Panel Function Button
Power Consumption
0.5W Network Standby
GENERAL
Finish
Black; Matte Satin Paint
Version
CB130
Product Dimensions
143 x 153 x 45mm (W x D x H)
Weight
0.63kg
Included Accessories
5V Power Adapter
3 x International Plug Adapters
USB-C Power Cable
Ethernet Cable
Mounting Template
Safety/Warranty Guide
Quick Setup Guide
