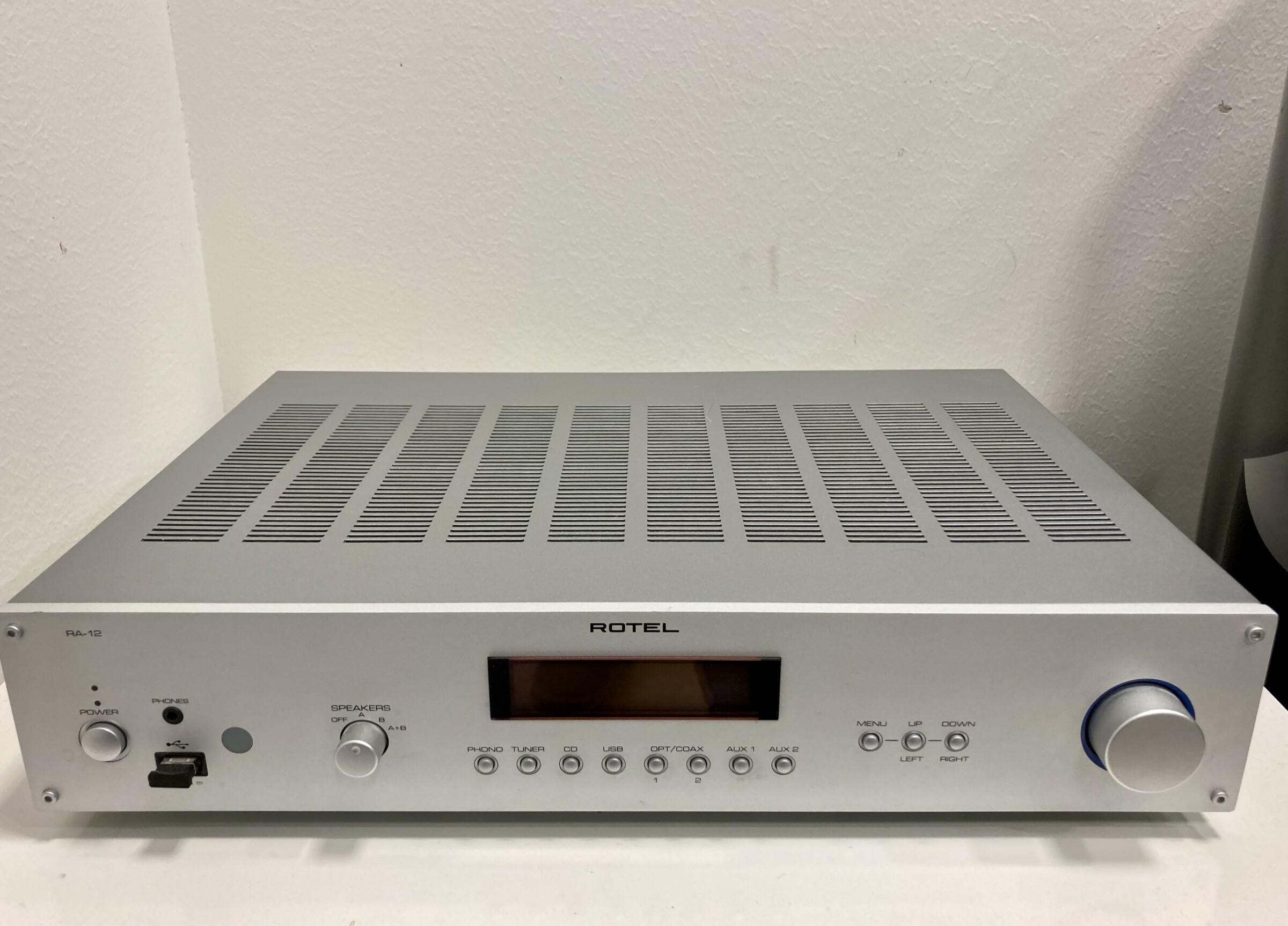

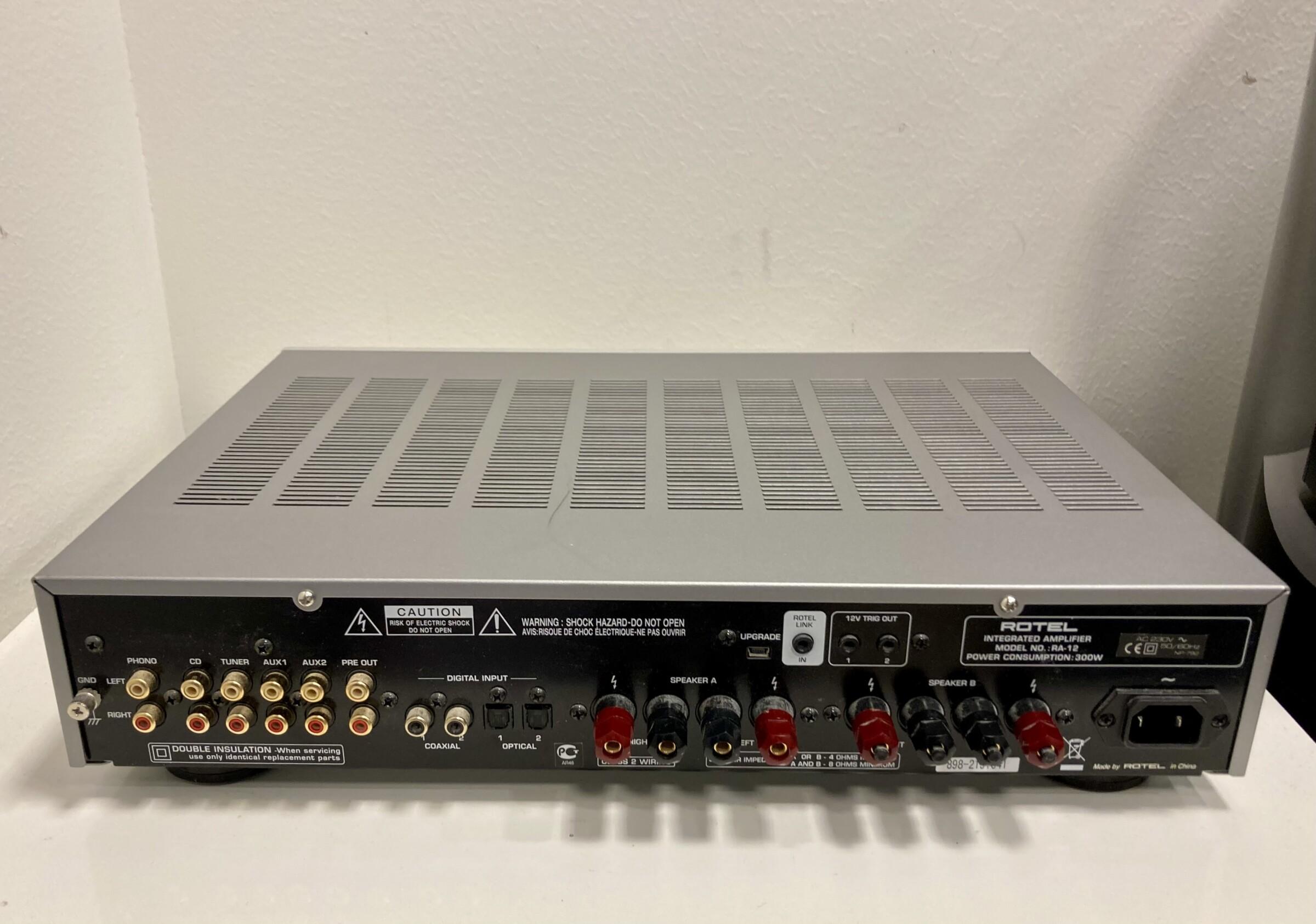

Rotelin käytetty integroitu vahvistin, kaukosäädin.
- Model RA-12 Continuous Power Output 60Watts/ch (20-20kHz, < 0.03%, 8Ω)
- Total Harmonic Distortion (20Hz-20kHz) < 0.03% at rated power Intermodulation Distortion (60 Hz:7 kHz, 4:1) < 0.03% at rated power Frequency Response
- Phono input 20Hz-15kHz, ±0.3dB
- Line Level Inputs 10Hz-100kHz, ±1dB Input Sensitivity / Impedance
- Phono input 2.5mV / 47 k Ω
- Line Level Inputs 150mV / 24 k Ω
- Input Overload Phono input 180mV
- Line Level Inputs 5V Preamp Output / Impedance 1V / 470Ω
- Tone Controls – Bass / Treble ±4 dB at 100Hz / 10kHz Signal to Noise Ratio (IHF “A” weighted)
- Phono input 80dB Line Level Inputs 100dB Digital Section –
- Frequency Response 10Hz-95kHz ±3.0dB (MAX) Signal to Noise Ratio (IHF “A” weighted) 100dB
- Input Sensitivity/Impedance 0 dBfs/75V Pre-out/Impedance 1.2V/470V (at -20dB)
- Decodable Front USB/iPod Digital Signals AAC (m4a), WAV, MP3, WMA (up to 48K 16bit) Coaxial/Optical PCM LPCM File Formats Real Audio, MP3, OGG Vorbis, WAV, AIFF and AU General –
- Power Requirements (AC) 120V, 60Hz (USA) 230V, 50Hz (Europe)
- Power Consumption 300Watts Standby Power Consumption 0.5W 0.5Watts Dimensions (W x H x D) 430 x 92 x 342mm (17 x 3 5/8 x 13 1/2 ins)
- Panel Height 80mm
- Weight (Net) 8.02kg
