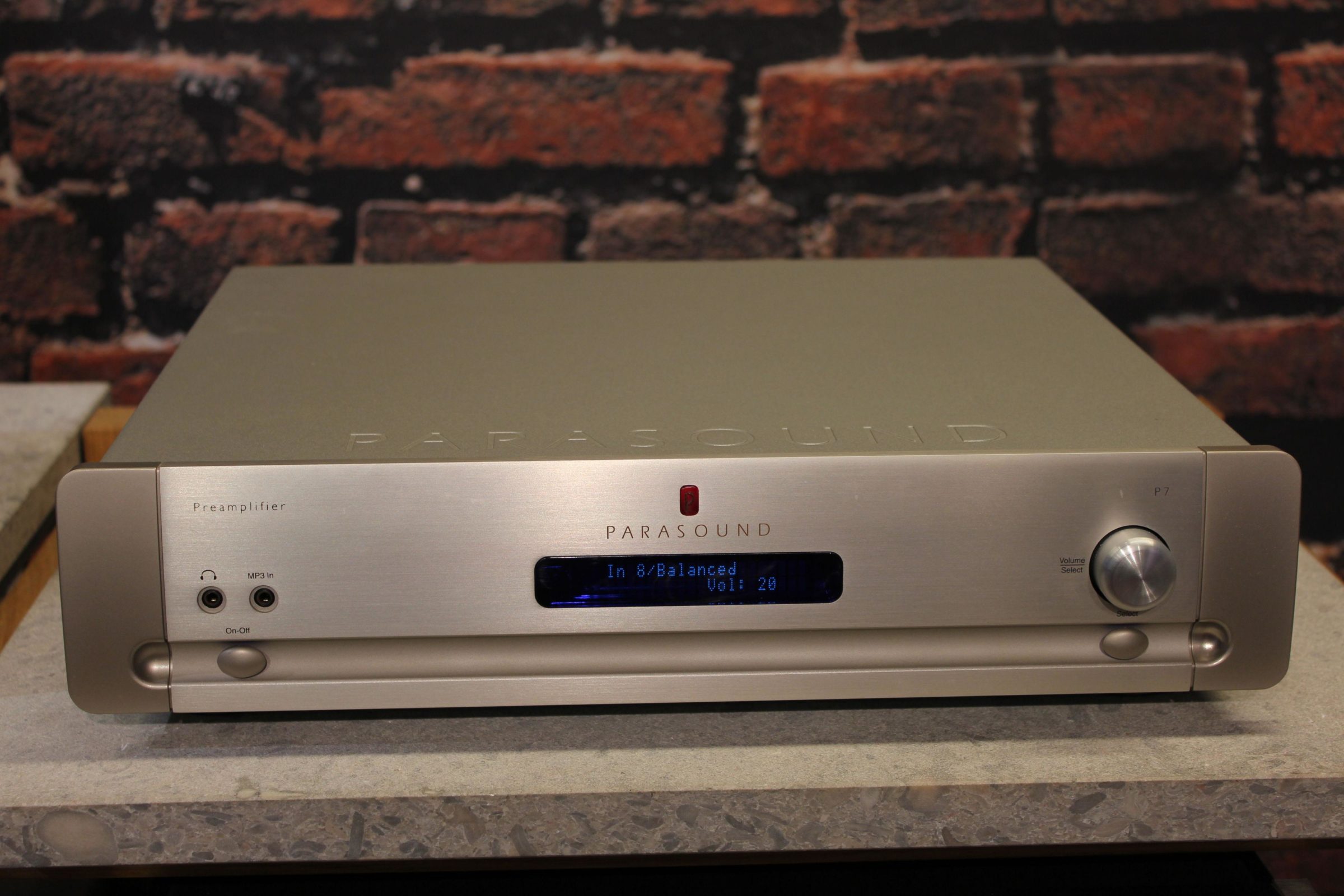

Parasoundin laadukasääninen etuvahvistin. Mm.kahdet 7.1-sisäänmenot ja 7 x linjatasoinen & 1 x MM/MC-levysoitinotto. Shampanjahopea. Kauko-ohjain. Sh.2695€
Input/Outputs:
– 2 Multi channel (7.1) inputs for surround sound movies and music
– 7 Stereo inputs (one balanced XLR input)
– 1 MM or MC phono input
– Front panel input jack for portable MP3 player
– Unbalanced RCA and balanced XLR 7.1 outputs
– Subwoofer output with analog bass management
– Serial port for RS-232 control
– Rear panel IR input jack
– 3 different 12v trigger outputs
– High quality headphone output
Software Features:
– Custom input naming for all inputs
– Theater bypass mode for connecting a digital surround receiver
– Source input level matching
– Headphone level offset
– Analog bass management for stereo inputs
– Links to Parasound Zhd HDMI selector (does not decode audio)
Other Features:
– Relay-switched input select, mute & tone control engage/bypass
– Full-featured remote control
– Bass and Treble adjustable by remote
– Tone controls engage/bypass by remote
– Left/Right balance adjust by remote
– Front/Rear balance adjust by remote
– Subwoofer output level trim by remote
– 20 dB partial mute and full mute by remote
– 5 brightness settings for front panel display
– Three 12V trigger outputs for 3 different functions
– 12V trigger can be activated by remote control
Specifications
Frequency Response:
5 Hz – 100 kHz, +0/-3 dB
Total harmonic distortion:
< 0.006% at 20 kHz
S/N ratio:
> 110 dB, input shorted, IHF A-weighted
> 95 dB, input shorted, unweighted
Cross-talk:
85 dB at 20 kHz
Line Input Impedance :
Unbalanced: 14.2k Ω
Balanced: 4.7k Ω per leg
Phono Input Impedance :
MM setting: 47k Ω
MC setting: 100 Ω
Output Impedance :
Unbalanced: < 60 Ω
Unbalanced: < 60 Ω per leg
Input Sensitivity:
200 mV for 1 V output
Total Gain: 14 dB (Volume limiter set to 110)
Maximum Output: 8 V (Vol. Limiter set to 110)
XLR Pin Identification:
1 = Ground (Shield)
2 = Positive
3 = Negative
AC Power Requirement:
100 – 250 V / 50 – 60 Hz (voltage is automatically selected)
10 watts standby
65 watts when turned on
Dimensions:
Width: 17-1/4″ (437 mm)
Depth: 13-3/4″ (350 mm)
Height, with feet: 4-1/8″ (105 mm)
Height, without feet: 3-1/2″ (89 mm)
Weight:
Net: 13.5 lbs. (6.1 Kg)
Shipping: 20.5 lbs. (9.3 Kg)
Rack Mount Accessory:
HRA 2 (May be purchased separately)
