Specifications

Performance

• Jitter: <15 picoseconds peak to peak
• Frequency Response: 10Hz to 20 kHz -0.2dB max.
• Signal to Noise Ratio: >117dB
• THD(+ noise): <0.003% 10Hz to 20 kHz
• Linearity: <0.1dB down to -96dB
• Channel Separation: 105dB 20 Hz to 20 kHz

Hardware

• DAC: Quad DAC 192 kHz fully balanced over-sampling

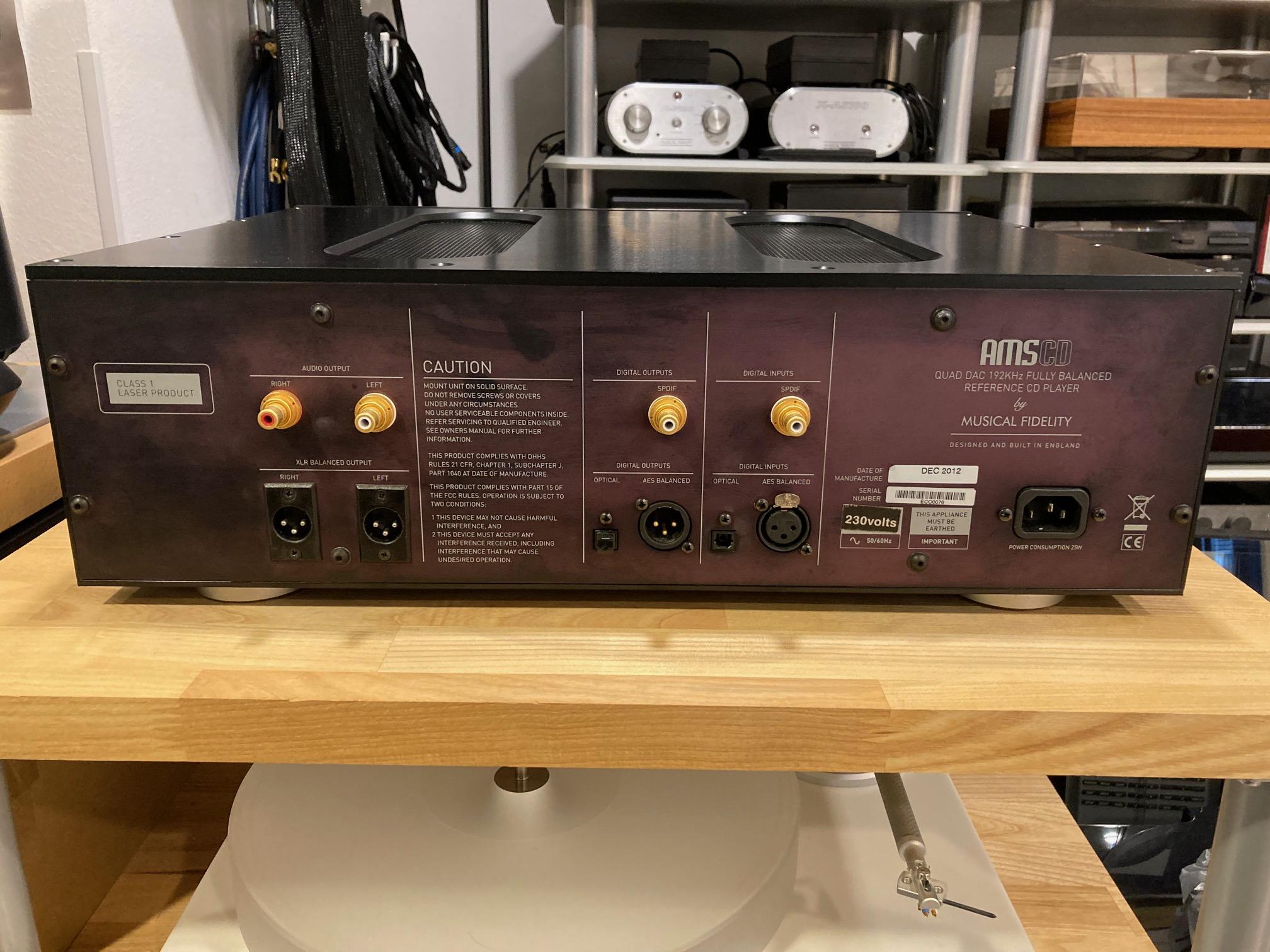

Inputs

• 1x RCA coaxial connector (SPDIF)
• 1x TOSLINK optical connector(SPDIF)
• 1x XLR AES input connector

Outputs

• 1x line level RCA
• 1x line level Balanced XLR
• 1x RCA coaxial connector (Digital SPDIF)

General

• Dimensions – WxHxD (mm): 483 x 150 x 385
• Weight (unpacked / packed): 11.2 kg / 23 kg
