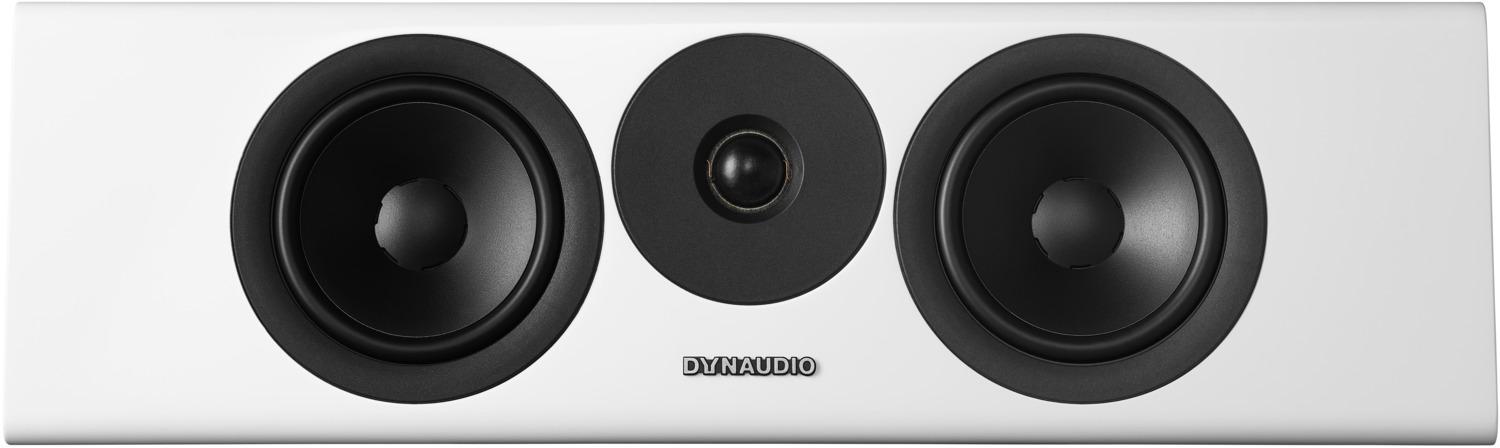

Uusi Evoke-sarjaan kuuluva keskikaiutin. Optimoitu Evoke-sarjan muiden kaiuttimien kanssa ja tuottamaan maksimaalisen elokuvaelämyksen. Äänen muodostaa kaksi 14 cm pitkäiskuista bassoelementtiä ja yksi pehmeä-kupolinen 28 mm diskantti. Diskanttielementti on täysin uudenlainen Cerotar, jonka teknologiaa on käytetty myös palkituissa Confidence-sarjassa.
Kuvittele elokuvaelämys omassa kodissasi, jossa äänimaailma on kuin elokuvateatterissa. Monien mielestä elokuvaelämyksestä 70-80% koostuu äänimaailmasta ja katsoessasi elokuvaa tuon elämyksen 70-80%:sti muodostaa keskikaiutin. Optimoitu Evoke-sarjan muiden kaiuttimien kanssa ja tuottamaan maksimaalisen elokuvaelämyksen. Äänen muodostaa kaksi 14 cm pitkäiskuista bassoelementtiä ja yksi pehmeä-kupolinen 28 mm diskantti. Diskanttielementti on täysin uudenlainen Cerotar, jonka teknologiaa on käytetty myös palkituissa Confidence-sarjassa.

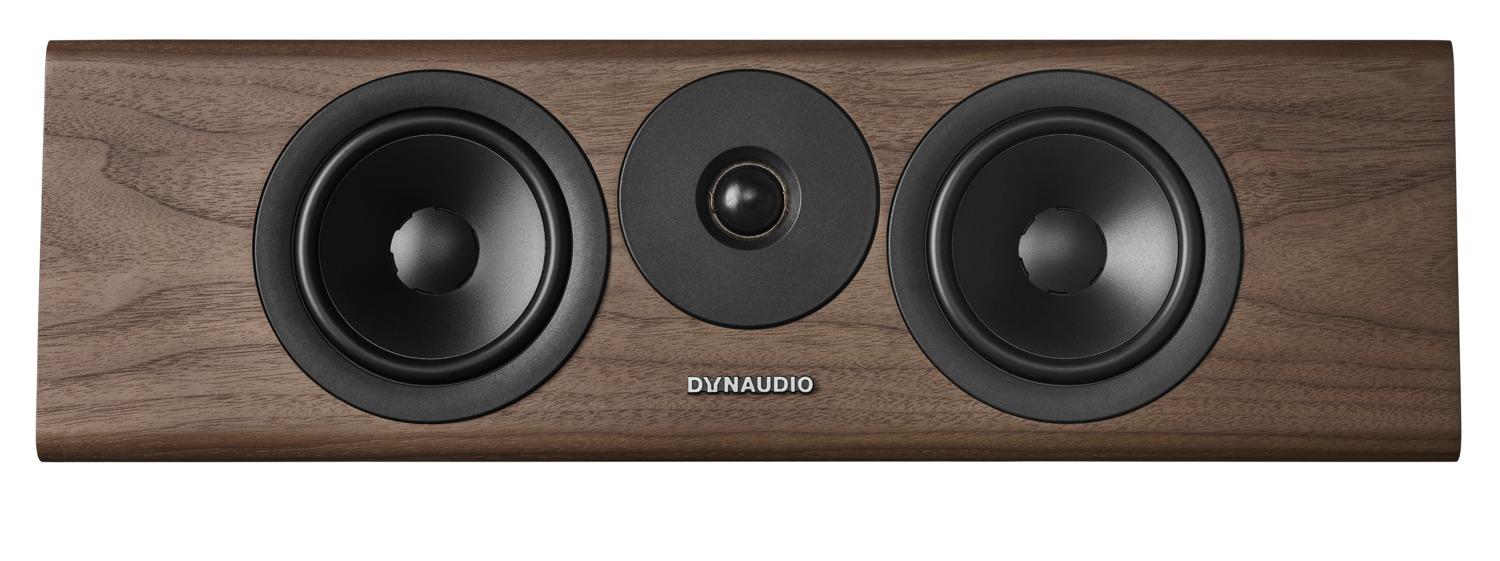

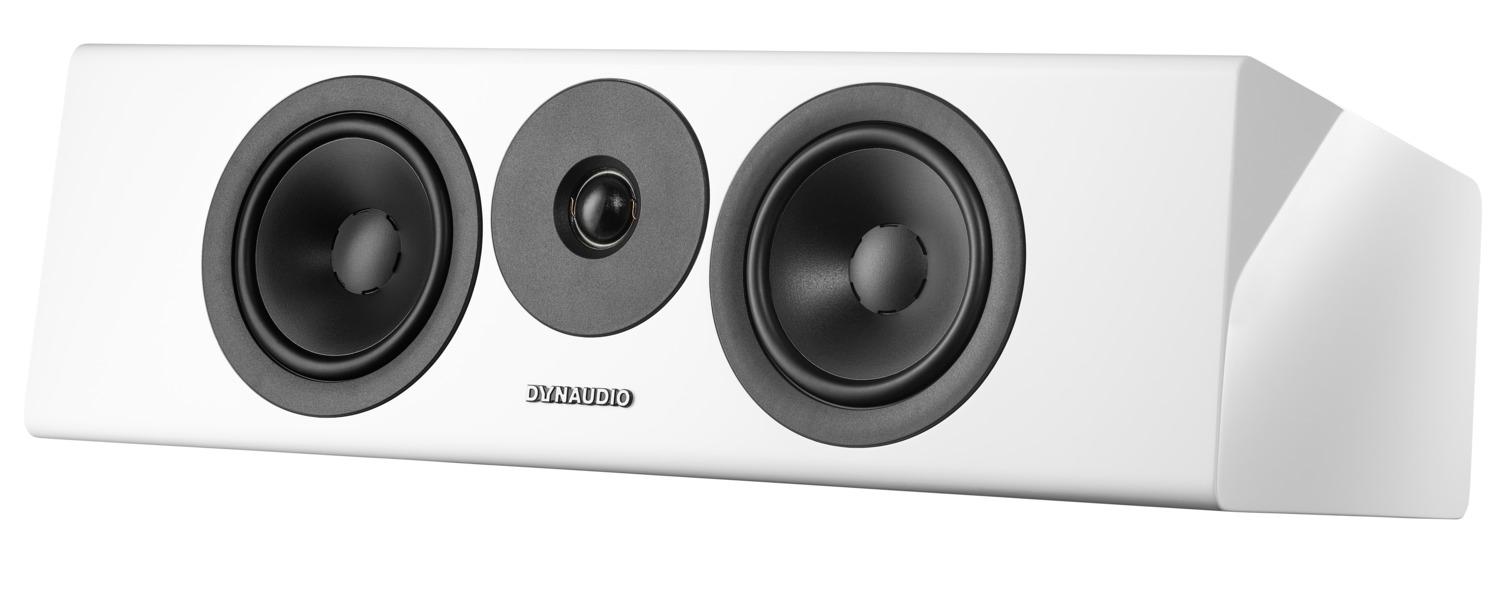

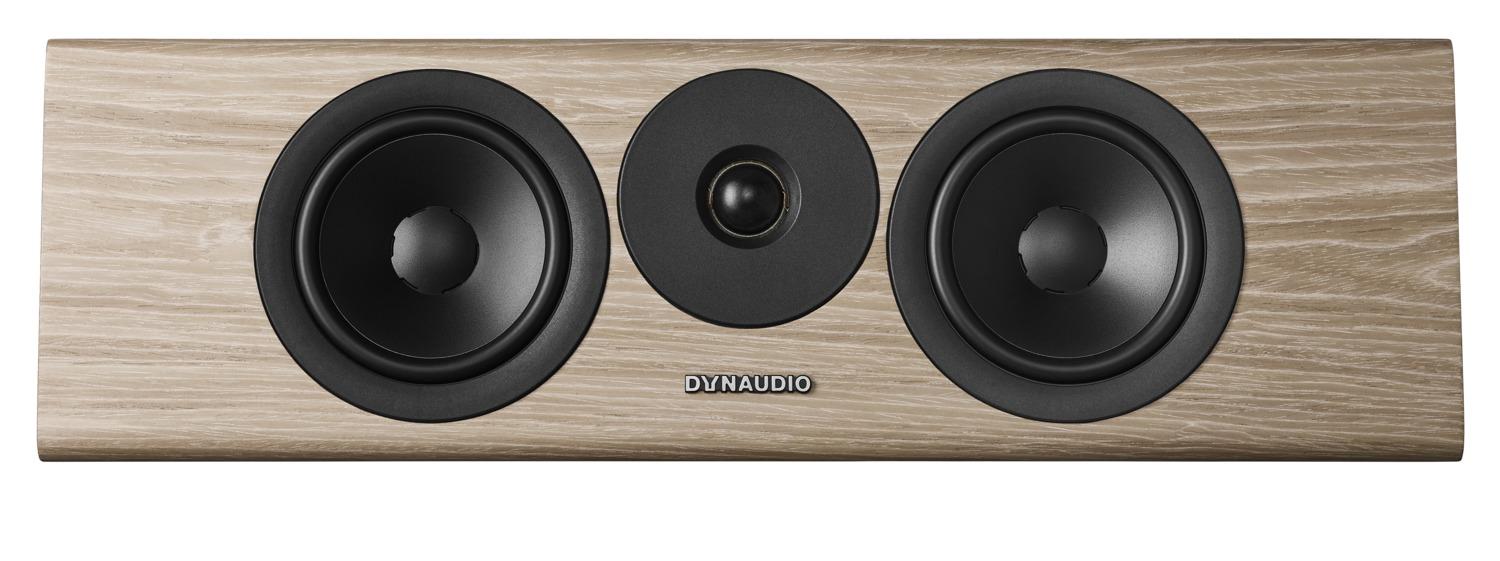

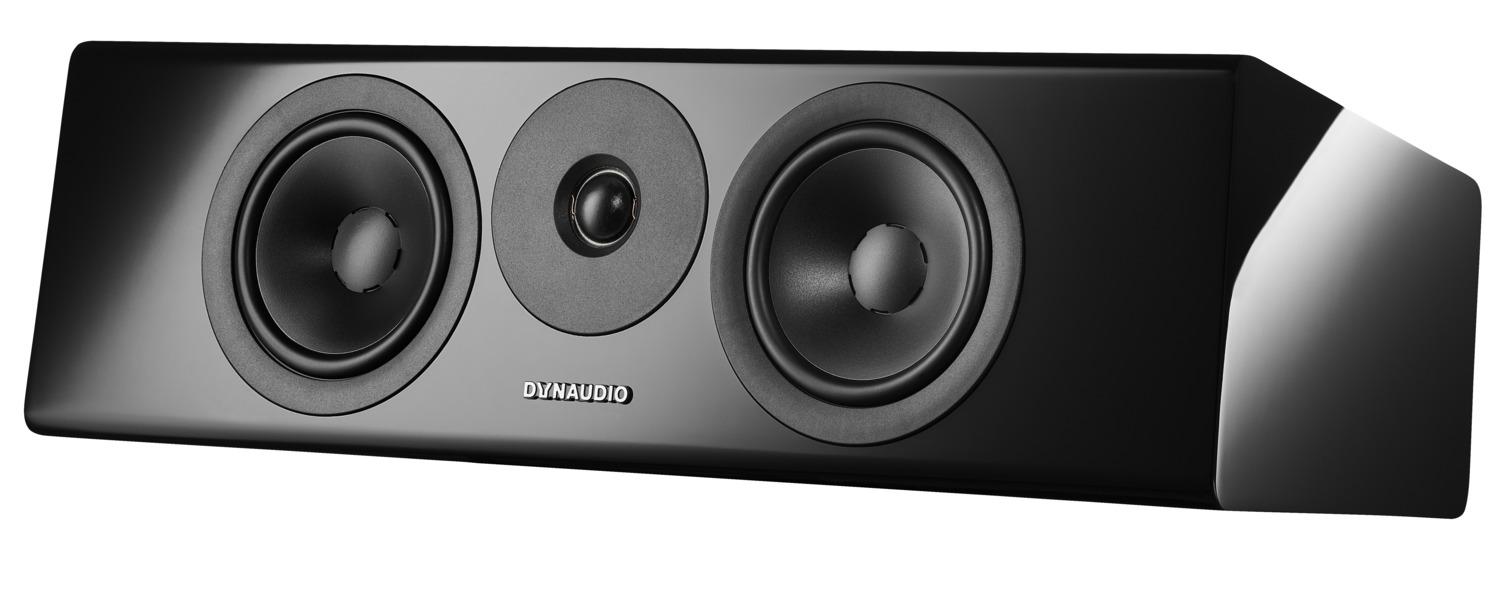

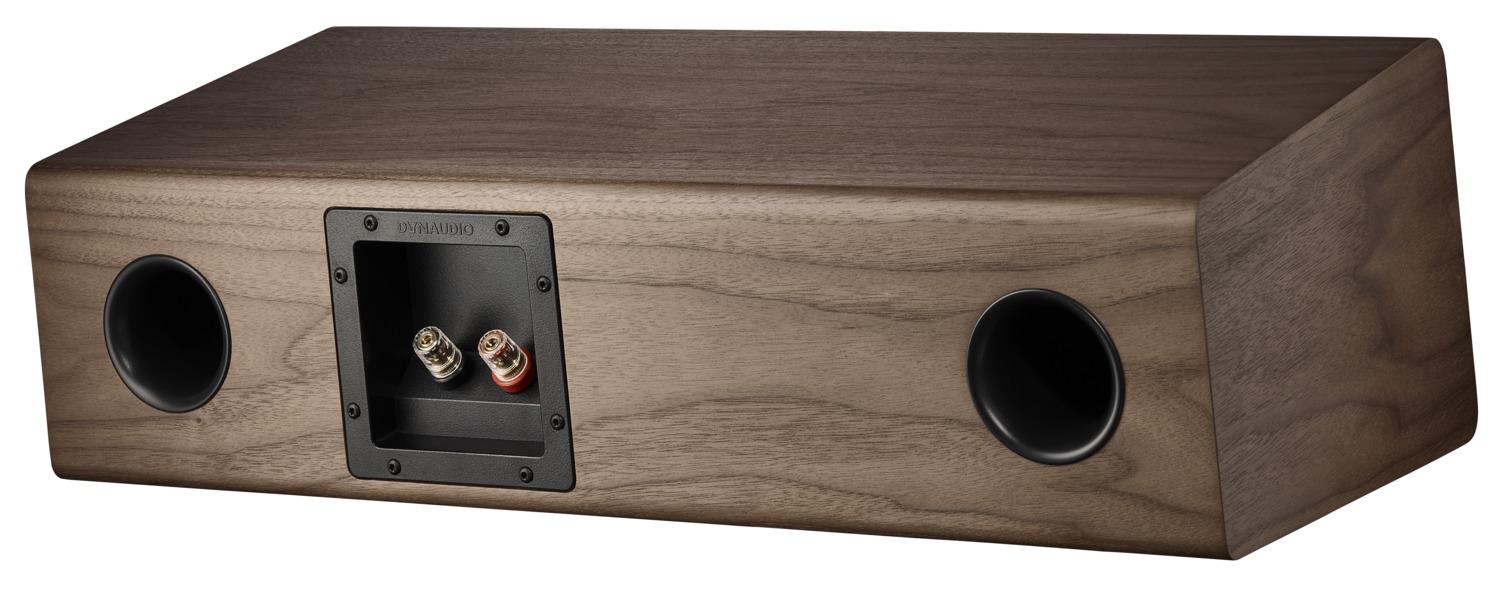

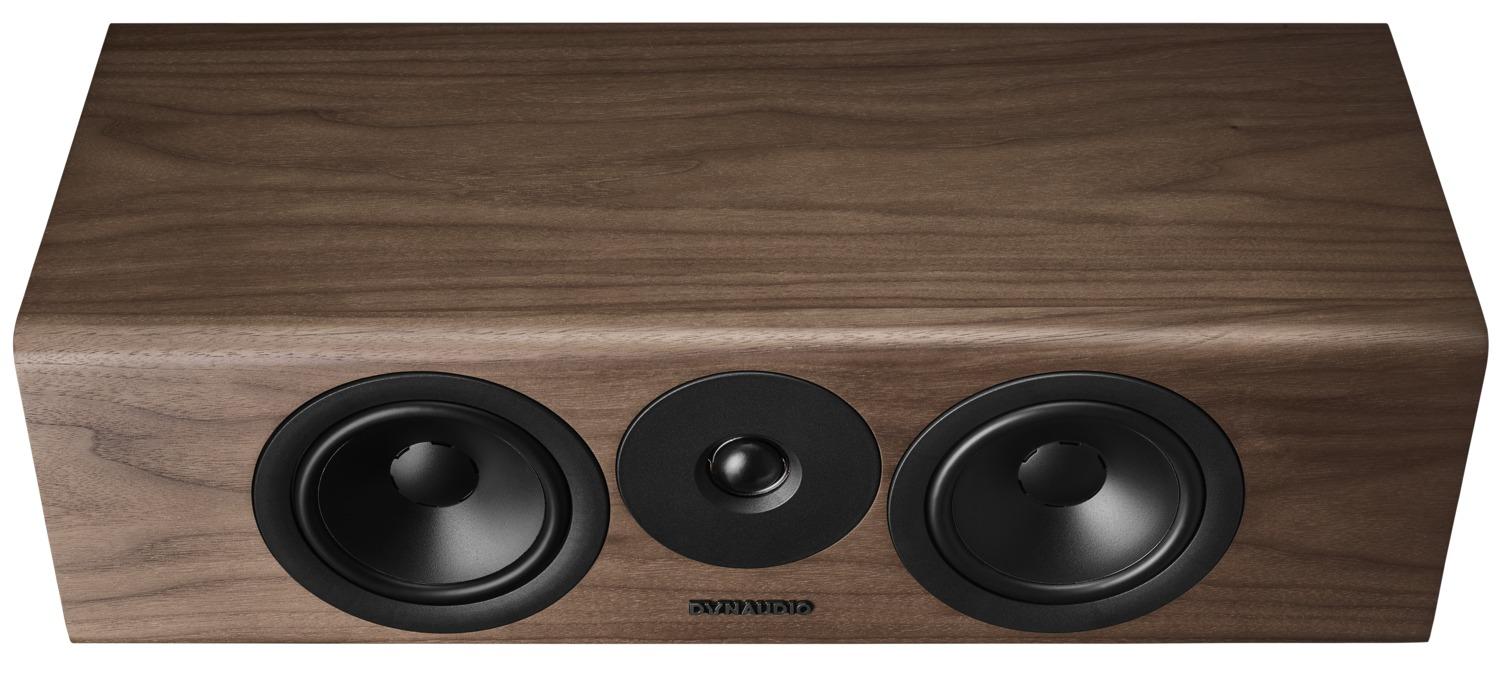

Viimeistelyt pianomusta, pianovalkoinen, vaalea puu ja pähkinä
Like the rest of the Evoke range, the tweeter is the original design Cerotar. It’s based on key technologies from our award-winning Esotar Forty anniversary tweeter, and the mighty Esotar3, which you’ll find in the top-of-the-line Confidence series.
Like all Dynaudio tweeters, it uses a precision-coated soft dome. This coating is applied in exactly the correct places and thicknesses to optimise high-frequency performance – it’s a process derived from our most exclusive speakers.
But that’s where the similarity to everything except Confidence ends. Hidden behind the dome is a part called the Hexis: a special inner dome that shapes airflow to smooth-out the frequency response and eliminate unwanted resonances that would affect high-frequency performance.
The Cerotar tweeter is powered by a strontium carbonate Ferrite+ ceramic magnet for increased sensitivity, improved detail resolution and a natural, dynamic response.
That’s all a posh way of saying “even if you’re watching one of those box-sets that lasts for nine hours, your ears won’t get tired”. Which, of course, is exactly as it should be.
Evoke 25C’s twin 14cm Esotec+ mid/bass drivers are made from MSP (Magnesium Silicate Polymer), a material we’ve been using for our woofer diaphragms since the dawn of Dynaudio. It provides exactly the right combination of lightness, stiffness and damping to balance the needs of precise bass performance with clear, detailed midrange.
Each speaker cone is crafted from a single piece of MSP. This makes them exactly the right amount of rigid – and means far less physical distortion when they’re playing. It also gives a super-solid physical connection to the glass-fibre voice-coil former on the back (it’s glued directly under the Balance Ribs you’ll see around the centre), which means more of the coil’s motion energy is transferred to the diaphragm.
The 38mm voice-coils themselves are made from aluminium, making them extremely light. That means we can use more windings. More windings gives us more control over the cone’s movement, which means more control over the sound – even at high volumes and high frequencies. That’s especially important in a centre speaker, which predominantly deals with speech – its midrange performance has to be absolutely top-notch.
The woofer motor is kept stable, centred and true by the aramid fibre spider (the circular spring assembly that stops the cone moving when it shouldn’t, and lets it move when it should), while the Contour-derived surround allows a longer throw ratio for greater punch. And, like the Cerotar tweeter, the woofers are both driven by ceramic Ferrite+ magnets for greater control, finesse and power.
In non-speaker-designer language, that means “you’ll hear your movie the way it was meant to be heard”. No rough edges, nothing standing out where it shouldn’t – and nothing relegated to a cameo when it should be the lead.
