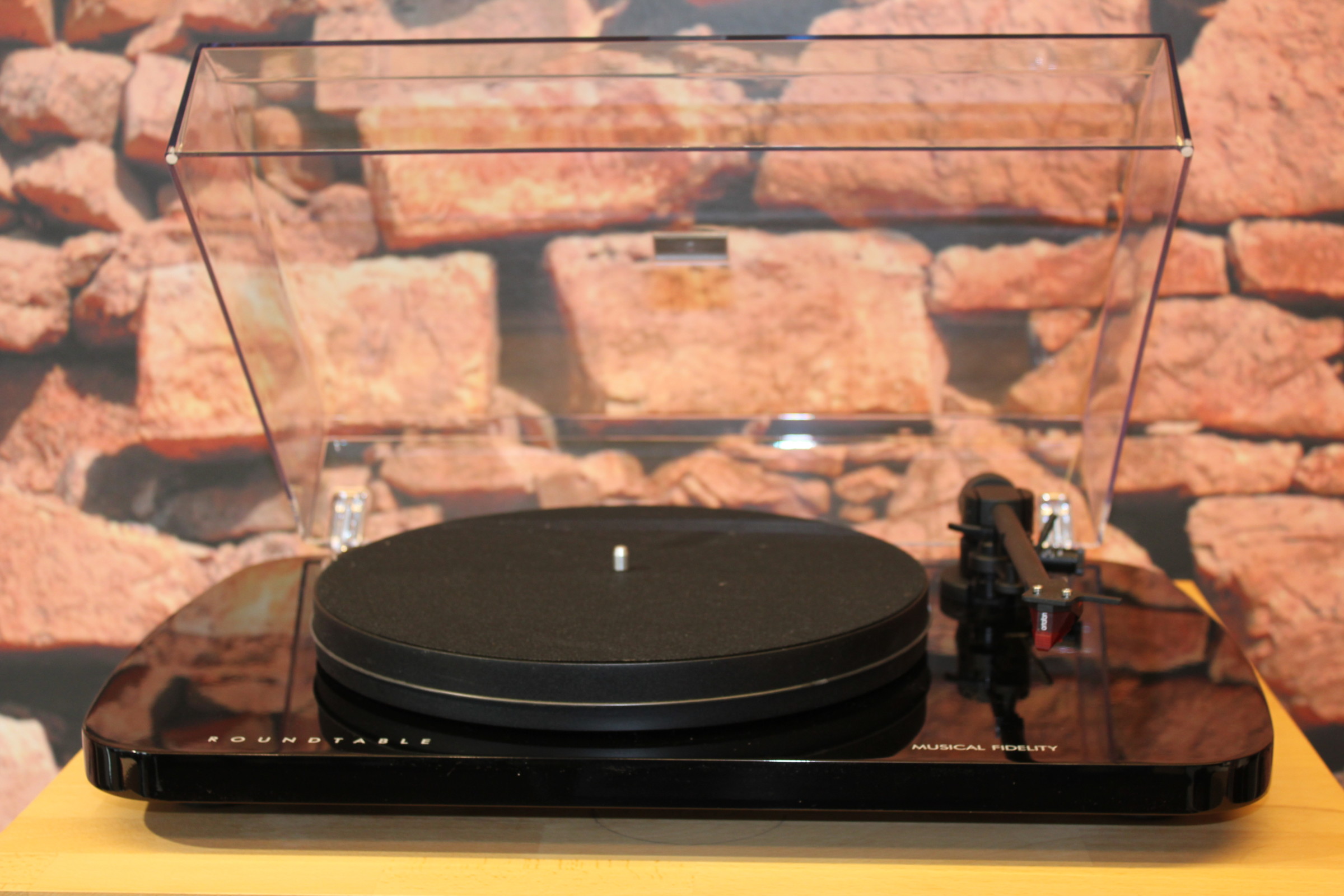

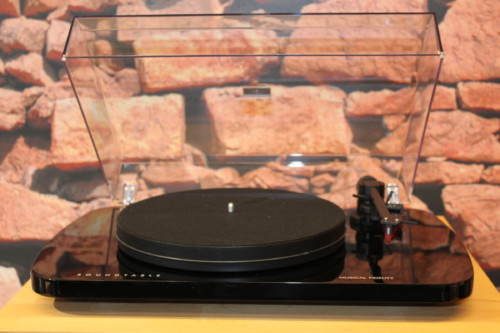

Roundtable S – Specifications

Performance

• Nominal speed 33/45 rpm, outside belt drive system, manual speed change
• Speed Variance 33rpm: ± 0.30 %, 45rpm: ± 0.20 %
• Wow and flutter 33rpm: ± 0.10%, 45rpm: ± 0.09%
• Signal to noise ratio Mechanical noise: – 39 dB
• Electrical noise: -65dB
• Downforce range 0 – 25 mN

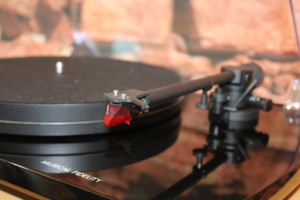

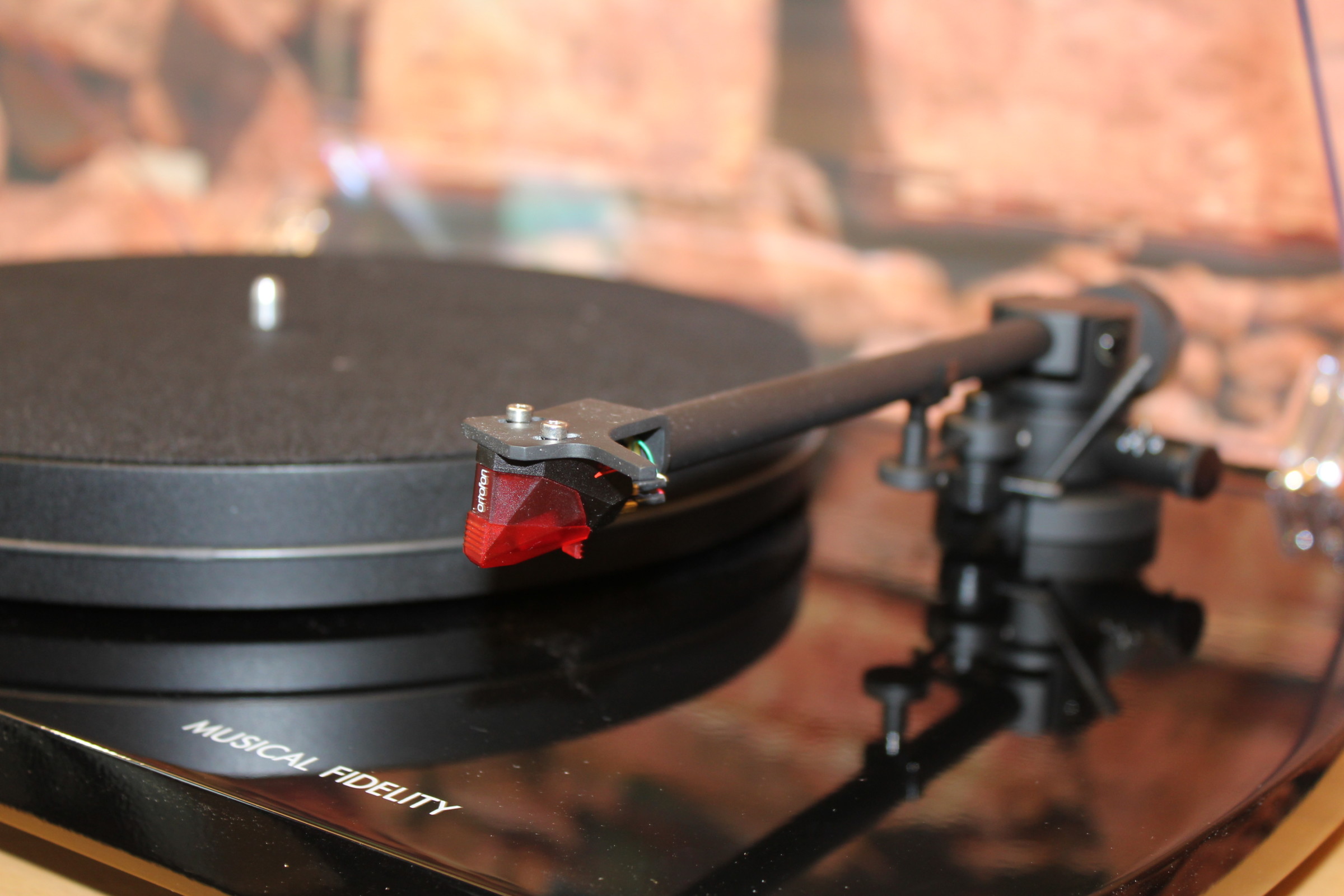

• Tonearm 9” straight shape massive aluminium construction
• Supplied counterweights no. 82, weight 114g (± 1g), for cartridges from 5 to 13g
• Effective tonearm mass 14g
• Effective tonearm length 230mm (tonearm mounting distance 212mm)
• Overhang 18mm

Power

• Power requirement 15V 0.8A (Adaptor supplied)
• Consumption >0.25 Watts standby 5 Watts maximum
• Adaptor mains voltage 110-240 V 50-60Hz

Weight

• Unit only, unboxed 6 kg (131/5 lbs)
• In shipping carton 8 kg (173/5 lbs)

Supplied Cartridge Ortofon 2M Red

• Cartridge type Moving Magnet
• Frequency Response 20 – 20.000 Hz + 3 / – 1 dB
• Channel Separation 22 dB at 1 kHz
• Channel Balance 1.5 dB
• Tracking Force 1.6 – 2.0g (1.8g recommended)
• Vertical Tracking Angle 20°
• Recommended Load Impedance 47,000 ohms
• Recommended Load Capacitance 150 – 300pF
• Output Voltage 5.5 mV (mV at 1 kHz, 5 cm/sec)
• Stylus Shape Elliptical
• Stylus Construction tipped Elliptical diamond
• Mount Half-inch
• Weight 7.2g
• Replacement Stylus 2M Red (exchangeable with 2M Blue and 2M Silver)

Dimensions

• Width 542 mm (23½”)
• Height (including feet) 100 mm (4”)
• Depth (front to back) Inc. terminals 342 mm (13½”)
